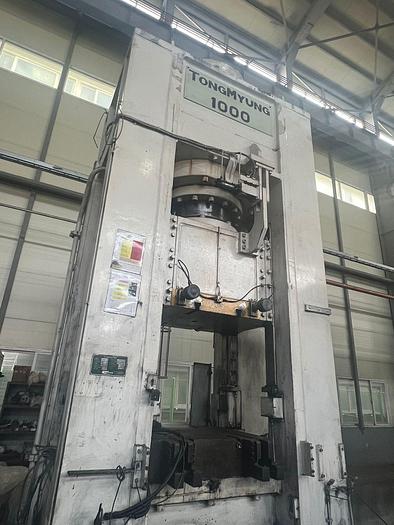

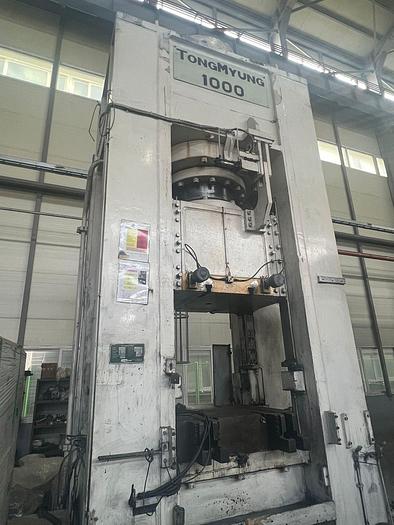

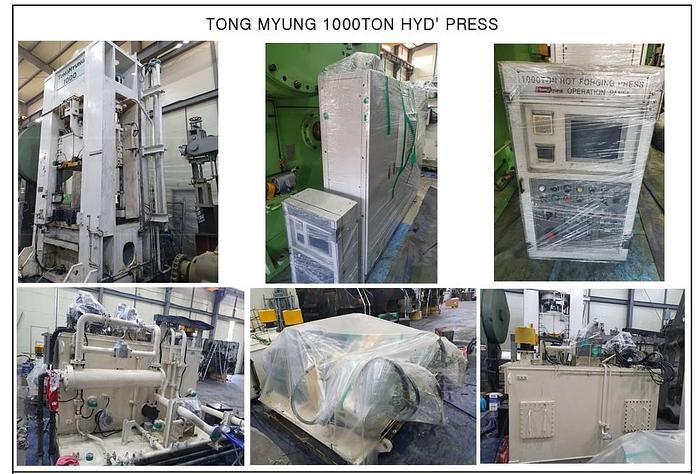

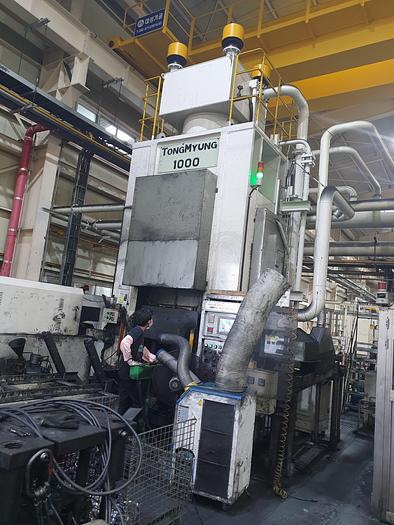

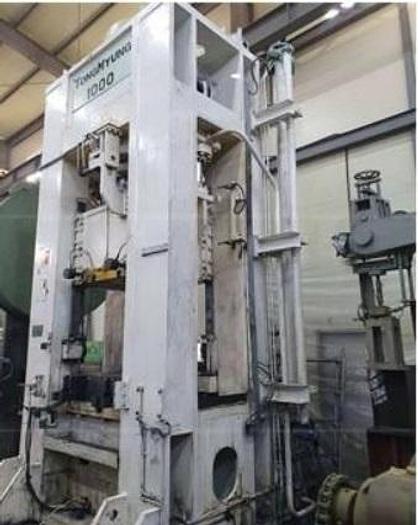

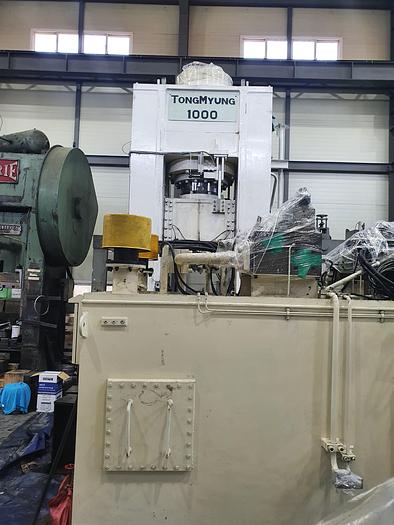

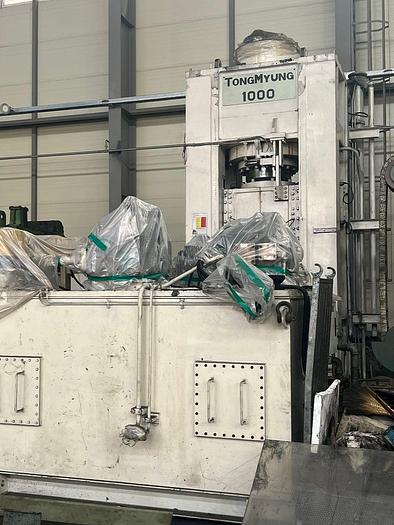

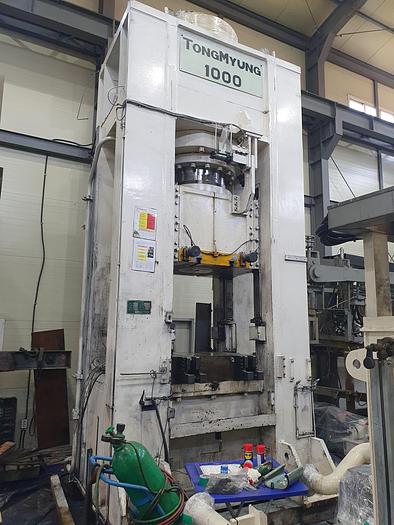

1000 tons Press Forging Hydraulic TongMyung
Specifications
| Manufacturer | TongMyung |
| Year | 2011 |
| Condition | New |
| Stock Number | MA2208 |

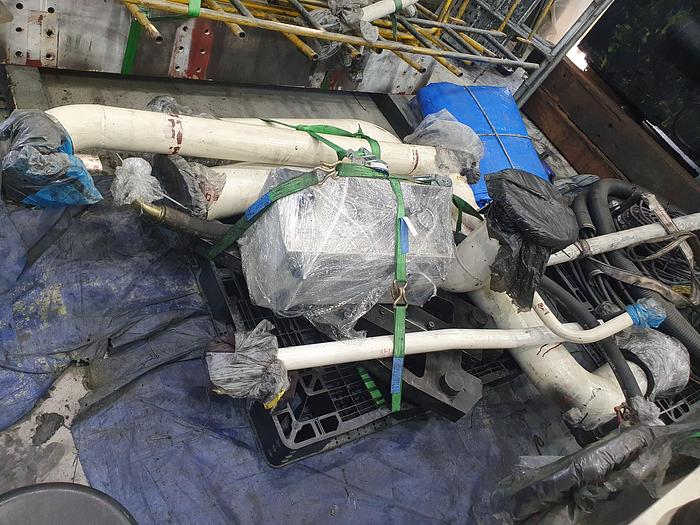

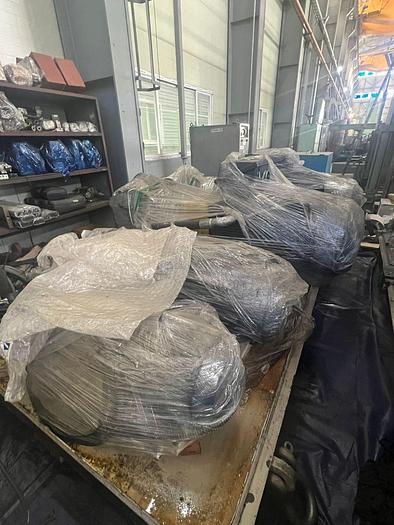

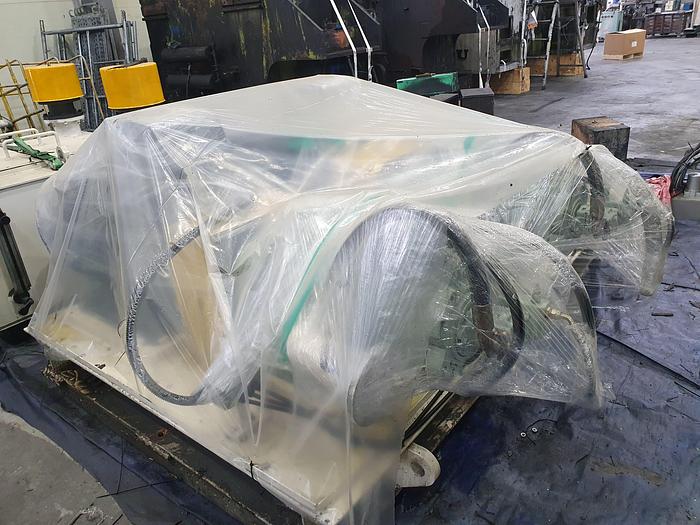

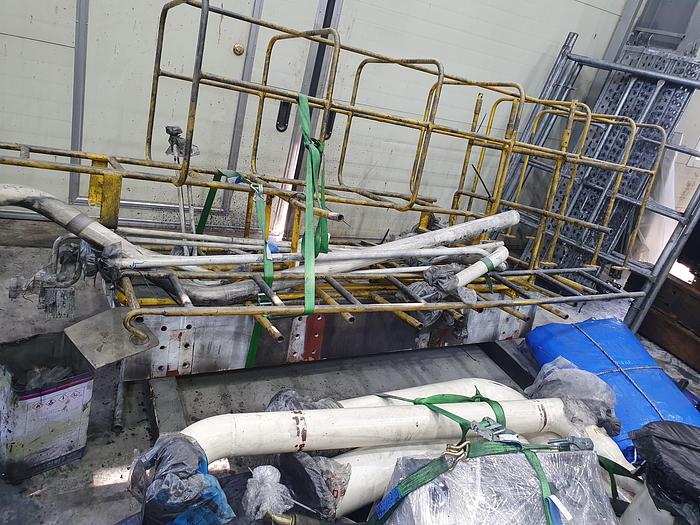

| Item condition | Good working condition, Disassembled |
| Capacity tons | 1000 |
Description
Aluminium Forging
Capacity : 1000 tons,
Slide stroke : 500 mm,
Slide die height : 1000 mm,
Slide increasing capacity : 50 tons,
Slide surface (LR x FR) : 1000 x 900 mm,

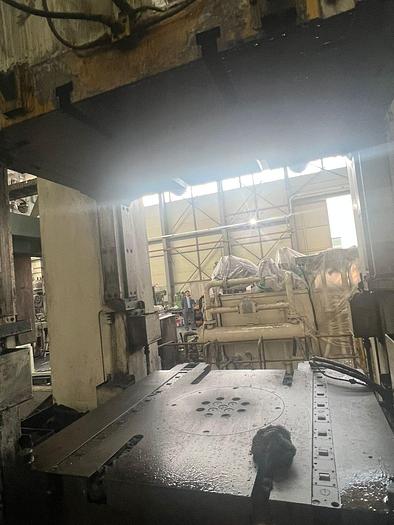

Bolster surface (LR x FR) : 1000 x 900 mm,
Bolster thickness : 250 mm,
Die cushion capacity : 100 tons,
Die cushion stroke : 100 mm,
Slide decent speed : 400 mm/sec,
Slide pressurization speed : 25-50 mm/sec (at 1000 tons-500 ton),
Slide rise speed : 350 - 400 mm/sec,

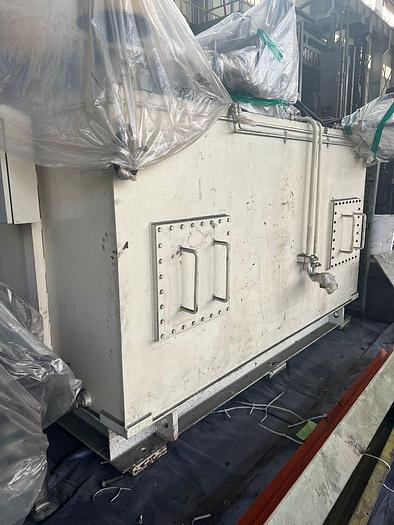

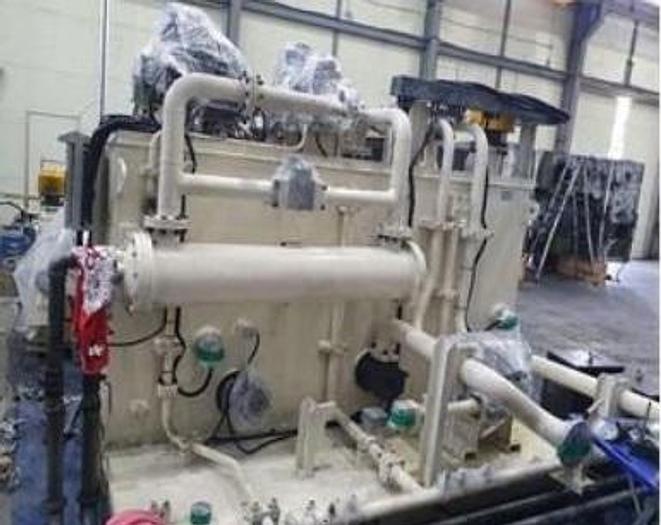

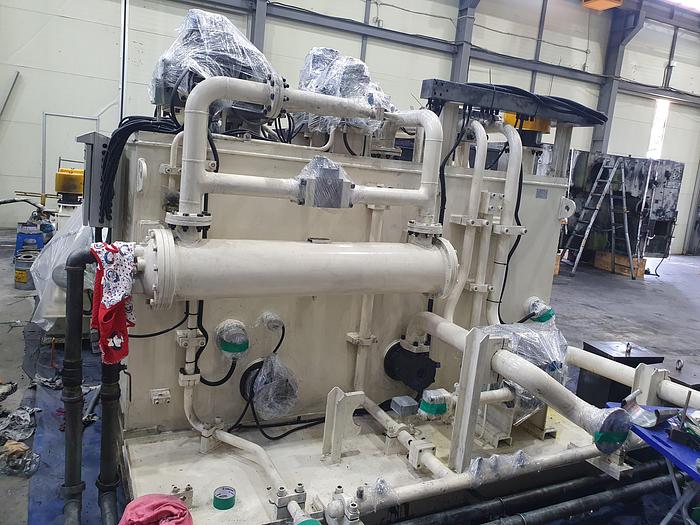

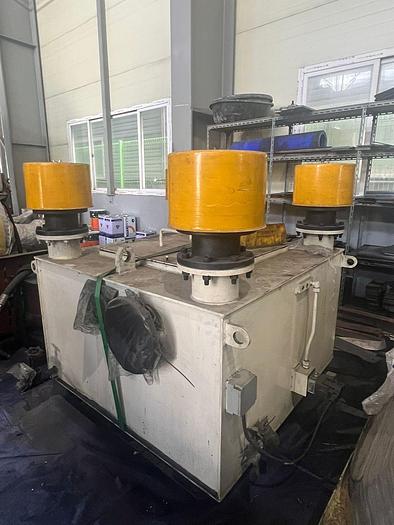

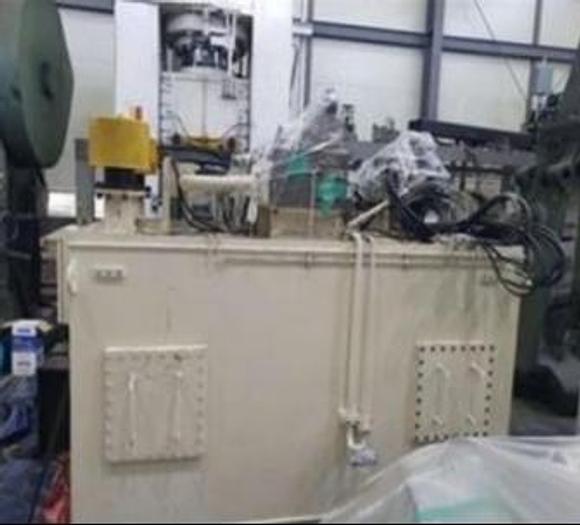

Hydraulic pump :
560 L/mim x 273 x 2 set,
146 L/min x 289K x 1 set,
37 L/min x 100K x 1 set,
Motor :
132 Kw x 6P x 2 set,
45 Kw x 4P x 1 set,
11 Kw x 4P x 1 set,
Capacity : Main 3700, PRE-FIL 400.
Technical manuals available, not completed.
