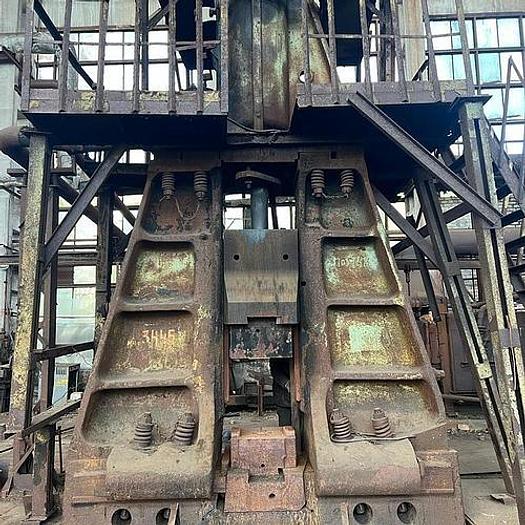

5 tons Hammer Forging Pneumatic Kramatorsk 17KP

Capacity : 5 tons,

Nominal weight of falling parts : 5000 Kg,

Actual mass of dropping parts without the Upper tool : 5080 kg,

Kinetic energy of the falling parts : 12500 kg min.,

Number of strikes per min: 50

Hammer stroke (max.) : 1300 mm,

Die block height (min.) : 400 mm,

Clear distance between guides : 700 mm,

Length of the hammer block (at direction, Perpendicular to hammer front) : 950 mm,

Length of the die holder (at direction, Perpendicular to hammer front) : 1180 mm,

Steam pressure before an admission to The cylinder : 7.. 9 atm,

Nominal weight of the upper tool : 500 kg,

Max weight of the upper tool : 1500 kg,

Max admitted temperature of steam : degr. C 200,

Overall dimensions of the hammer :

Length : 3700 mm,

Width : 2000 mm,

Height : 8770 mm,

Weight : 140 tons,

Anvil weight : 100 tons.

retrofit in 2008
