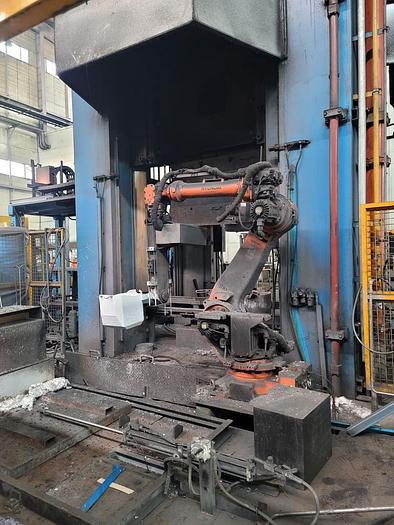

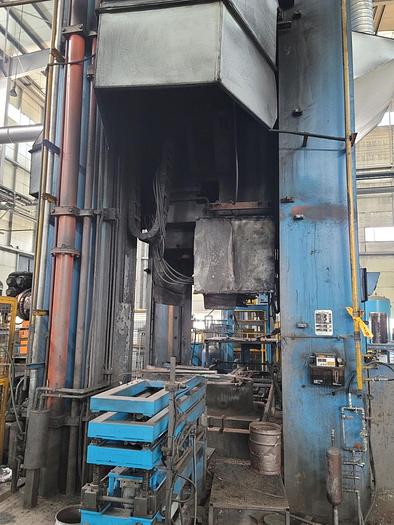

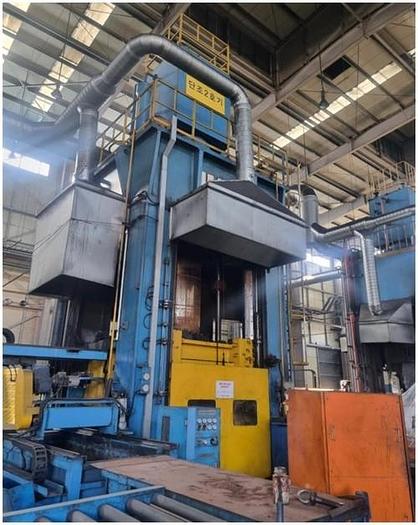

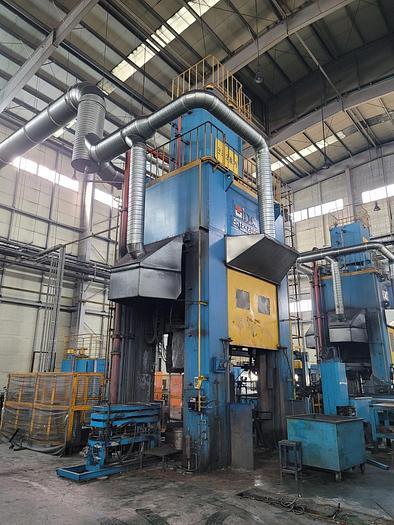

Press Forging Hydraulic HBE

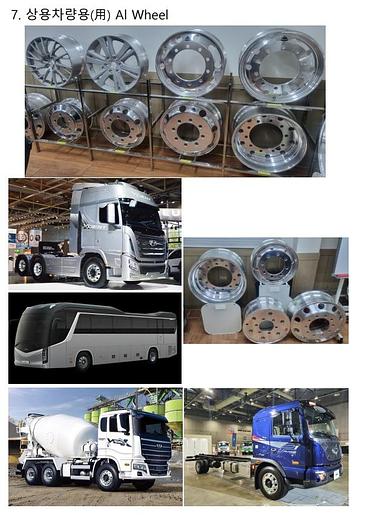

The Press used for Aluminum Wheel (Car) production line.

Capacity : 2500 tons,

Stroke : 1900 mm,

Daylight : 2400 mm,

Slide area : 1500 x 1500 mm,

Bolster area : 1500 x 1500 mm,

Down speed : 200 mm/sec

Pressing speed : 0.2 -1.7 mm/sec

Up speed : 200 mm/sec,

Main motor : 90 x4P KwxP,

Power : 380 V/220v x 60Hz,

Max pressure : 236 kg/cm2,

Upper ejector capacity : 26-42 tons,

Upper ejector stroke : 100 mm,

Upper ejector max. pressure : 210 kg/cm2

Bottom ejector capacity : 45-87 tons,

Bottom ejector stroke : 800 mm,

Bottom ejector max. pressure : 210 kg/cm2

Total 2 sets available for sale.

Condition : still on foundation, installed.

Composition : Crown, Base, Sliding Pad, Pile, Hydraulic Unit.

Available at extra cost the following equipment:

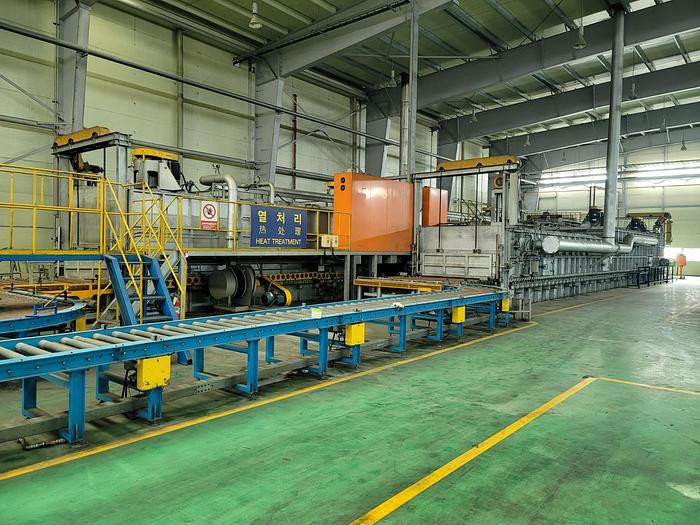

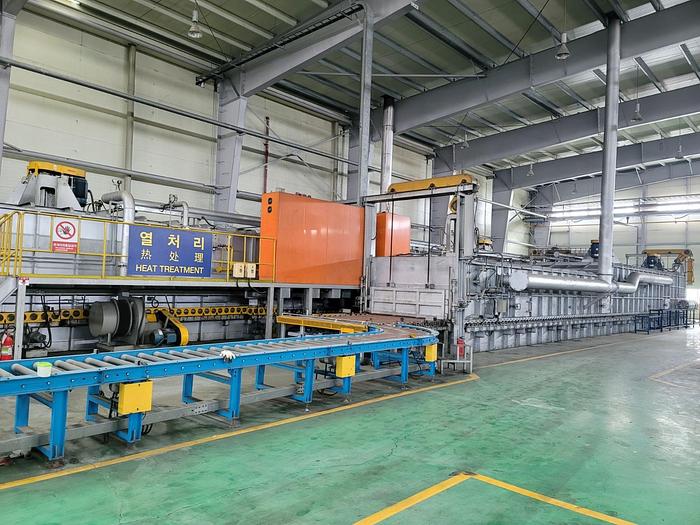

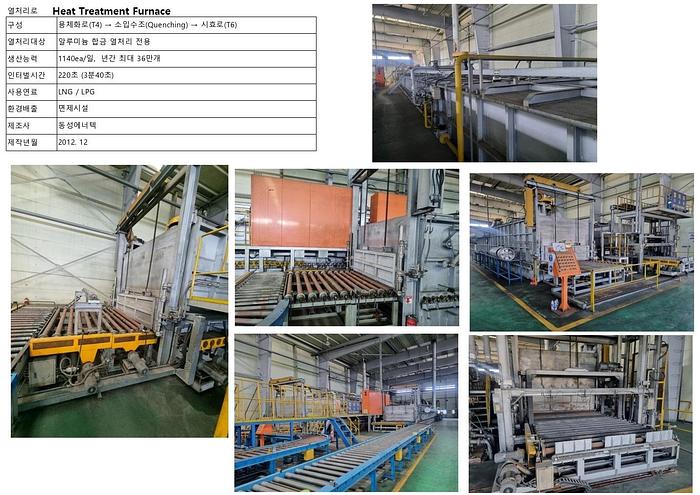

1) Heat treatment furnace

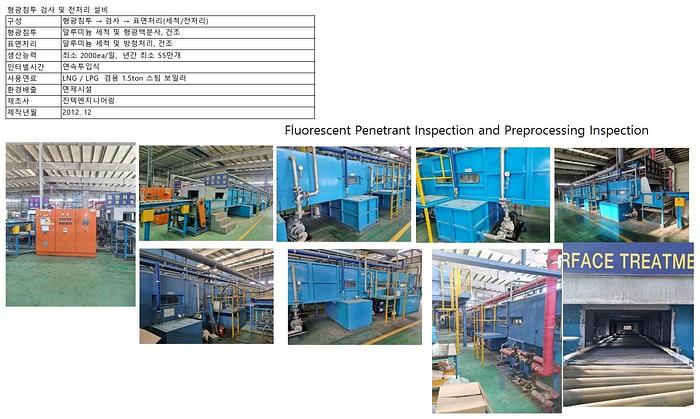

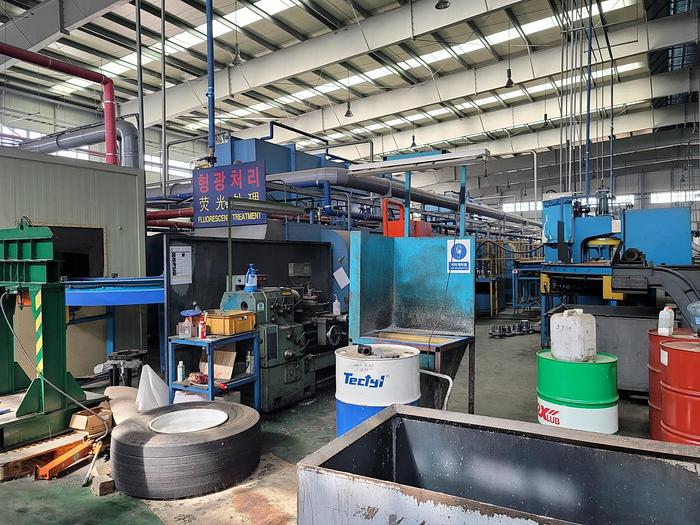

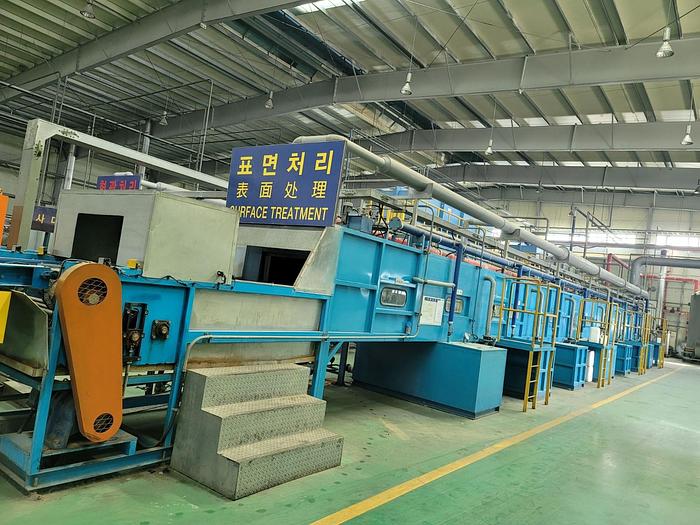

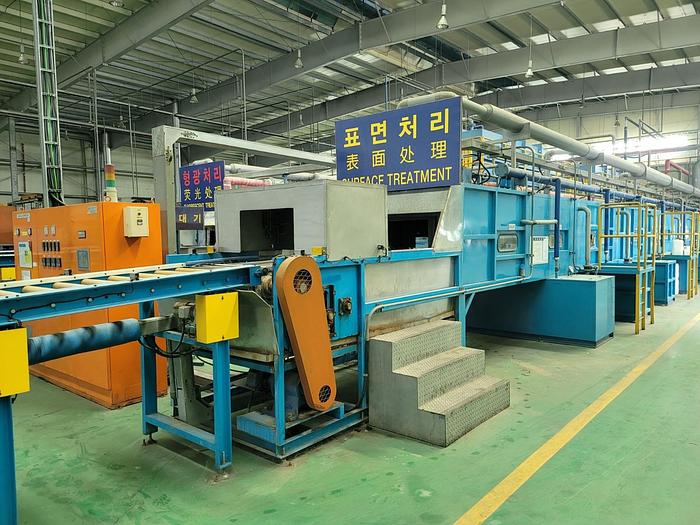

2) Fluorescent penetrant inspection and preprocessing inspection

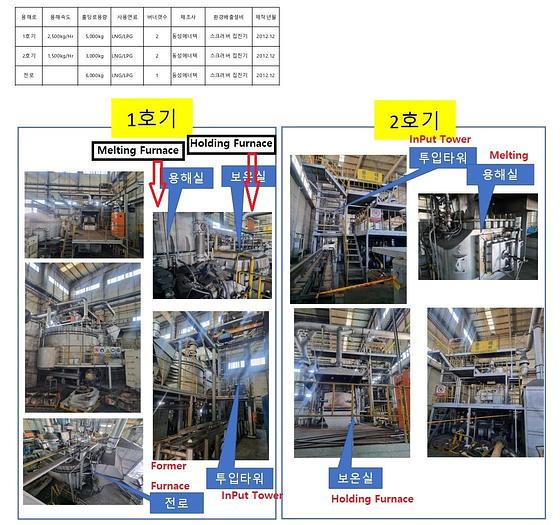

3) Melting furnace

4) Holding Furnace
