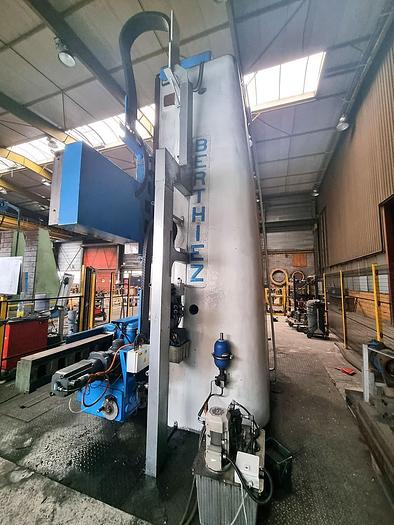

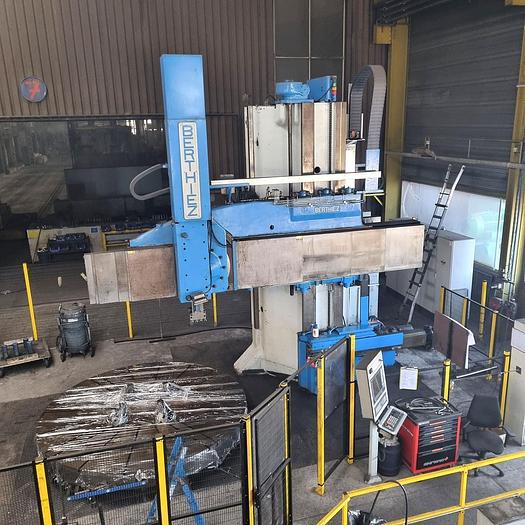

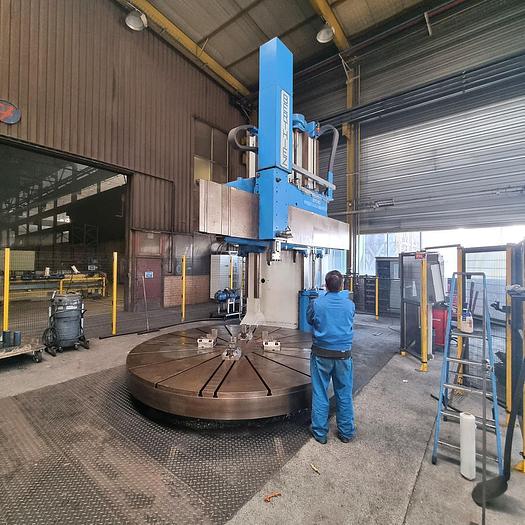

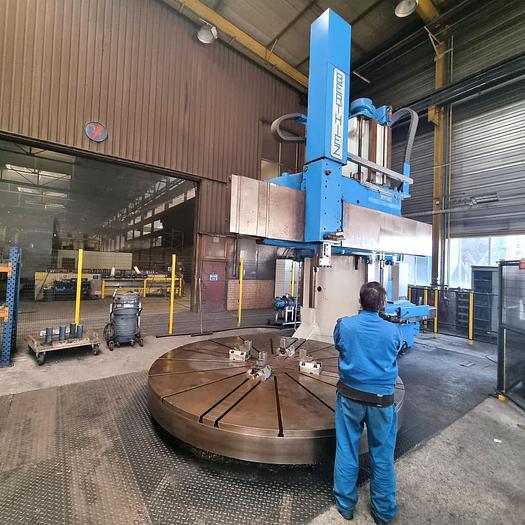

Berthiez Lathe Vertical Turning CNC

Chuck dia. : 3300 mm,

Max turning dia. : 6300 mm,

Power on the spindle : 75 kW,

Max height of workpiece Z-axis : 2600 mm,

Number of speeds : 13 / 36 / 100 rpm,

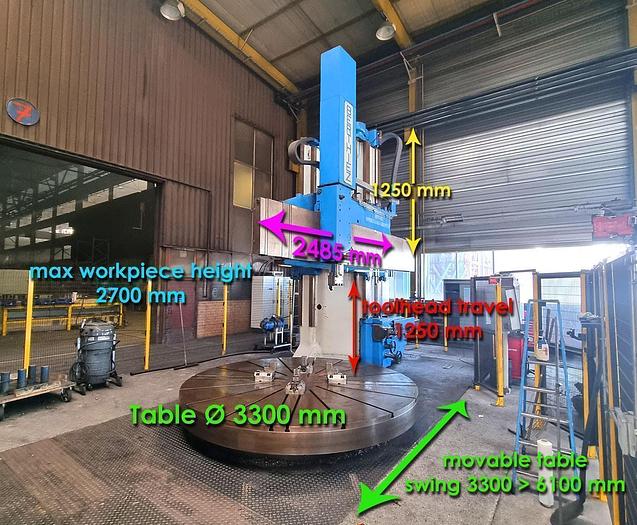

Max diameter to be turned to centre: 6100 mm

Max workpiece height under arm: 2700 mm

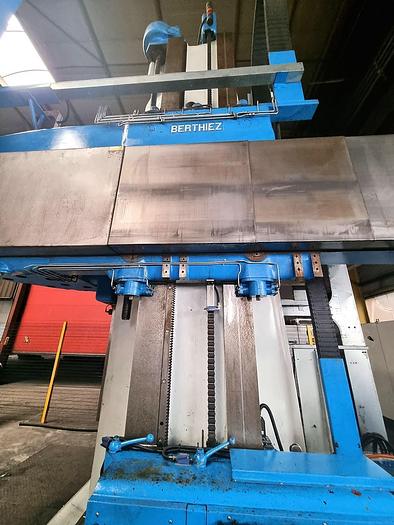

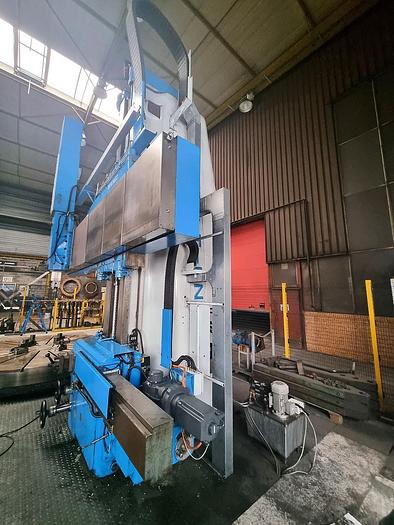

Vertical travel of ram: 2000 mm

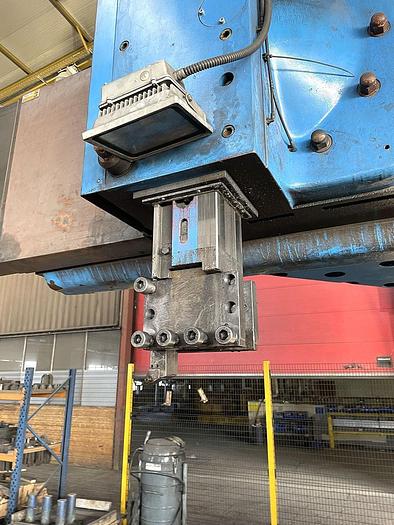

Vertical travel of tool head: 1250 mm

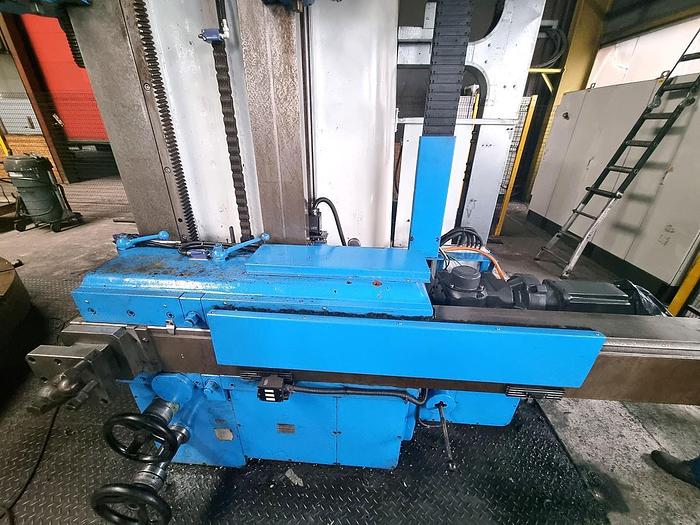

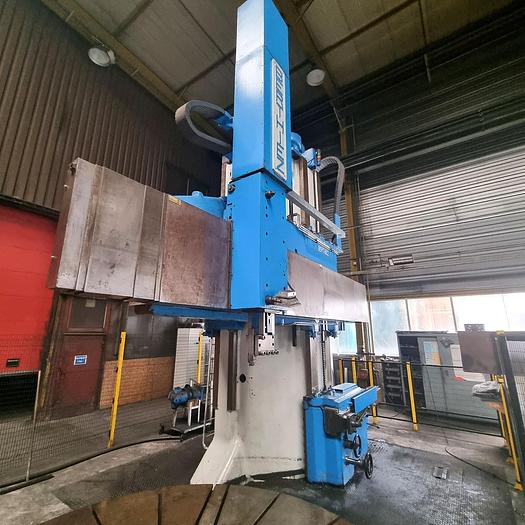

Horizontal travel of blue toolhead: 2485 mm

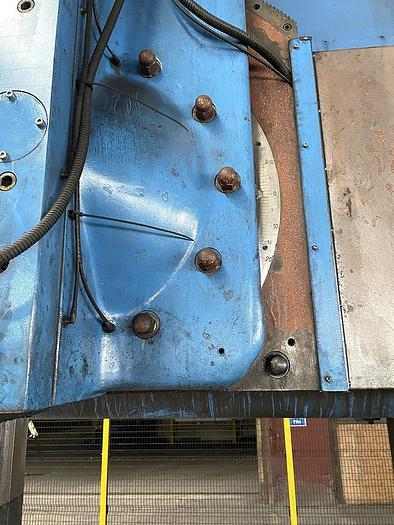

Swivelangle of tool head : 45° + 30°

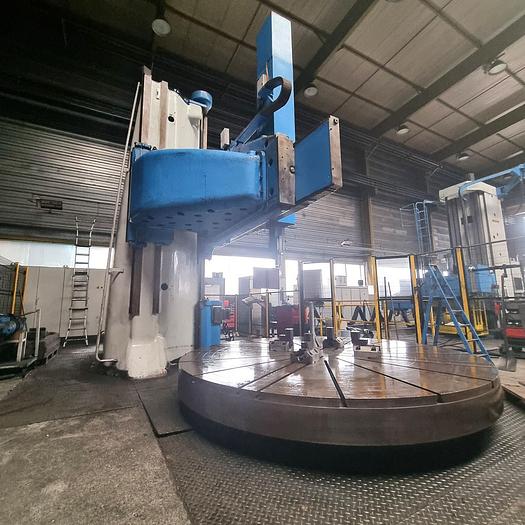

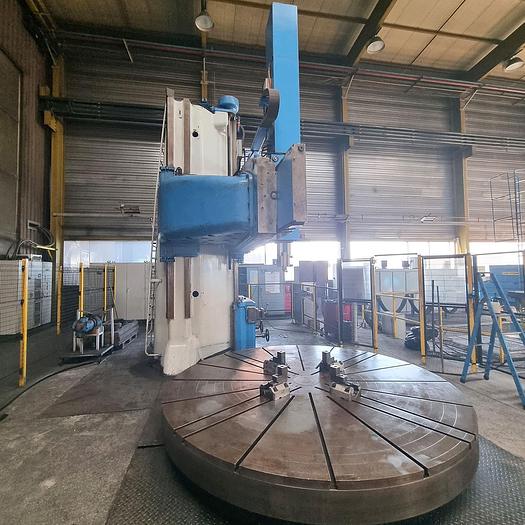

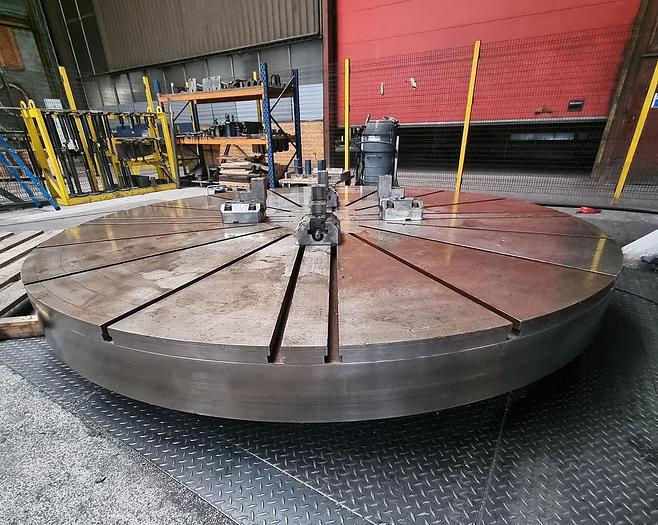

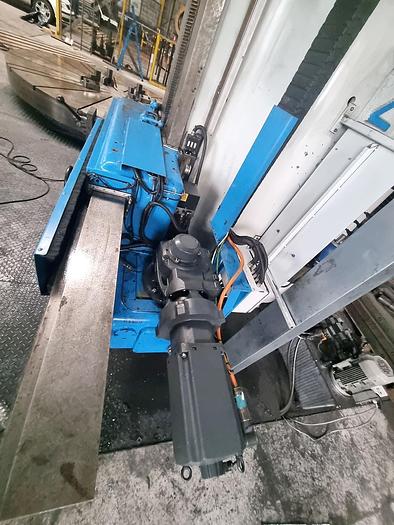

Turntable is movable in order to accommodate workpieces up to 6 meter in diameter,

3 variable speeds of table (CNC controlled): 1 > 13 rpm / 14 > 36 rpm / 37 > 100 rpm,

Max load on table: 50 tons

Power on table: 75 kW

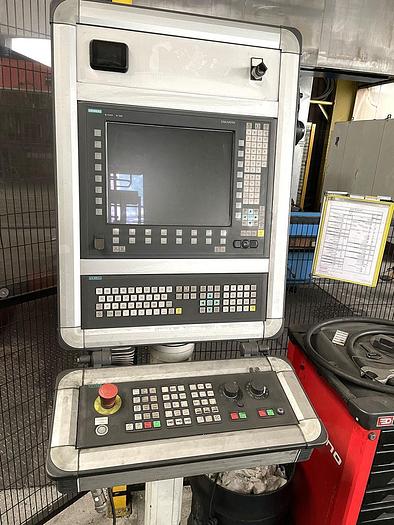

Command : Siemens 840D,

Weight : 93 tons,

Tooling : Yes

Positioning of the table is done by two buttons, once the correct position is reached the position can be nulled on the digital readout.

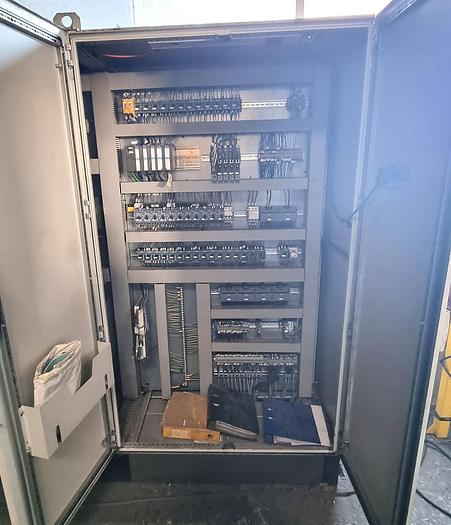

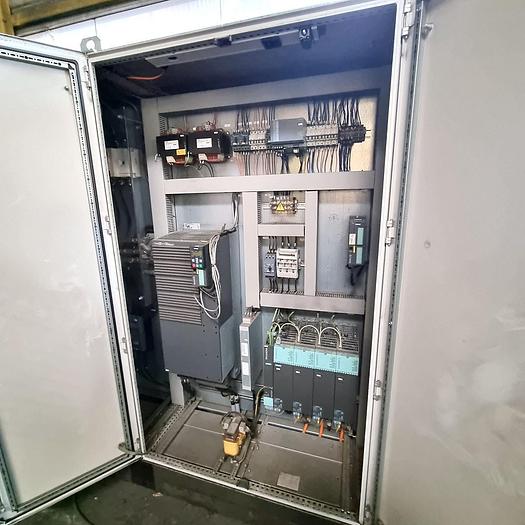

Retrofitted in 2017 with Siemens 840D.
