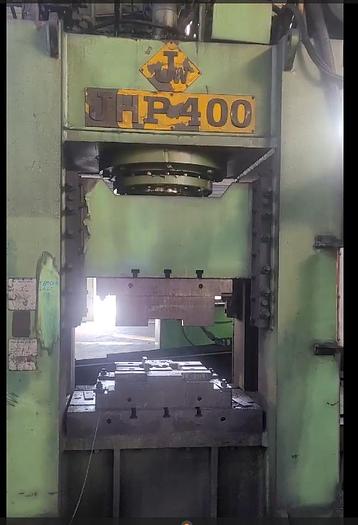

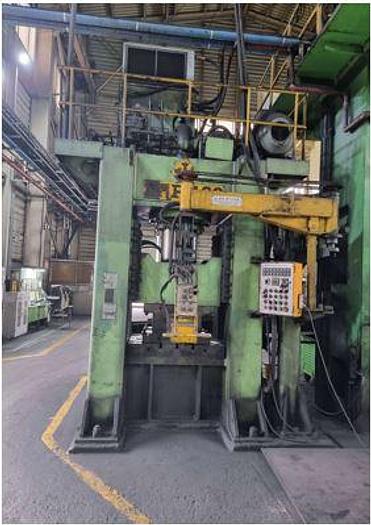

Hydraulic Coining Press Jaewoo
Sold
Specifications
Manufacturer | Jaewoo |
Model | JHP400 |
Year | 2003 |
Condition | Used |
Stock Number | MA2171 |
Item condition | Good condition |
Capacity tons | 400 |
Description
Capacity : 400 tons,
Slide stroke : 400 mm,
Slide open height : 900 mm,
Shut height : 450 mm,
Slide dimension (LR x FR) : 1160 x 700 mm,
Bolster dimension (LR x FR) : 1200 x 800 mm,
Bolster thickness : 150 mm,
Slide descending speed : 250 mm/sec,
Slide pressing speed : 30 mm/sec,
Slide ascending speed : 250 mm/sec,
Hyd pump :
K3VG180-100RS(KAWASAKI)
150T-94-L-RL-40,
Motor :
75Kw x 6P x 220V/440V x 1대
5.5Kw x 6P x 440V x 1대,
Total weight : 25 tons.
