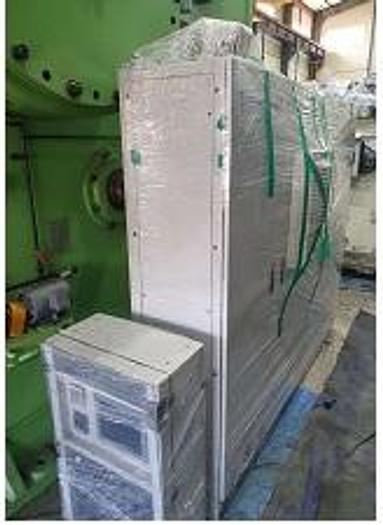

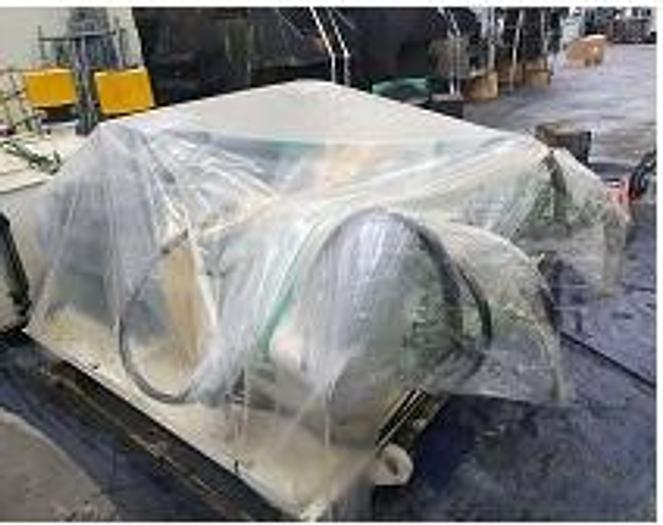

Press Forging Hydraulic Tong Myung

Sold

Specifications

ManufacturerAbe Seiki,Japan
Year2011
ConditionUsed
Stock NumberMA2167
Item conditionGood condition
Capacity tons1000

Description

Capacity : 1000 tons,

Slide stroke : 500 mm,

Die height : 1000 mm,

Slide ascending power : 50 tons,

Slide dimension (LR x FR) : 1000 x 900 mm,

Bolster dimension (LR x FR) : 1000 x 900 mm,

Bolster thickness : 250 mm,

Die cushion power : 100 tons,

Die cushion stroke : 100 mm,

Slide descending speed : 400 mm/sec,

Slide pressing speed : 25 ~ 50 mm/sec (at 1000ton ~ 500ton),

Slide ascending speed : 350 ~ 400 mm/sec,

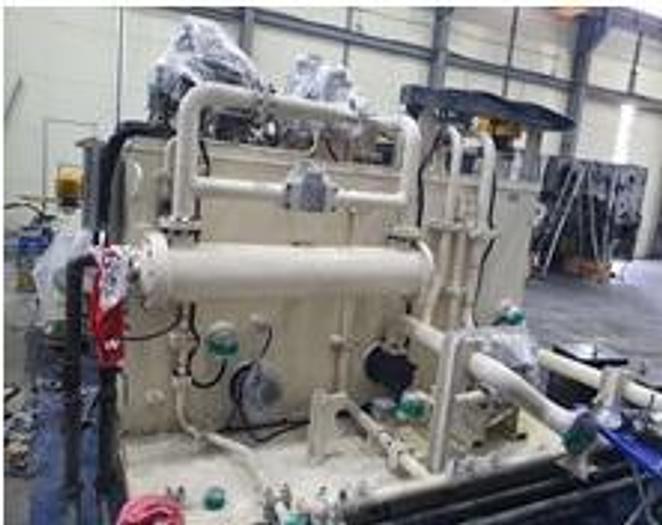

Hyd pump :

-560L/min x 273K x 2ea,

-146L/min x 289K x 1ea,

-37L/min x 100K x 1ea,

Motor :

-132Kw x 6P x 440V x 2ea,

-45Kw x 4P x 440V x 1ea,

-11Kw x 4P x 440V x 1ea

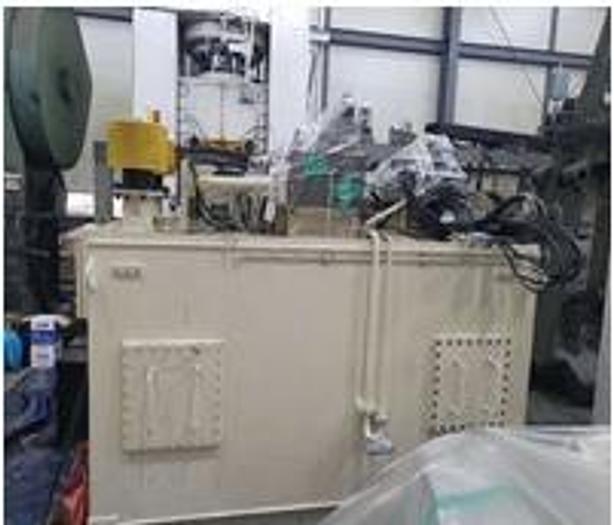

Oil tank (Liter) : MAIN 3700, PRE-FIL 400.
