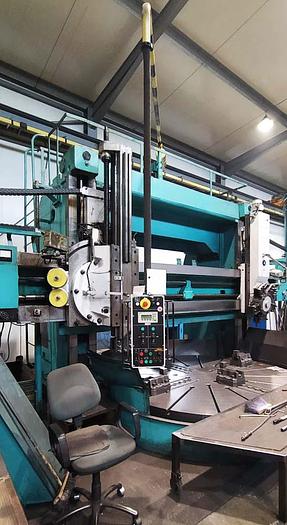

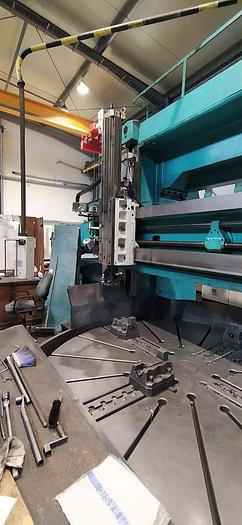

Lathe Vertical Turning Stanko-sedin 1L532

Max. turning diameter : 3200 mm,

Clamping diameter of rotary table : 2800 mm,

Faceplate speed : 1.25- 63 rpm,

Number of speeds : 18,

Max. load of table : 16 tons,

Max. workpiece height : 1600 mm,

Distance between faceplate and vertical supports : 0 to 1780 mm,

Distance between faceplate and down part of the cross- beam : 400 to 1640 mm,

Max. horizontal movement of the vertical supports : 1720 mm,

Ram travel (Z) : 1200 mm,

Max. angle of the vertical supports' turn without revolver head : +-30 degrees

Main electrical motor- 55 kW, three- phase, 380 V,

Supports- 2 vertical,

5-position turret head,

Machine weight : 43 tons,

Machine dimensions : 5490 x 6520 x 5100 mm,

General overhaul 2011,

DRO- JENIX and Siemens SIMATIC Panel.
