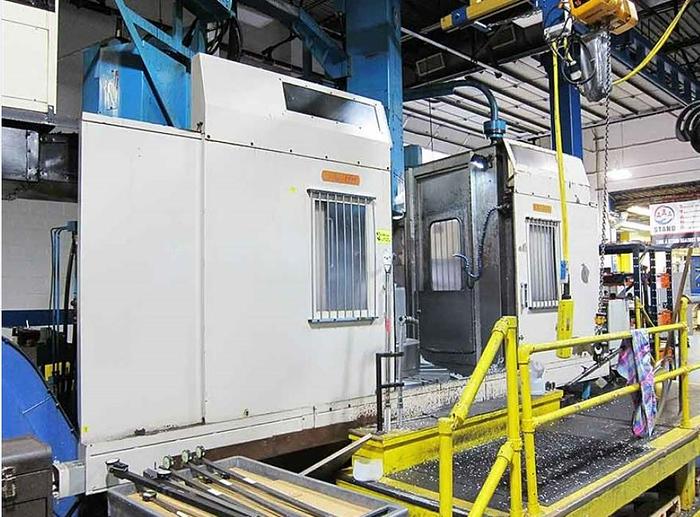

Lathe Vertical Turning CNC O-M Ltd VT5-16N

Price

Contact us for price

orCall +919920651051

Specifications

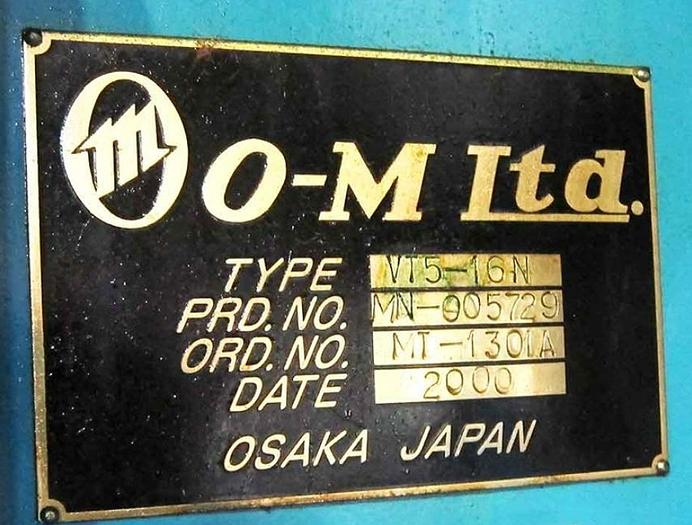

ManufacturerO-M Ltd
ModelVT5-16N
Year2000
ConditionNew
Stock NumberMA2144
Item conditionGood condition

Description

VTL, 78.7" swing, w/Fanuc 18T ctrls & 16-Pos Tool Changer

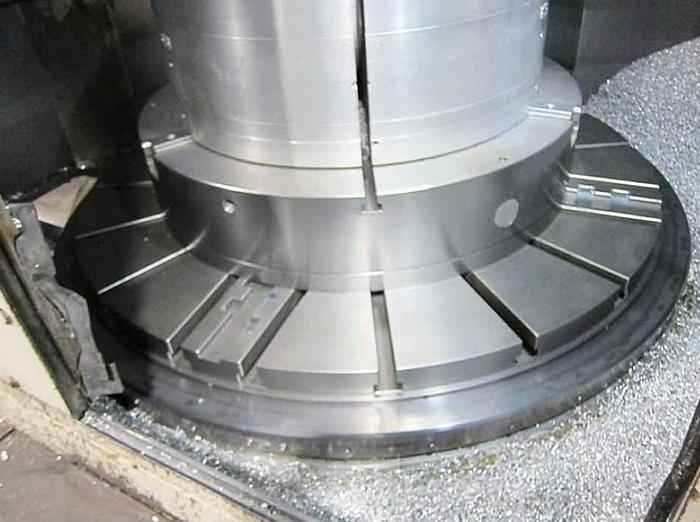

Table dia : 1600 mm,

Swing : 1999 mm,

Height : 1600 mm,

Table load : 9979 kgs,

Table speeds : 1.6 ~ 250 rpm,

 Main motor power : 56 kW,

Number of ATC Stations16

Floor space F-to-B : 4293 mm,

Floor space L-to-R : 5207 mm,

Height above the floor : 5436 mm,

Approx machine weight : 19 tons.

Type CNC VTL.

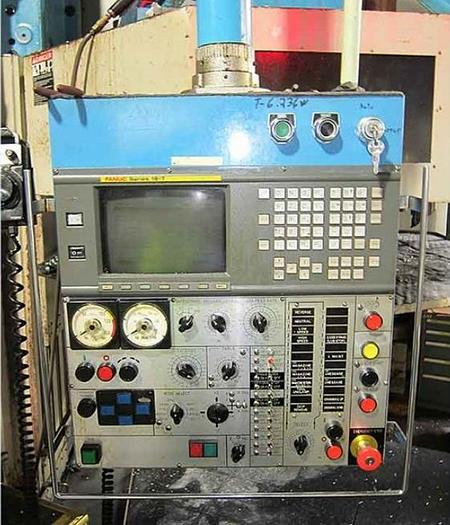

Control : FANUC 18T.


Equipped With:

Side Discharge Chip Conveyor,

All Available Work Holders Installed & Included,

48" Extra Height 3-jaw Chuck,

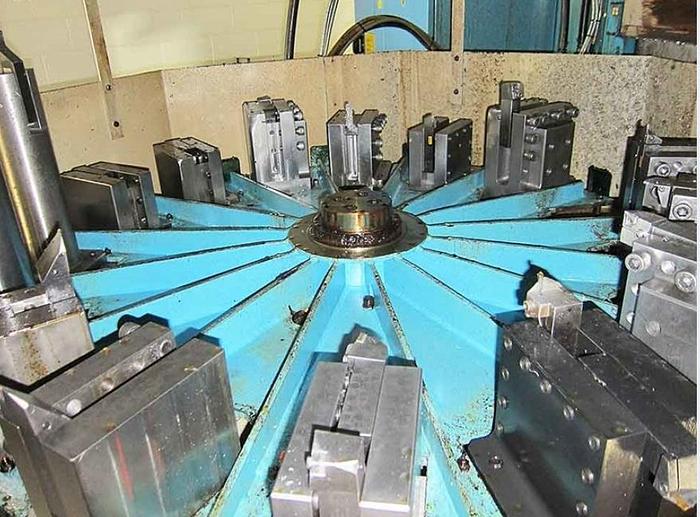

All Avaialble O-M Propietary Tool Holders in ATC Photos,

All Available Hard & Soft Jaws With Machine,

Multitap Transformer,

Flood Coolant System,

Mist Collector.
