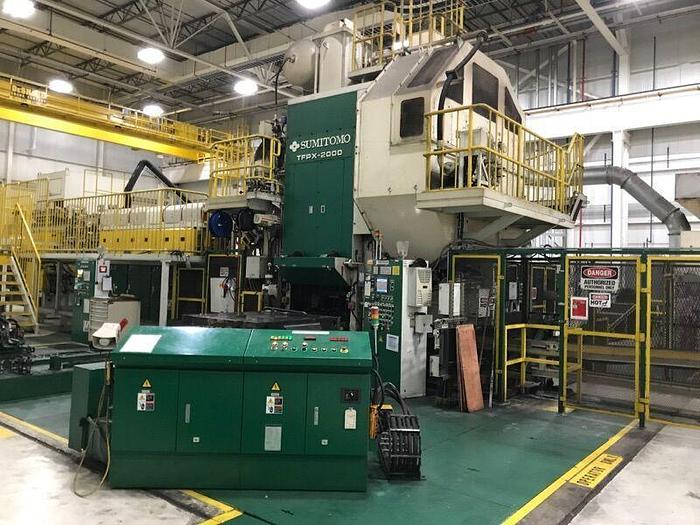

2000 tons Hot Forging Line Sumitomo TFPX-2000
Specifications
| Manufacturer | Sumitomo |
| Model | TFPX-2000 |
| Year | 2006 |
| Condition | Used |
| Stock Number | MA2139 |
| Item condition | Good working condition |
| Capacity tons | 2000 |
Description

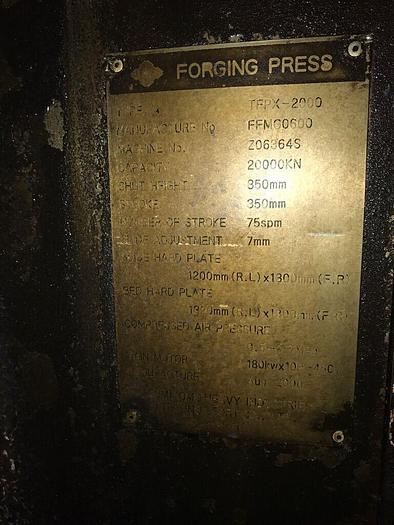

Capacity : 2000 tons,
Stroke : 350 mm,
Strokes per min : 75,
Shut height : 850 mm,
Slide Adjustment : 7 mm,
Ram size (LR x FB) : 1200 x 1300 mm,
Bed size (LR x FB) : 1320 x 1300 mm,
Bed LR : 2300 mm,
Bed FB : 2100 mm,

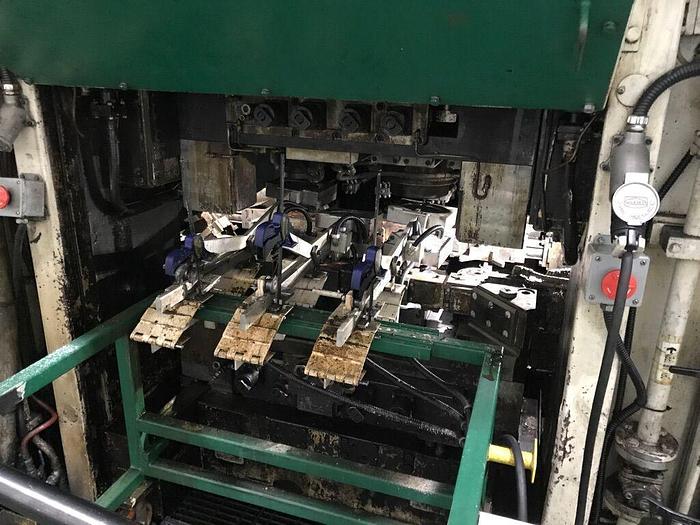

4 stage transfer system
Slide knockout Bottom knockout
Scrap System

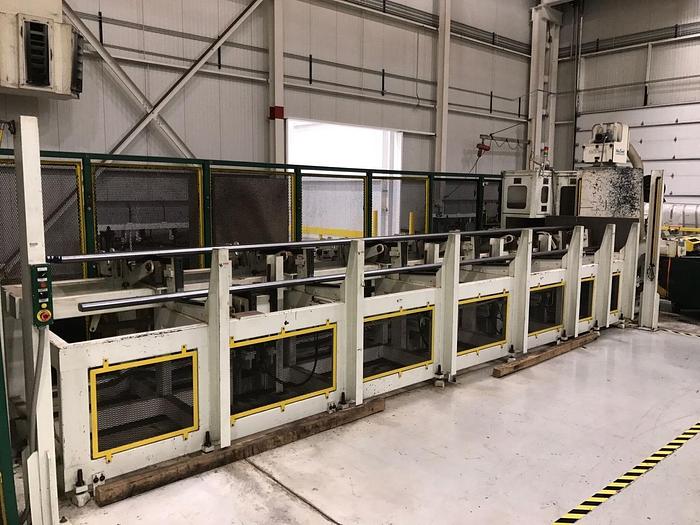

1300 °C induction heating line Bar Bundle Rack Billet Cold Saw Good Condition
Double Conrod Design
Equipped With:

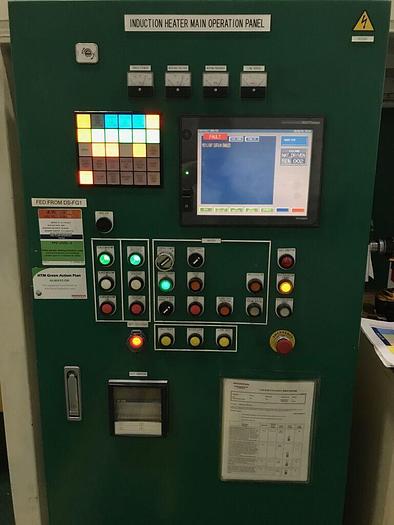

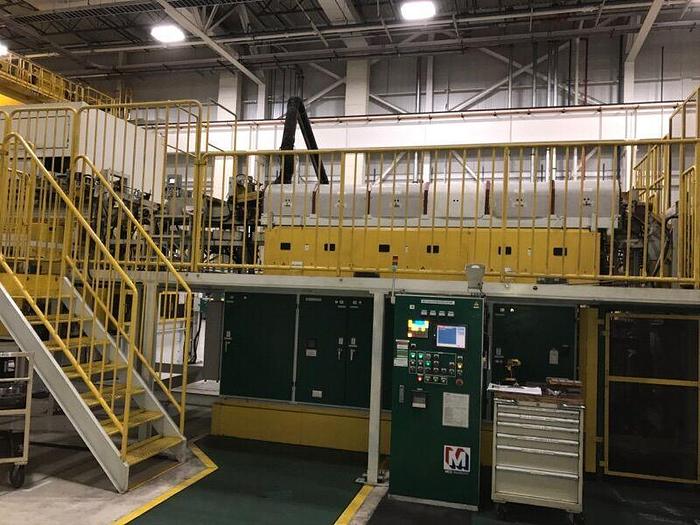

1600 Kw Induction Heater
Complete Transfer Ram

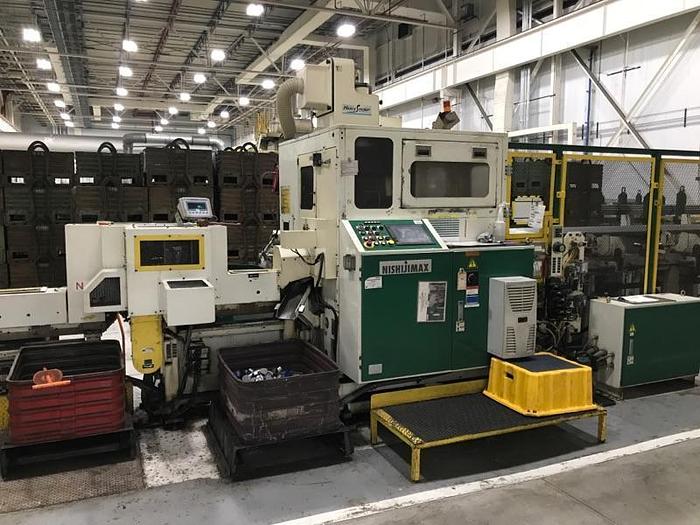

Nishimax Saw
US$ 1 million worth in Major Spare Parts.
Box of manuals available.
This line was used by HONDA to make transmission gears, It takes a billet, cuts it to size, heats it to 1300 C then the press hits it 4 times. It can determine good from bad parts, the bad parts get sent to a quench tank, the good parts get sent into a cool down conveyor that you can pick the parts up by hand at the end. The entire system was ran by one operator.
Note - Machine has been totally disassembled for transport & machine price includes all spare parts.
