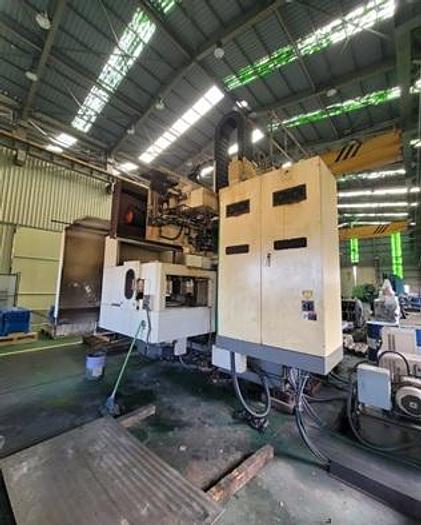

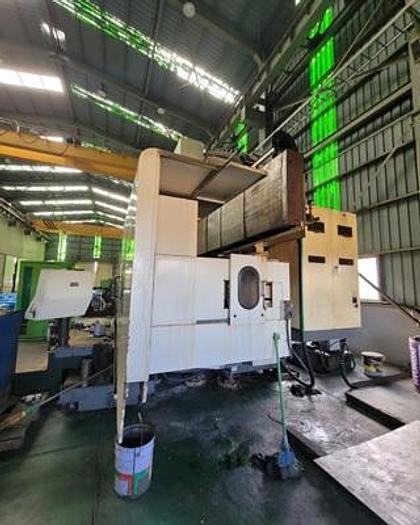

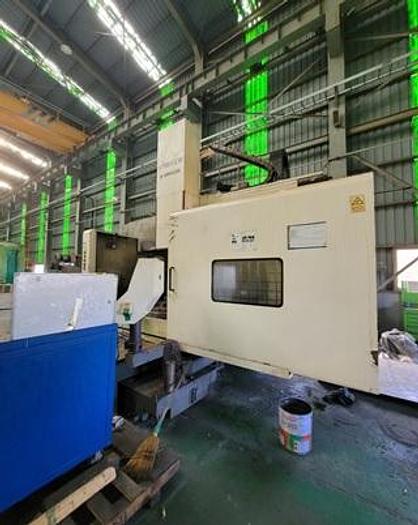

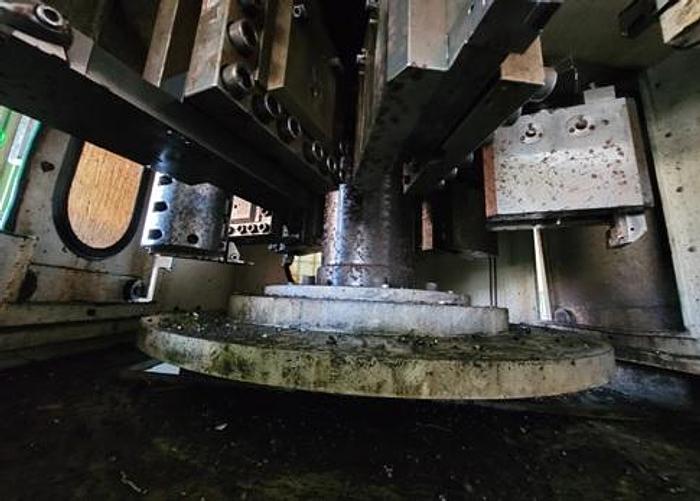

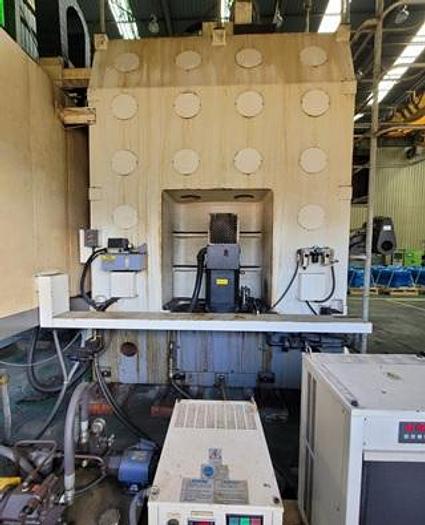

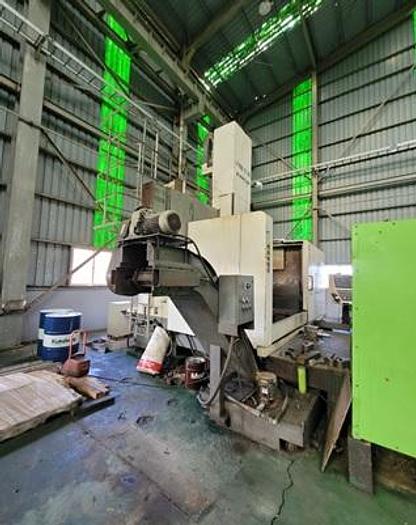

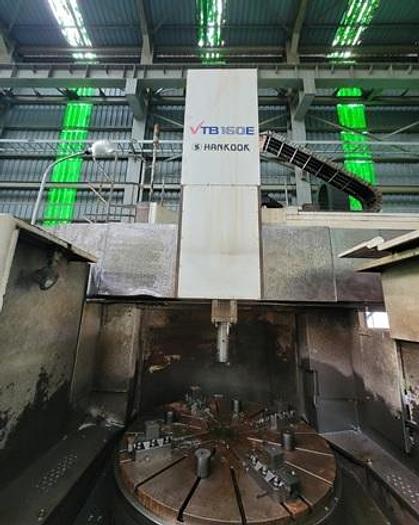

Lathe Vertical Turning CNC Hankook

Max. turning dia : 2000 mm,

Max. turning height : 900 mm,

Max. torque : 23863 N.m,

Max. cutting force : 3000 kgf,

Max. workpiece weight : 10 tons,

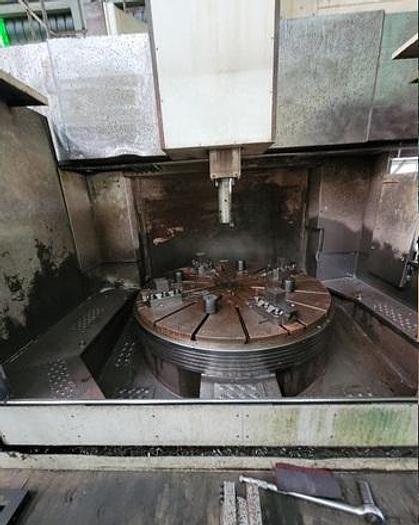

Table dia. : 1600 mm,

Table speed : 07-280 rpm,

Table speed range : Auto. 2-step,

Min. index angle : 0.001 deg,

Cutting feedrate : 0-1200 deg/min,

Max. speed : 3.333 rpm,

Tool size : 32 mm,

Spindle taper : ISO 7/24 No. 50,

Mill spindle speed : 30-3000 rpm,

Max. mill spindle torque : 235 N.m

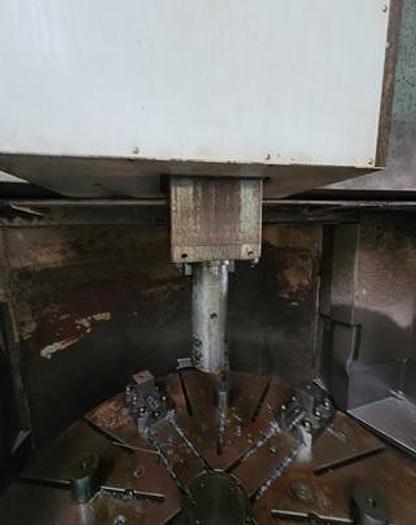

Ram cross section : 220 x 220 mm,

X-axis travel : 1900 mm,

Z-axis travel : 900 mm,

Vertical travel of cross rail : 700 mm,

X/Z-axis cutting feedrate : Max. 7500 mm/min,

X/Z-axis rapid traverse : 7500 mm/min,

Cross rail rapid traverse : 300 mm/min,

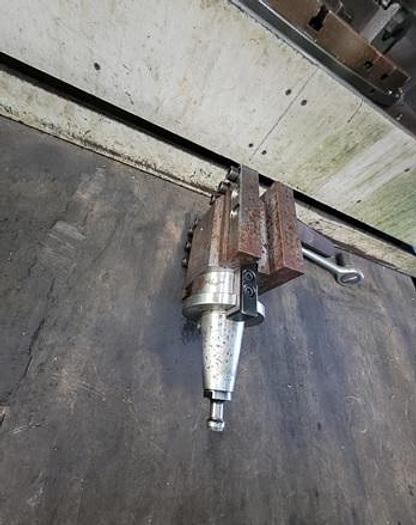

Type of tool holder : MAS BT50,

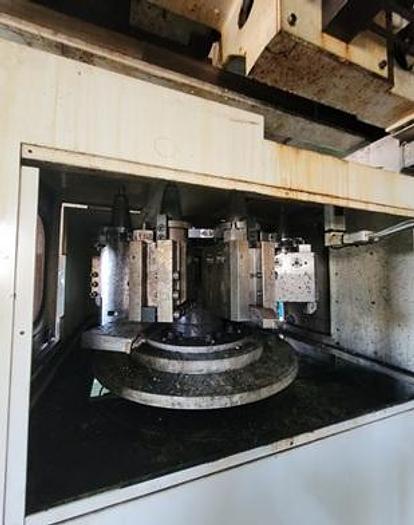

Tool magazine capacity : 24-tool set (Turning 12, Milling 12),

Max. tool weight : 50 kg,

Type of Pull stud : P50T-I : VTB / DIN. 69872.50 : VTC,

Table motor : AC 37/45 (50/60) kW,

Mill spindle motor : AC 15/18.5 (20/25) kW,

C-axis motor : AC 7 kW,

X/Z-axis servo motor : AC 7 kW,

Input power supply : AC 200/220 V +-10%, 50/60 Hz +-1%,

Power Capacity : 75/80 kVA,

Height : 4690 mm,

Floor space (L x W) : 5285 x 4515 mm,

Weight : 34 tons.

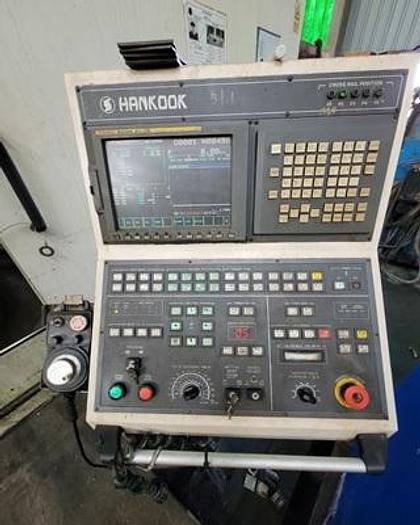

CNC Controller : Fanuc 32i-A.

Fanuc controller without C axis.
