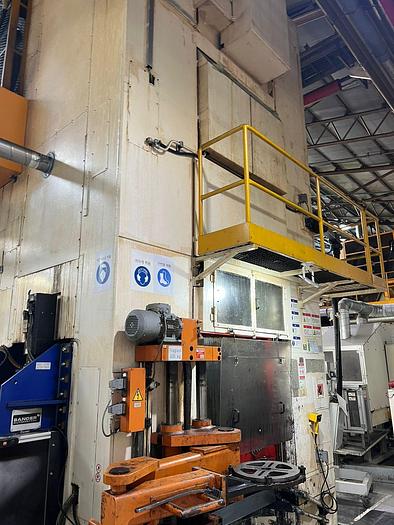

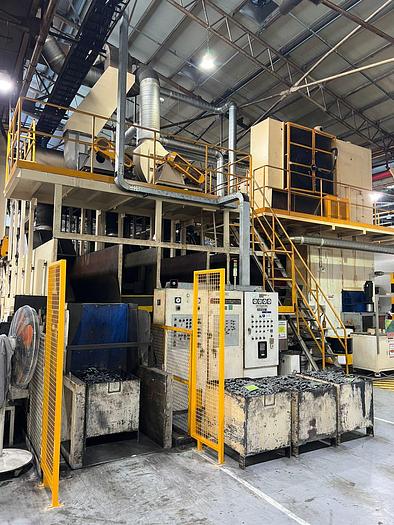

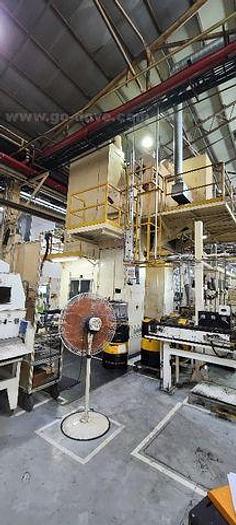

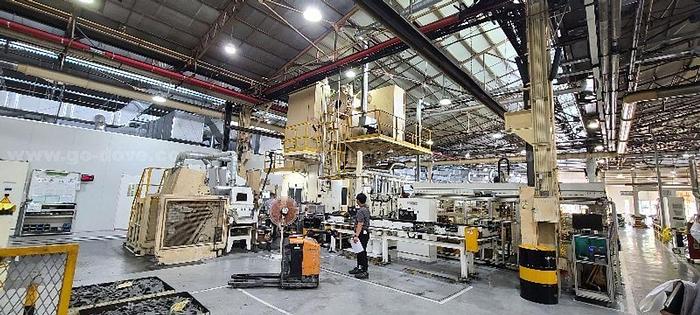

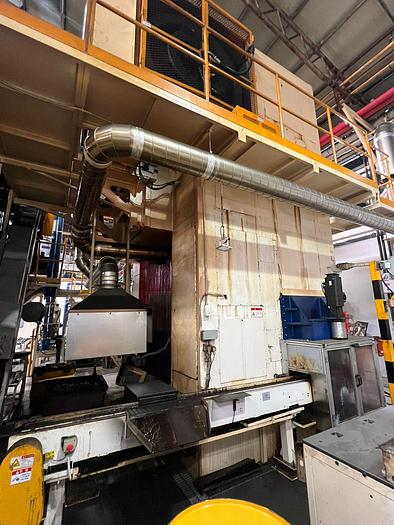

Cold Forging Press Line Schuler KB2-1000-1.25-400 / DSG45

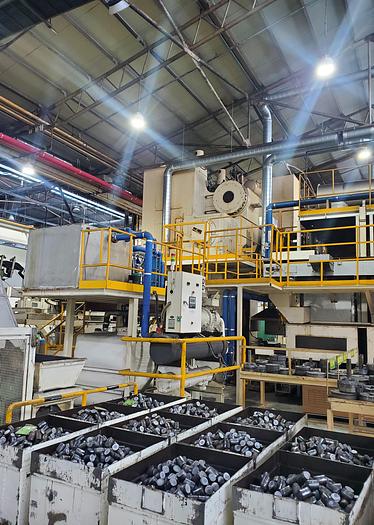

1000 tons Schuler Warm Forigng Press + 1000 tons Schuler Cold Forging Press Line

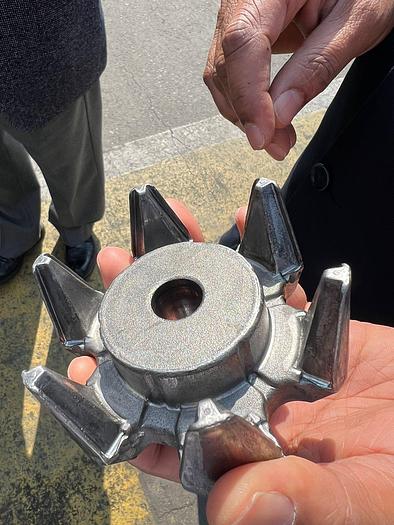

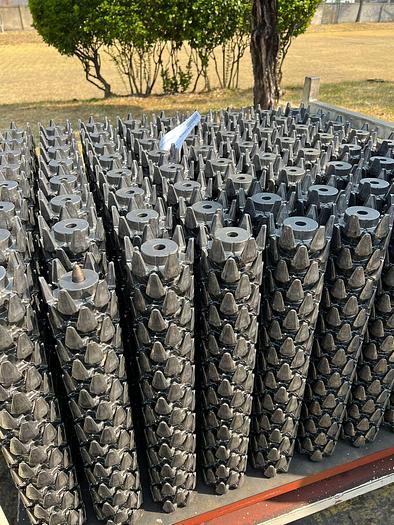

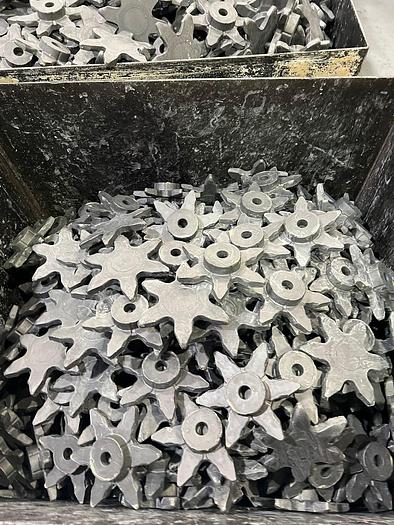

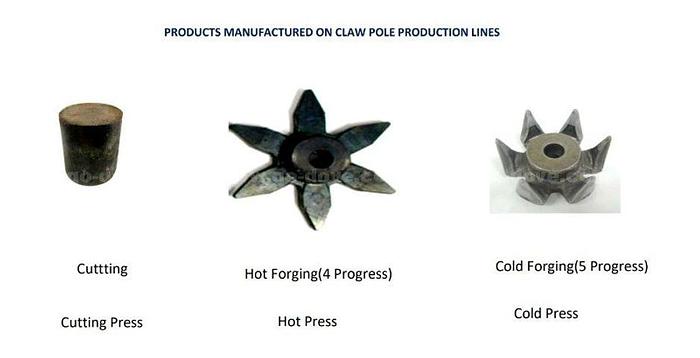

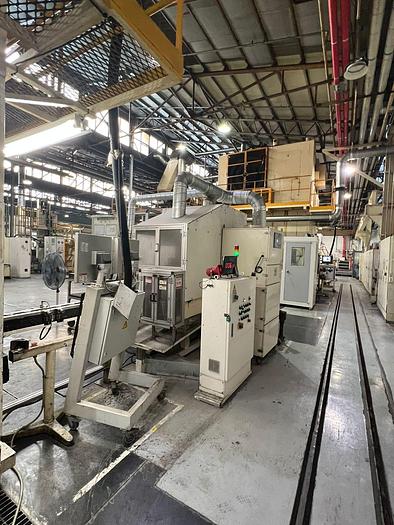

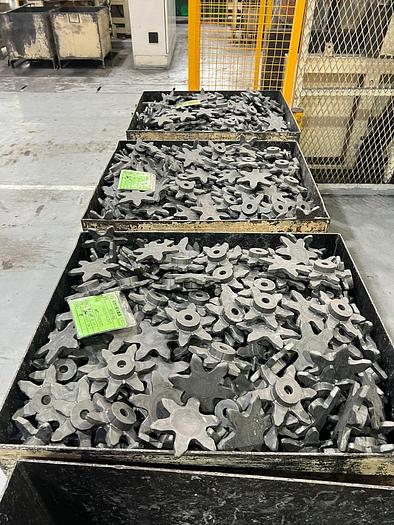

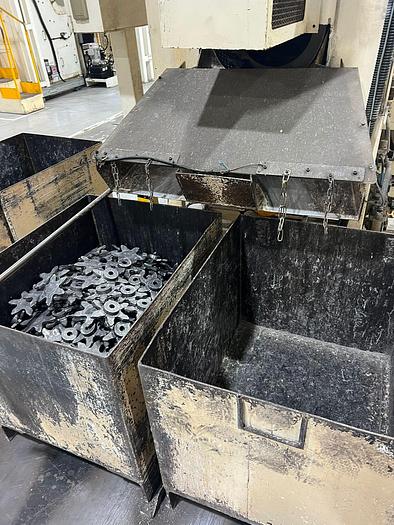

Claw Pole Manufacturing Line Assets:

Including Press, Induction Heater, Coating

Line, Washing Machine, Palletizer and more

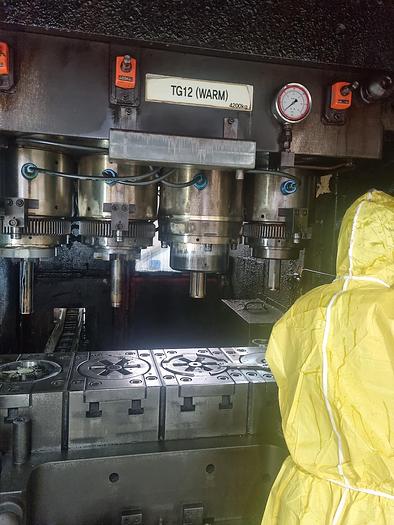

1.Schuler 1000 Ton Warm Press & Sander Germany Transfer System

Description:

Schuler 1000 Ton Warm Press (1993) and Sander Germany Transfer System (2003) :

Make : Schuler / Sander

Model : KB2-1000-1.25-400 / ZGV50

Year : 1993

Press Type : Modified knuckle joint Press

Capacity : 1000 tons,

Force : kN 10,000 (1000 ton)

Slide stroke : 400 mm,

Shut height : 1960 mm,

Bed size : 1250 x 80mm

Spec. : 42 stroke/min ,

Actual : 38 stroke/ min

220V 3P 60Hz 90KVA,

Weight - 120 tons,

3.6M X 3.3M X 7.6M

Overhaul 2018

Please refer Overhaul summary for Warm & Cold press in Document

section.

2.Manyo Japan LBS200MN 200 Ton Cutting Press

Description:

Make : Manyo Japan

Year : 1992

Manyo Japan LBS200MN 200 Ton Cutting Press :

Round bar cutting press with material magazine Steel round bar cutting Φ 30~50 220V 3P 60Hz 36KVA

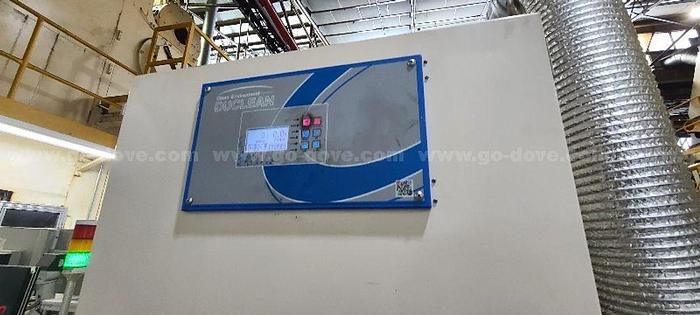

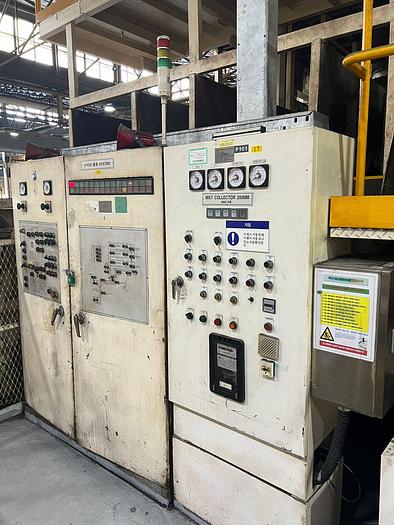

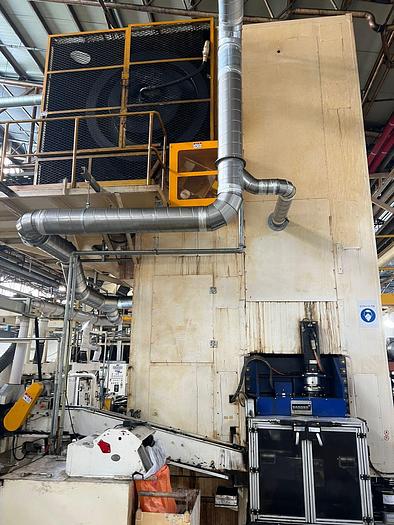

3. STS Eng Korea Fume Collector

Description :

Make : STS Eng

Year : 2001

STS Eng Korea Fume Collector :

Capacity : 200 Meter Cube

220V 3P 60Hz 20KVA

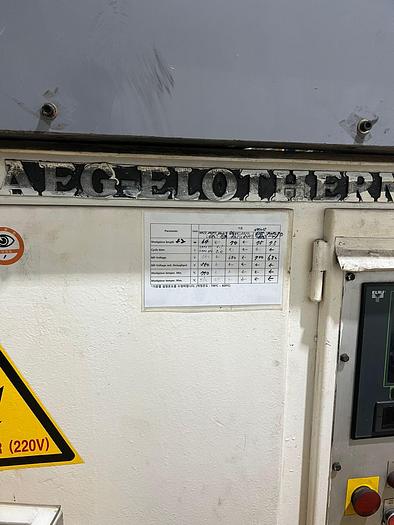

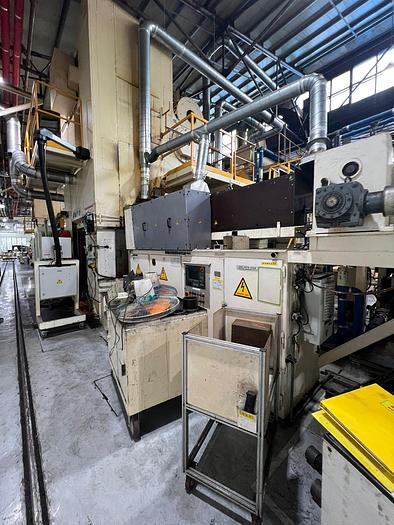

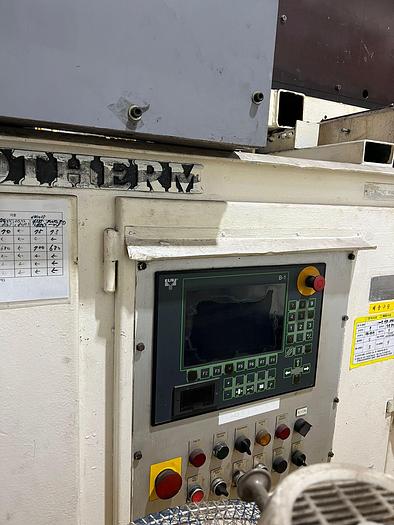

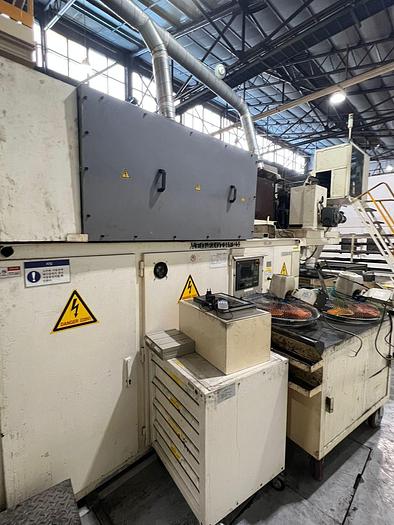

4. SMS AGE Germany BT2415 Induction Heater

Description

Make: SMS AGE Model BT 2415

Year : 1993

SMS AGE Germany BT2415 Induction Heater :

Round bar induction heating (780~800 Deg Celsius) Continuous Round

bar heating 1 static thyristor coverter, type ELOMAT

380kw, 2KHz, 750 Vm with low voltage master switch round billets Φ50 X

60mm long, 2.4sec. 660V 3P 60Hz 500KVA

5. Hansung Welltech Korea HSDL-1510 Tool Change Car

Description

Make : Hansung Welltech Korea

Model : HSDL-1510

Year : 2020

Hansung Welltech Korea HSDL-1510 Tool Change Car :

Capacity : 5 ton Battery

6. H&T Korea Palletizer

Description

Make : H&T Korea

Year : 2018

Palletizing System:

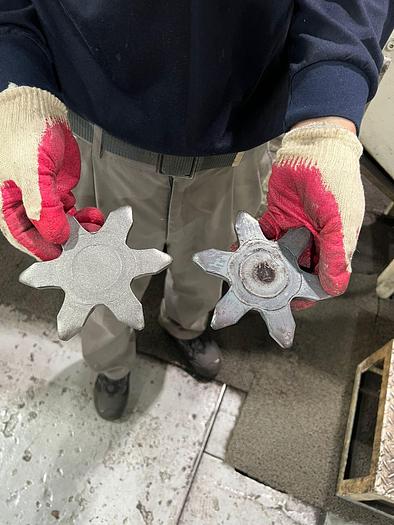

Claw pole palletizing with air gripper and transfer device Max 35 pcs/min,

2set of palletizing zone 220V 3P 60Hz 5KVA

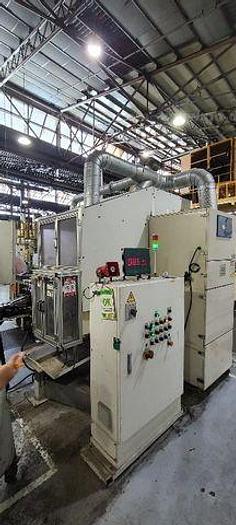

7. Cleanforce Korea Washing Machine

Description

Make : Cleanforce Korea

Year : 2013

Cleanforce Korea Washing Machine :

Consist with inclined Hot Rinse, air dry, anti-rust Conveyor spray nozzle

type Capacity Max 2.5 ton/h

220V 3P 60Hz 60KVA

8. Rosler / H&T Coating Line

Description

Make : Rosler / H&T

Model : SBM1520

Year : 2012

Rosler / H&T Coating Line :

Coating line (Shot blast & Coating machine)

Capacity 3ton/h, Max. single part weight 1kg

380V 3P 60Hz 40KVA 220V

Consist with inclind conveyor , Hot Rinse, Coating and Hot dry.

3P 60Hz 175KVA

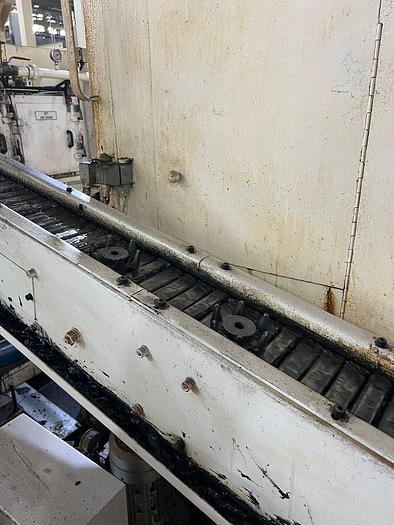

9. H & T Korea Cooling Conveyor

Description

Make : H&T Korea

Year : 1995

H &T Korea Cooling Conveyor :

Capacity 5ton X 3Set

220V 3P 60Hz 20KVA

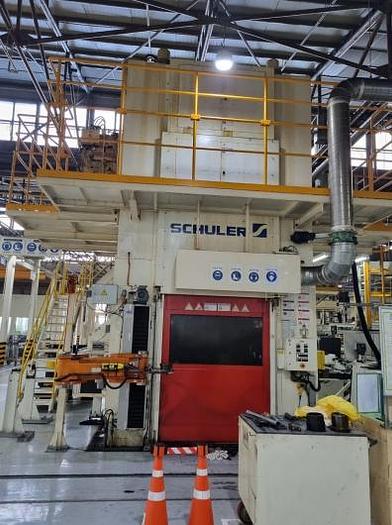

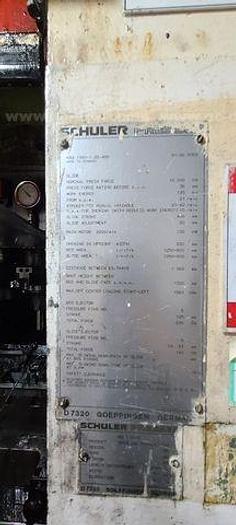

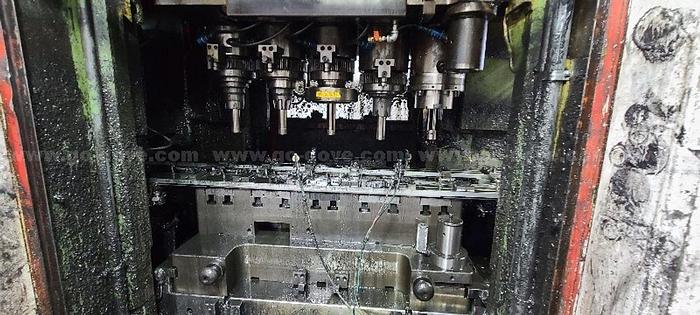

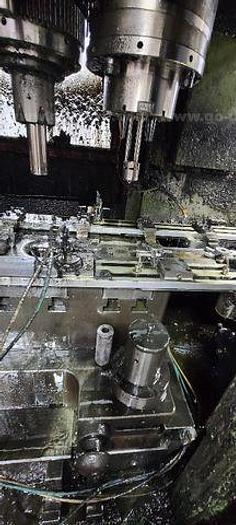

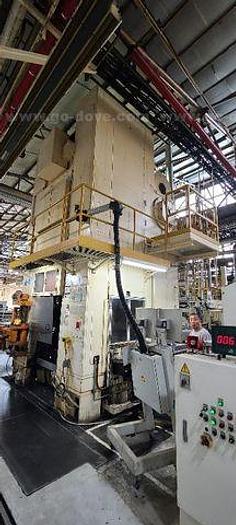

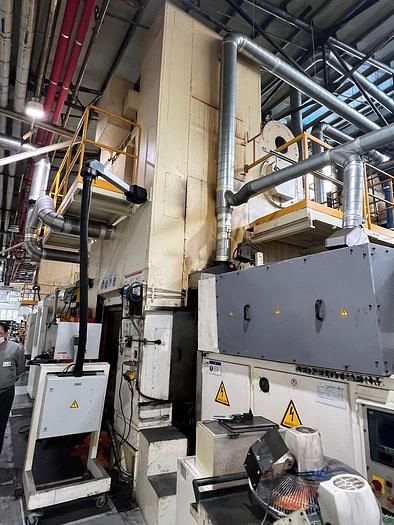

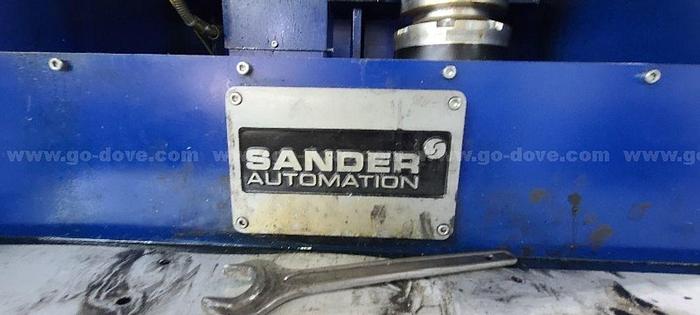

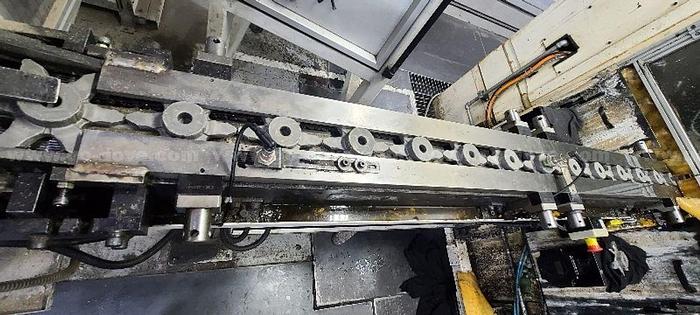

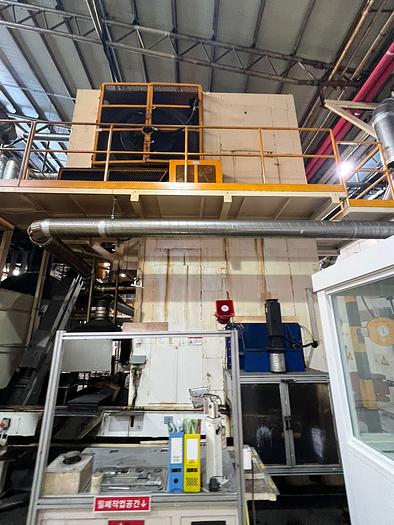

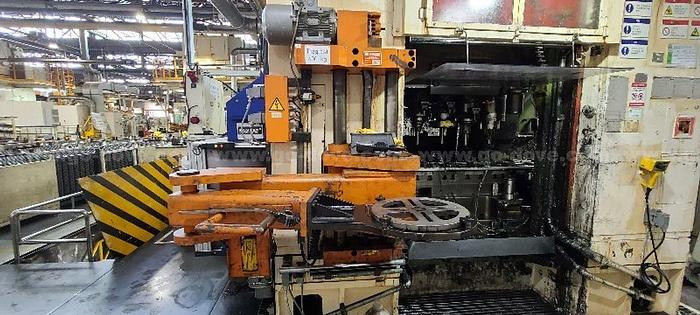

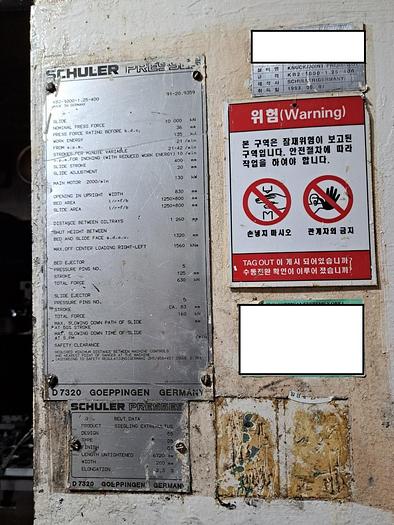

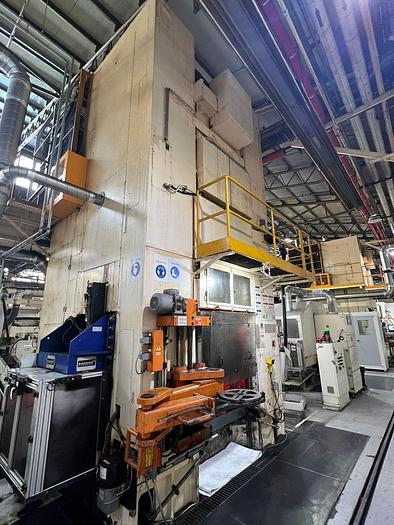

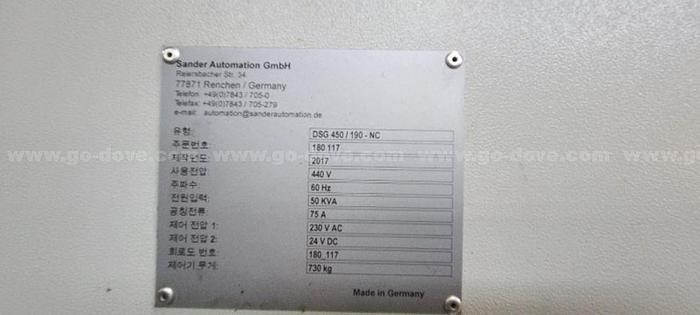

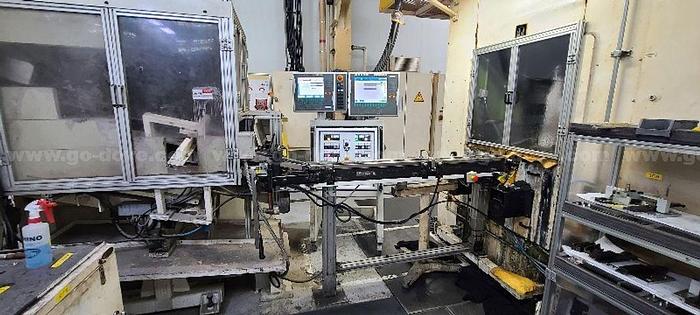

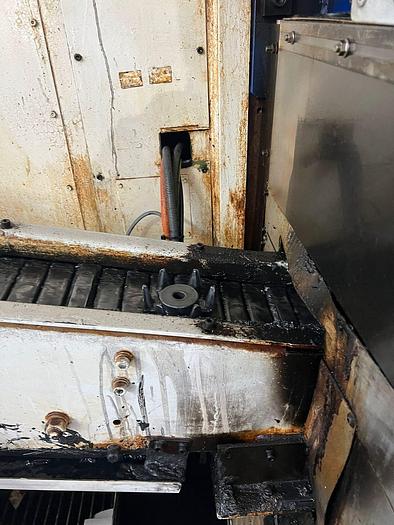

10. Schuler 1000 Ton Cold Press & Sander Germany Transfer System

Description

Make : Schuler / Sander

Model : KB2-1000-1.25-400 / DSG45

Year : 1993

Schuler 1000 Ton Cold Press (1993) / Sander Germany Transfer System (2018) :

Press Type : Modified knuckle joint Press

Capacity : 1000 tons,

Force : kN 10,000 (1000ton),

Slide stroke : 400 mm,

Shut height : 1960 mm,

Bed size : 1250*800 mm

Spec. : 42 stroke/min ,

Actual : 30~33 stroke/min.

Cold Press’s isolated capacity is 40 stroke/min

220V 3P 60Hz 90KVA

Weight - 120 Ton,

Dimension - 3.6M X 3.3M X 7.6M

Please refer Overhaul summary for Cold & Warm press in document section.

Technical manuals available
