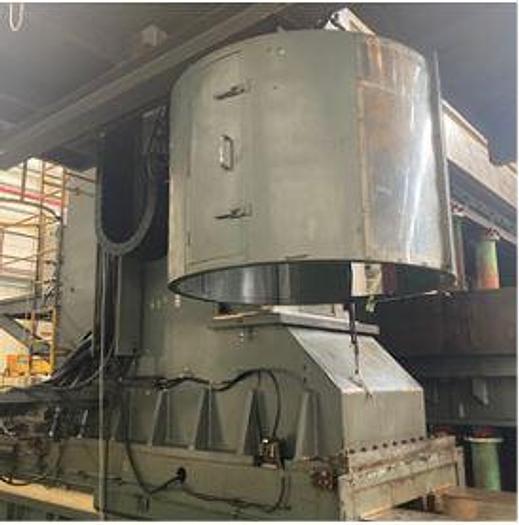

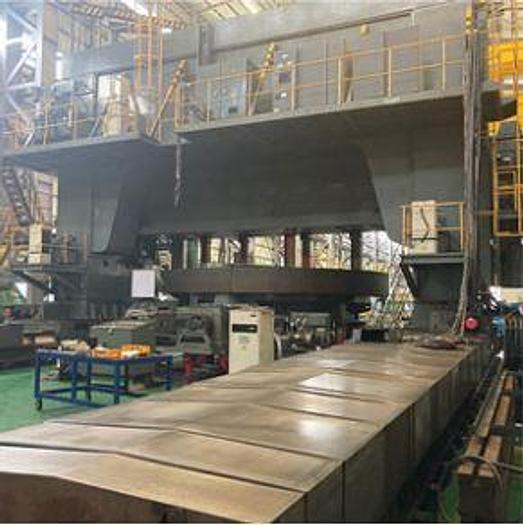

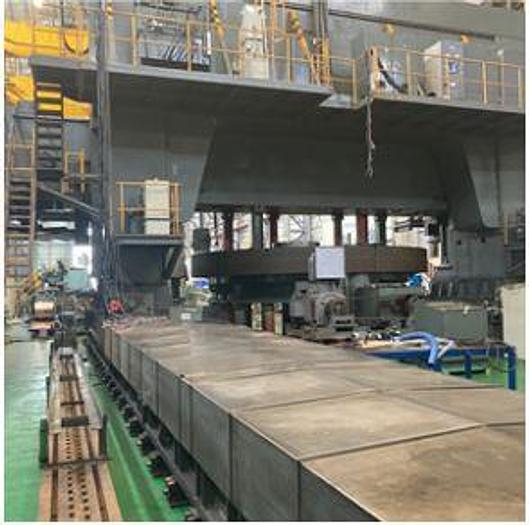

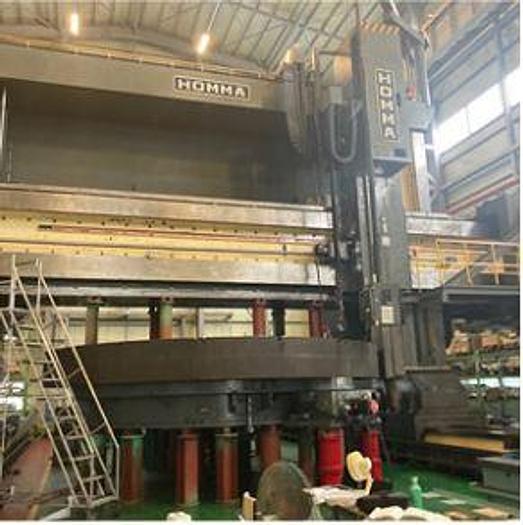

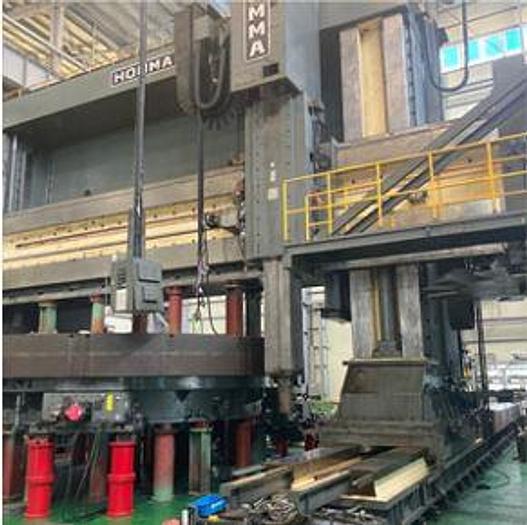

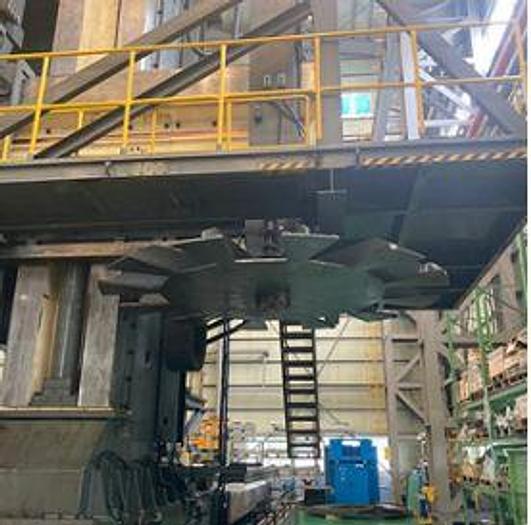

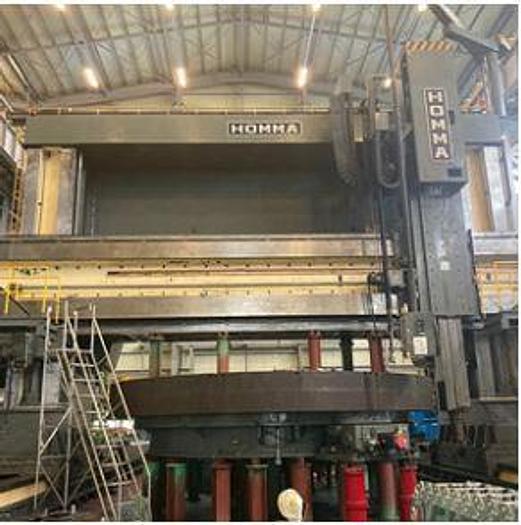

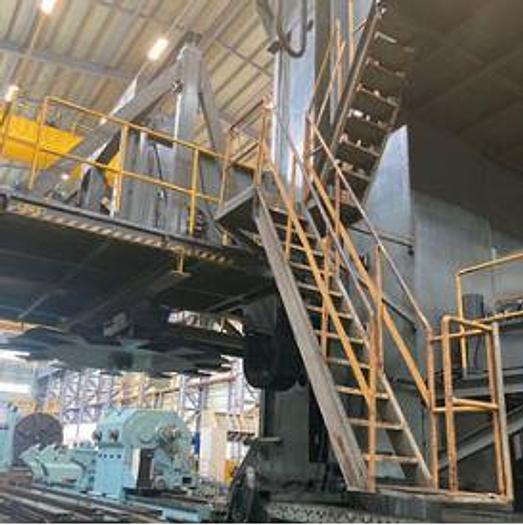

Lathe Vertical Turning CNC Homma HTM 7.0/9.0

Vertical Turning CNC  & Milling M/C

Distance Between Column : 9000 mm,

Max Cutting Diameter & Max Swing : 9000 mm,

Max Cutting Diameter & Max Swing Set Back : 11200 mm,

Distance Table to Bite Holder : 4000 mm,

Max Cutting Length : 11000 mm,

Max Load on Table : 250 tons,

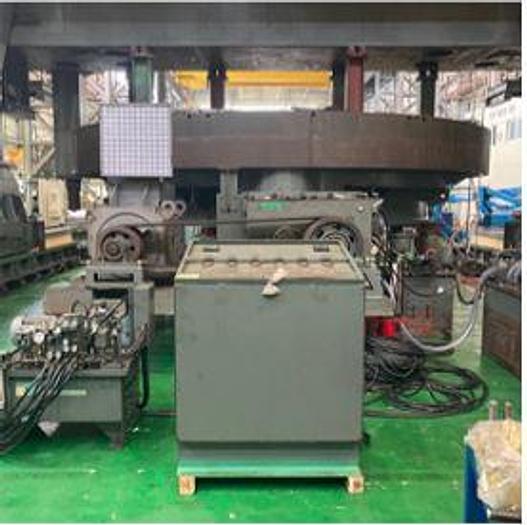

Turning Table Diameter : 7000 mm,

Table Speed (turning) : 0.25 - 30 rpm,

-Low Speed : 0.25 - 1.875 - 7.5 rpm,

-High Speed : 1 - 7.5 - 30 rpm,

Table Speed Variation Gear Change : 2 Steps x DC Motor,

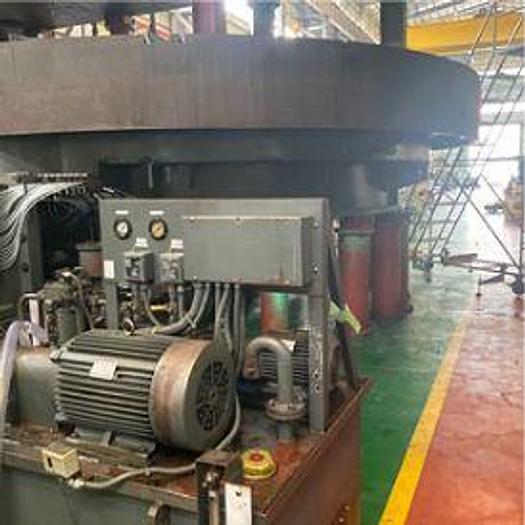

Table Speed Variation System : Hydraulic Cylinder,

Table Speed Command System / S4 Digit Direct Command,

Table Support System -

-Radial : Multiple Row Cylinder Roller Bearing,

-Thrust : Hydraulic Static Bearing,

-Max Table Torque : (at 1.875 rpm) 62,300 kg/m,

-Table Chuck : 8 Manual Jaws,

-Y Axis Horizontal Stroke : 10850 mm,

-Z Axis Vertical Stroke : 3000 mm,

-Feed Speed : 1 - 3000 mm/min,

-Y axis Rapid Feed Speed : 6000 mm/min,

-Z Axis Rapid Feed Speed : 3000 mm/min,

-Drive System Y,Z Axis : Ball Screw,

-Z Axis Balance System : Hydraulic Counter Balance,

-W Axis Stroke : 2000 mm,

-Table to Cross Rail Bottom : 4350 - 2350 mm,

-W Axis Feed Speed : 1 - 500 mm/min,

-W Axis Rapid Feed Speed : 500 mm/min,

-Balance System : Hydraulic Counter Balance,

-W Axis Clamping System : Hydraulic - Auto,

-Table Index (C Axis) Feed Speed : 0.1 - 100 deg/min,

-Position Detector Rotary Encoder / Heidenhain RON 706,

-Gantry Stroke : 9000 mm,

-Gantry Feed Speed : 6000 mm/min,

-Gantry Drive System : Double Pinion Rack,

-Square Ram Dimensions ：500 x 500 mm,

-Spindle Drive Capacity : AC 37/45 kW,

-Spindle Taper : ISO 50,

-Spindle Speed : 10 - 1000 rpm,

-Spindle Speed Variation : 2 Steps AC Motor,

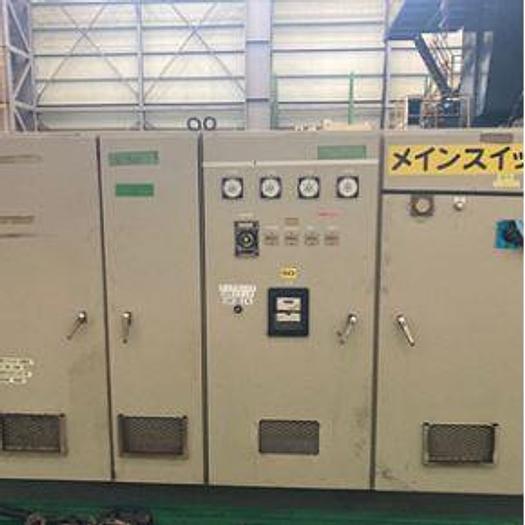

- CNC Controller : Fanuc - 15MB,

- Built in : 1991 - Re-build in 2021.

Technical manuals available
