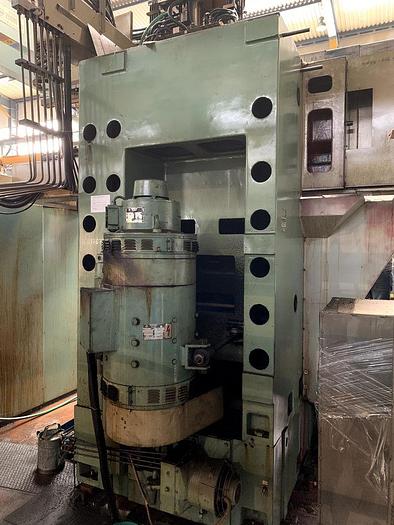

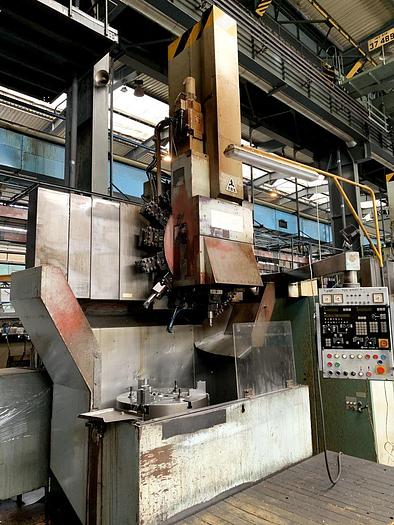

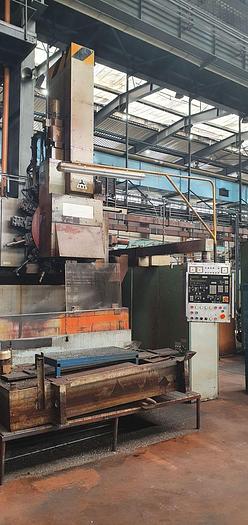

Lathe Vertical Turning CNC SKIQ8CNC
or
Call +919920651051
Specifications

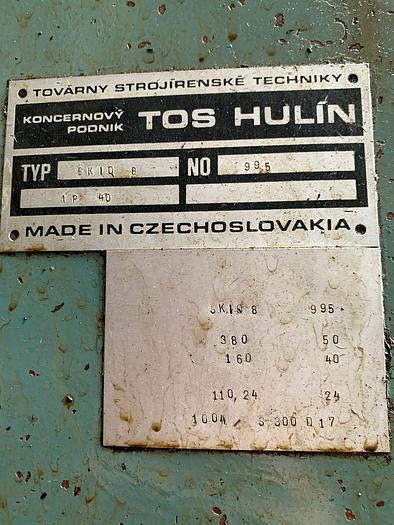

| Manufacturer | Tos Hulin |
| Model | SKIQ8CNC |
| Year | 1989 |
| Condition | Used |
| Stock Number | MA2121 |
| Item condition | Good working condition, now dismantled in our stock |
| Capacity tons | 800 |
Description

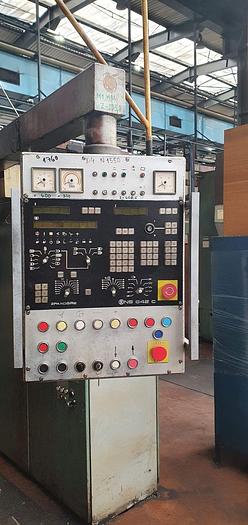

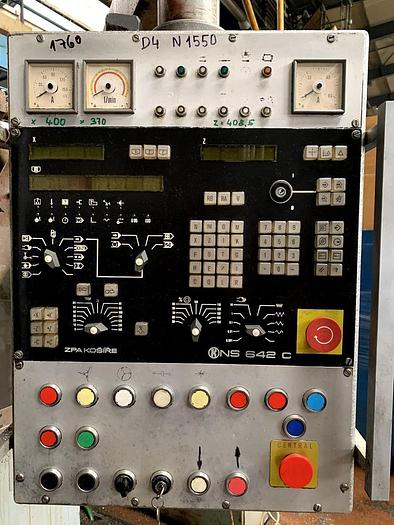

CNC TOS vertical lathe SKIQ8BCNC with Tesla NS642 :
Face plate diameter : 800 mm,
Max. workpiece diameter : 1000 mm,
Max. workpiece height : 750 mm,
Max. diameter of external working : 1000 mm,
Z axe : 630 mm,
Face plate revolutions : 4 – 400 rpm,
Main motor output : kW 30 (40),
Machine dimensions :
Length : 4900 mm,
Height : 3830 mm,
Width : 4485 mm,
Machine weight : 16 tons,

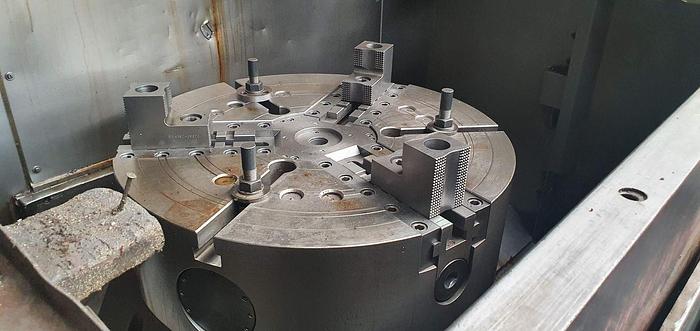

The machine has live tools for drilling and grinding, hydraulic clamping table.
Manuals available
