Plano Miller CNC Gentry Rivolta

Sold

Specifications

ManufacturerRivolta
Year1988
ConditionUsed
Stock NumberMA2119
Item conditionGood working condition

Description

France n.1 Gentry Milling Line

Gentry Rivolta:

X : 12000 mm,

Y : 3750 mm,

Z : 1000 mm,

(1450 mm with spindle)

ATC,

Spindle Power : 40 KW,

Rapid Travel of axis 10/12.000  mm/min. (the machine is with hydrostatic slides),

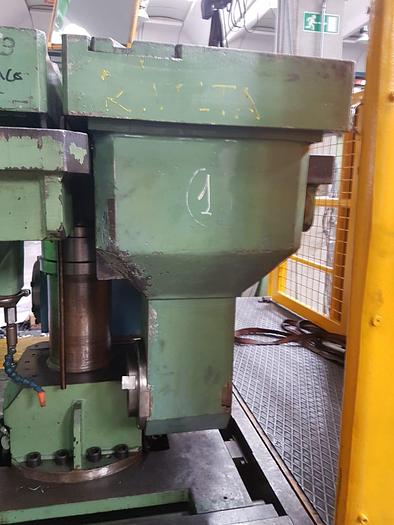

Total n. 4 milling heads with the automatic changing head system :

1  horizontal head for internal milling controlled by CNC, 4 position (4 x 90°),

1  horizontal head for external milling controlled by CNC, 4 position (4 x 90°),

1  horizontal fixed head

1  vertical  fixed head

Axis are driven through CNC Control 3 (X/Y/Z) + 1 +1  heads with positioner (4 x 90°),

max workpiece weight 20 tons x m2 (approx. 600 tons in all the table 2500 mm x 12000 mm),

coolant external or also internal through Spindle? coolant  internal through Spindle with oil and freezer controlled by CNC

Chip Conveyor n. 2

total weight of machine 80 tons,

Yom 1988

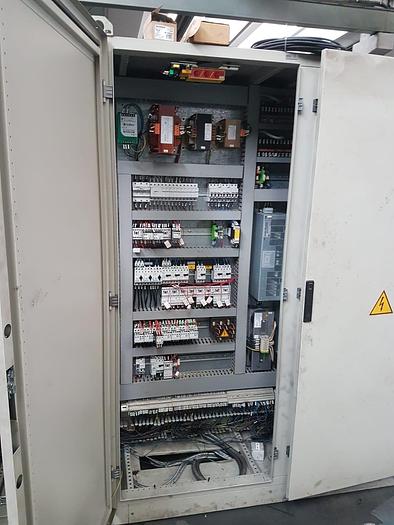

Year of revamping of electrical part and mechanical part : 2019.
