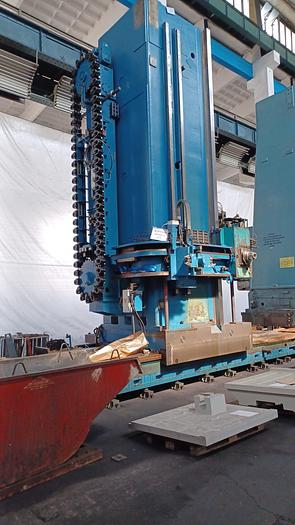

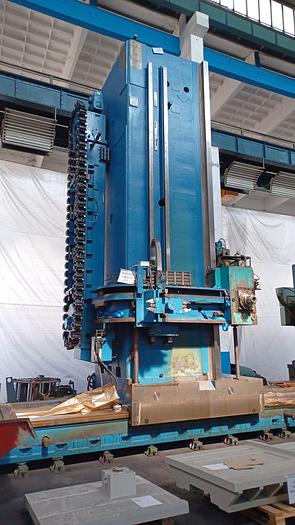

Borer Horizontal Ram Type CNC Sharmann

CNC floor boring machine complete of CNC rotary table (AXIS C)

Spindle dia. : 160 mm,

ISO : 50,

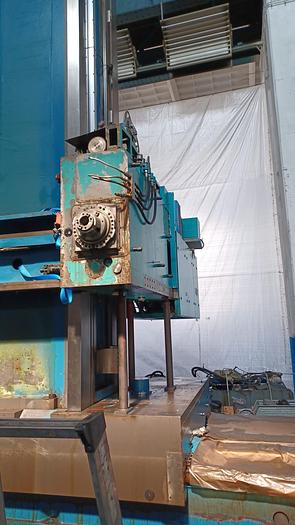

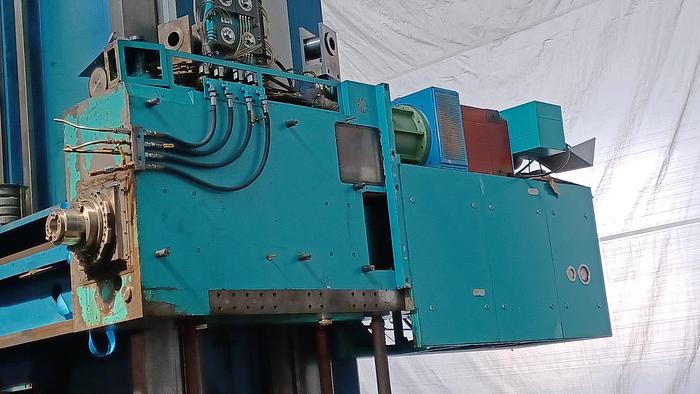

Ram : 325 x 325 mm,

Spindle motor : 65 KW,

Spindle RPM  : 2,5 – 1.250 / min.

Stroke   X : 12000 mm,

             Y : 4000 mm,

             Z :  800 mm,

             W : 700 mm,

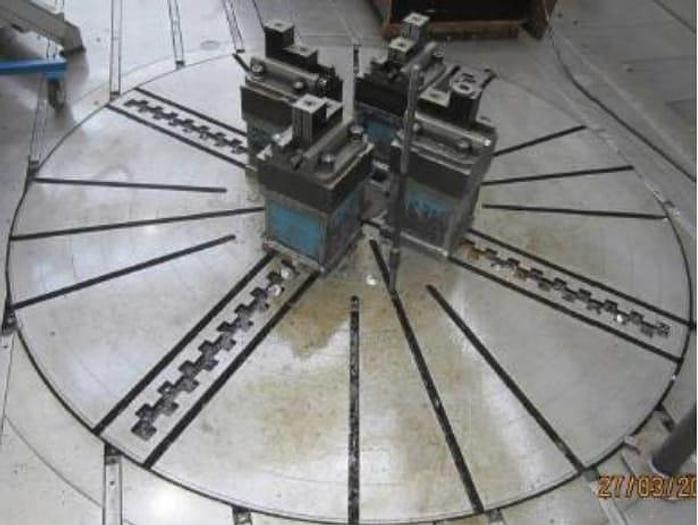

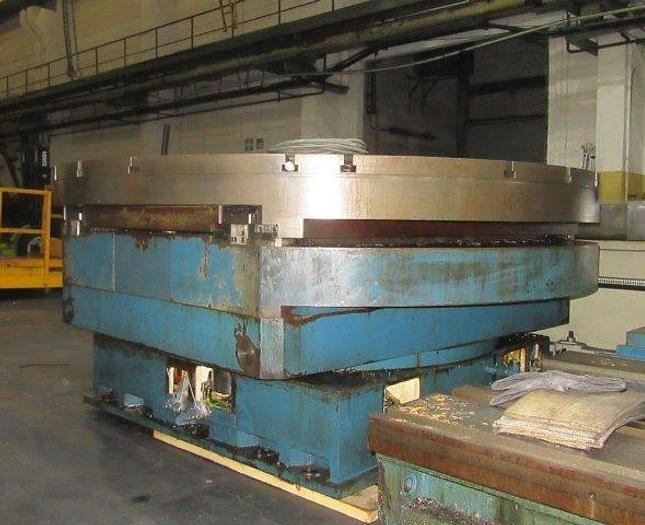

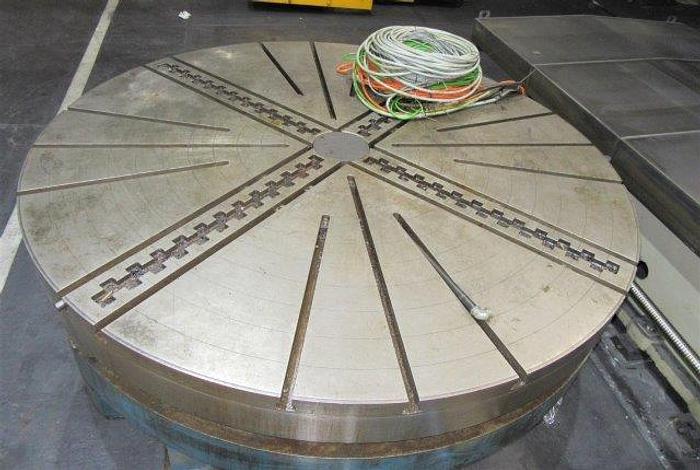

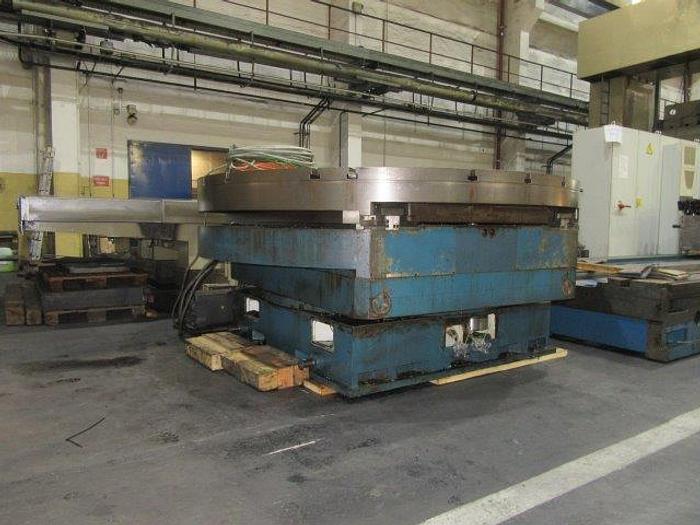

Rotary table  (C - AXIS) : dia. 2500 mm loading capacity 30 Ton,

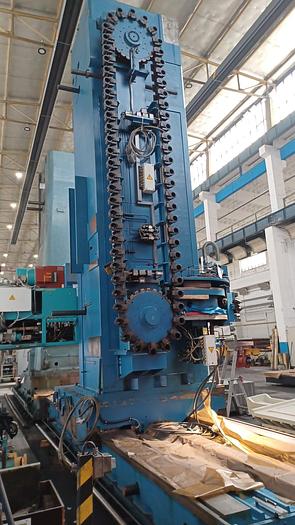

ATC  : 60 position,

CNC : SIEMENS 840 Dsl,

Total power installed  : 229 Kw,

Weight  : 112 tons,

Revamping : 2007.
