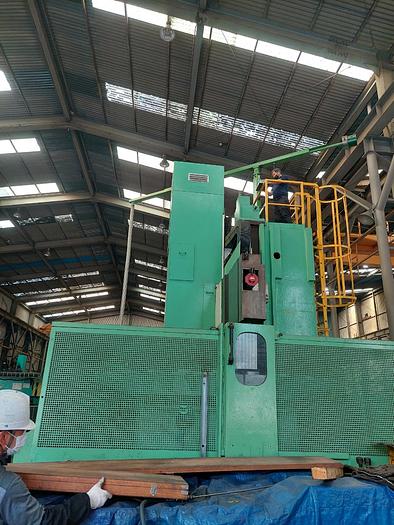

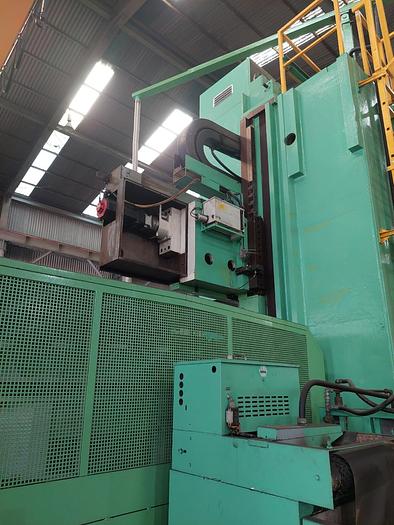

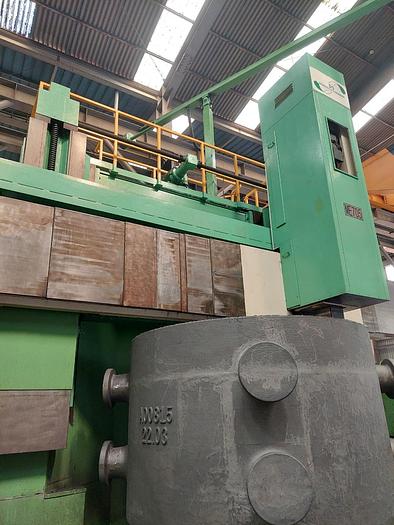

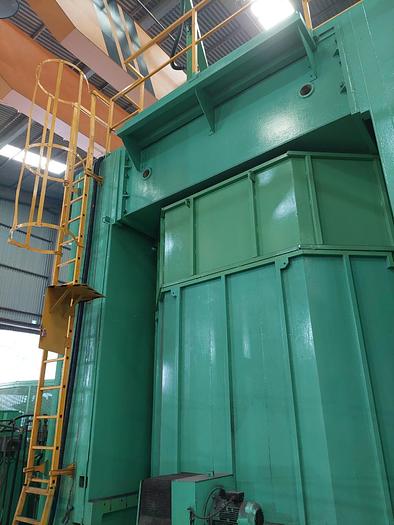

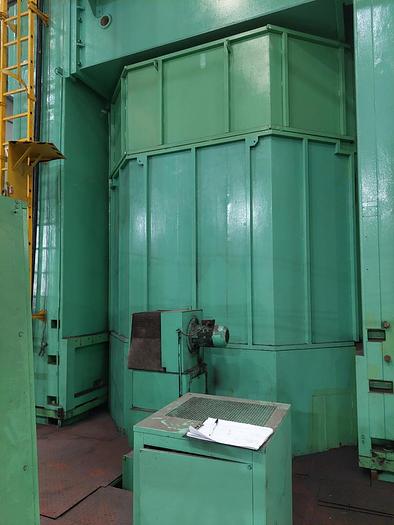

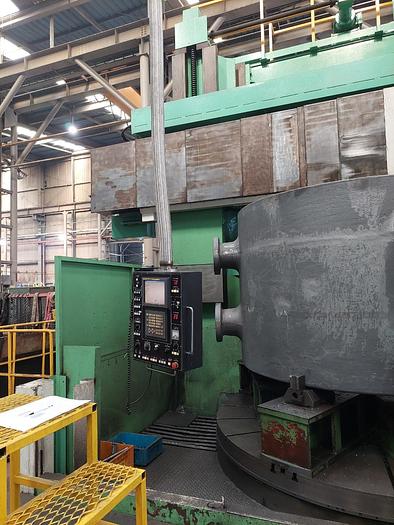

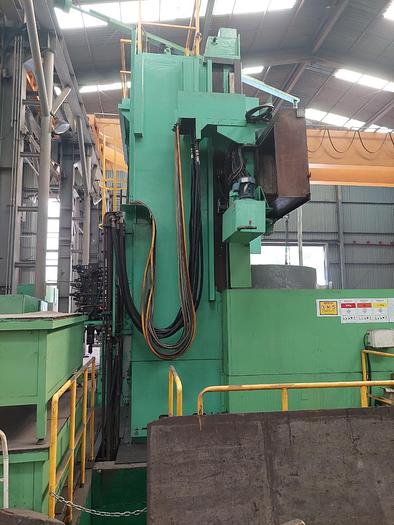

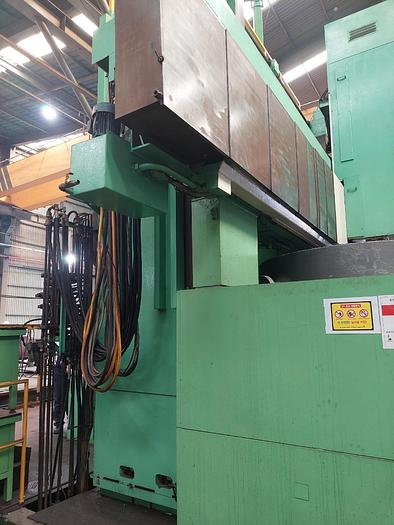

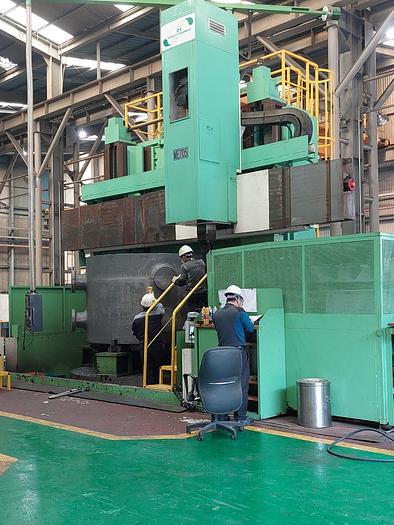

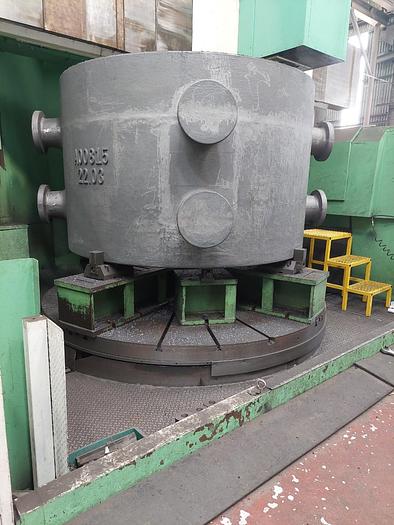

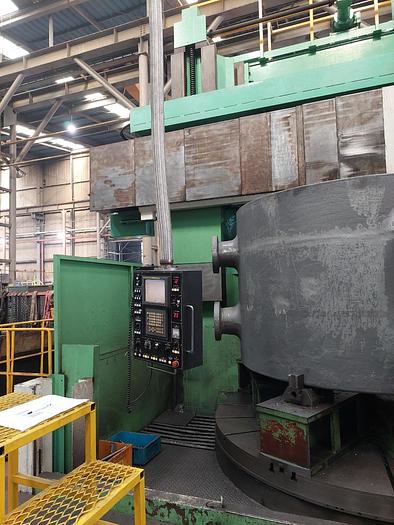

Turn Mill CNC VC3500/300 Dorriess Scharmann

Max. workpiece size : 3300 x 3200 mm,

Max. workpiece weight : 50 tons,

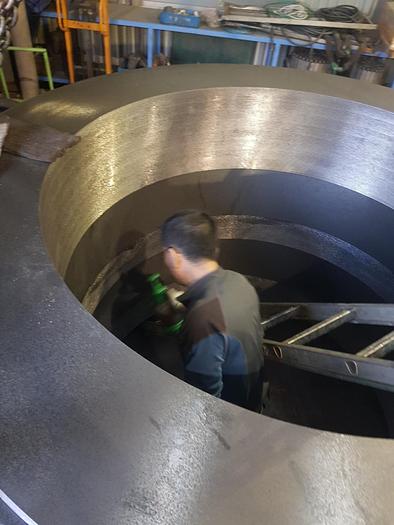

Table size : 3000 mm,

Table Load : 50 tons,

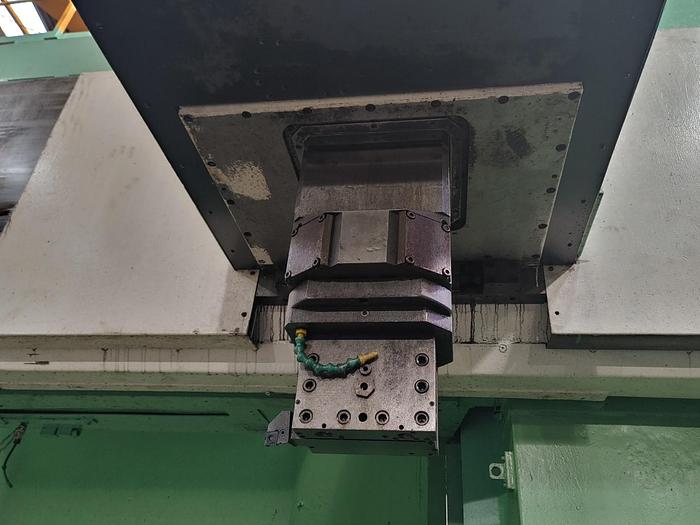

Ram size : 250 x 250 mm,

Spindle speed : 10-2000 rpm,

Spindle Motor (Cutting Force) : AC22 Kw,

Spindle Taper/Pull Stud : BT50,

Table travel (x) : -2550-2550 mm,

Ram travel (z) : 1700 mm,

Crossrail travel (w) : 1800 mm,

Table Speed : 0.6-110 rpm,

Rapid (x) : 6000 mm/min,

Rapid (z) : 6000 mm/min,

Drive Motor (Control) : DC 105 Kw,

Max. Torque : 140000 Nm,

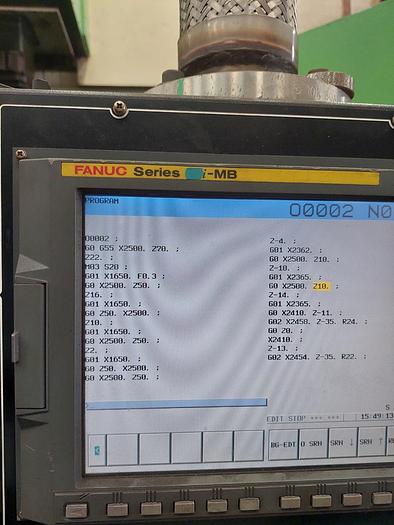

CNC System : Fanuc 18iTB

Tank Capacity : 850 L,

Coolant Pressure : External : 80 L/min 2 Bar, Internal : 80 L/min 15 Bar,

ATC:

Magazine (Turning : 10STA, Milling : 17STA)

Magazine Tool : L-570 mm, 75 kg.

Technical manuals is available.
