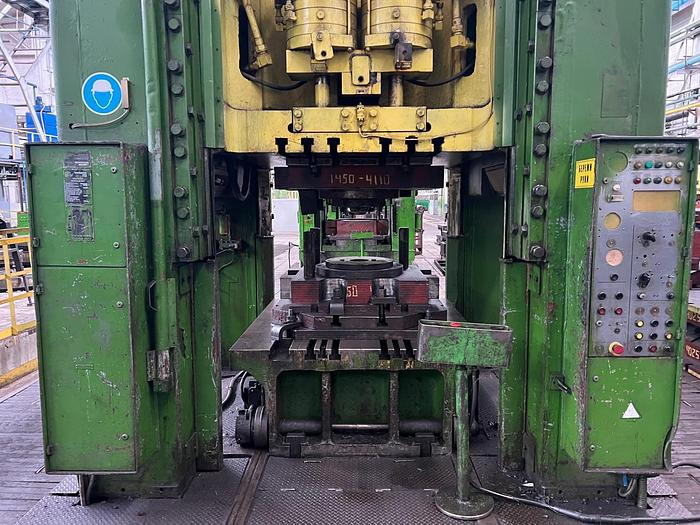

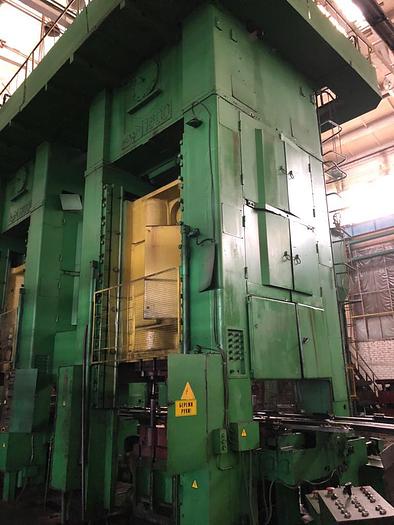

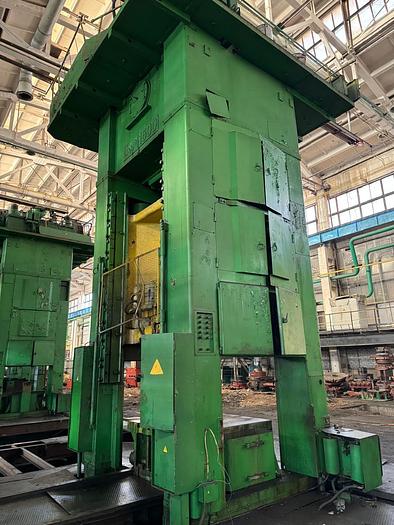

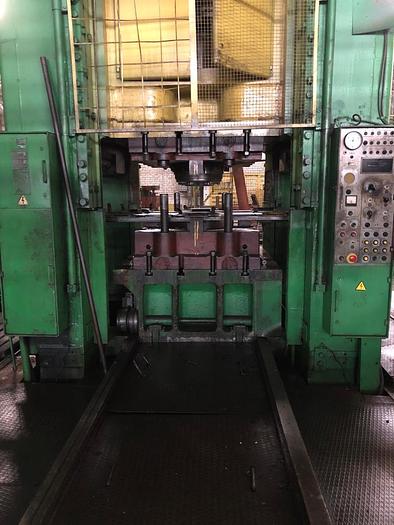

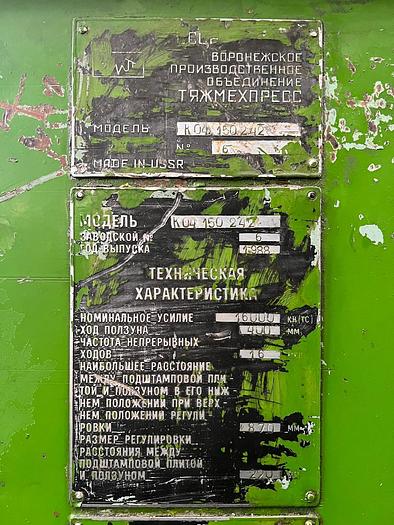

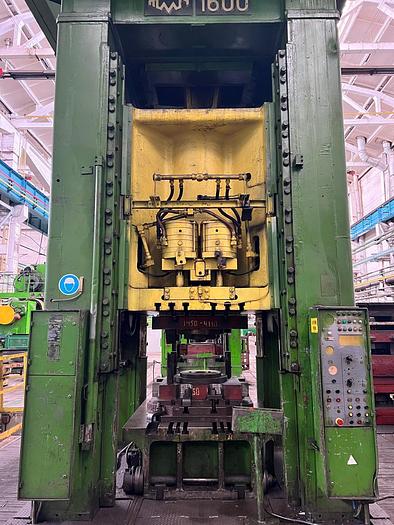

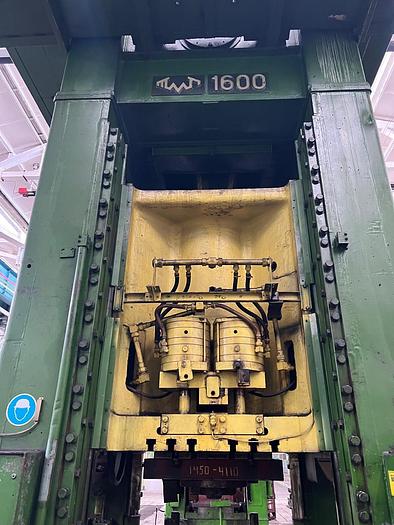

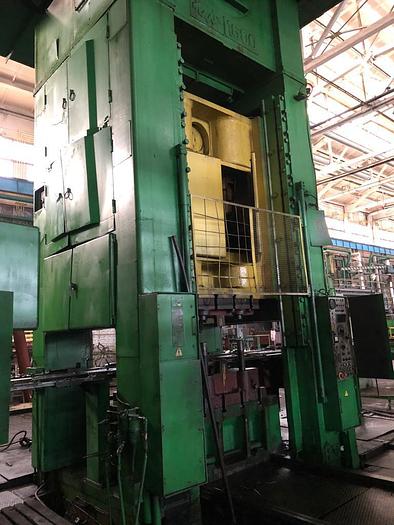

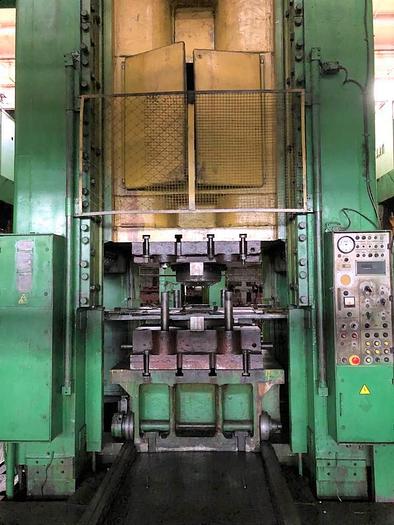

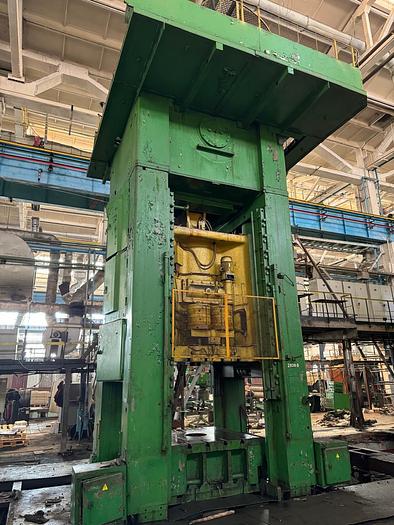

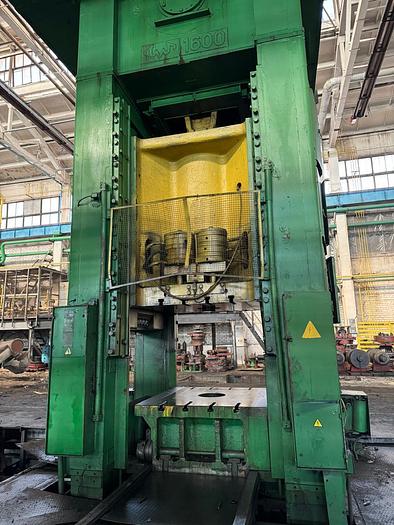

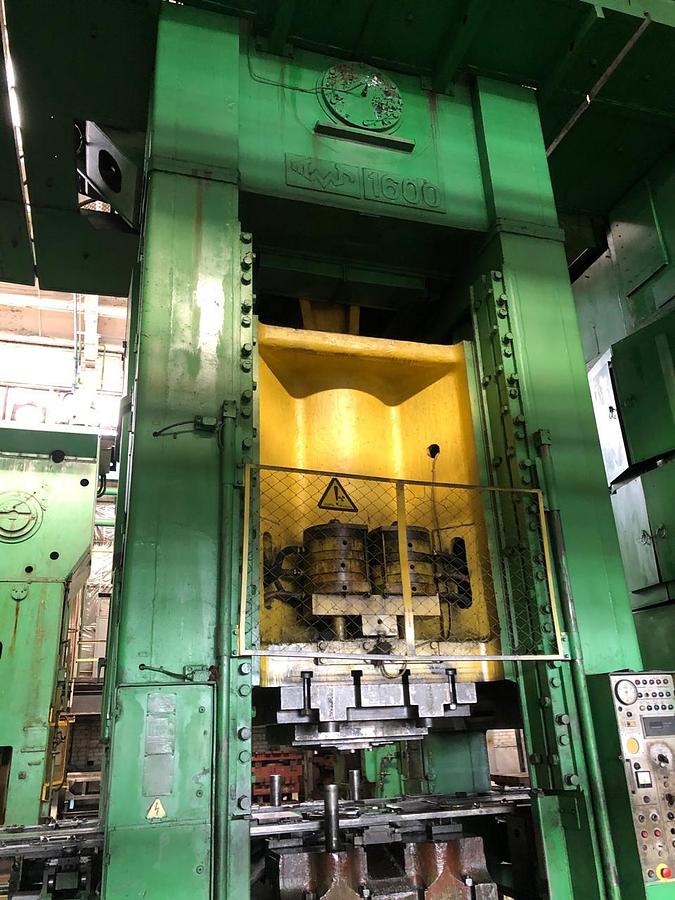

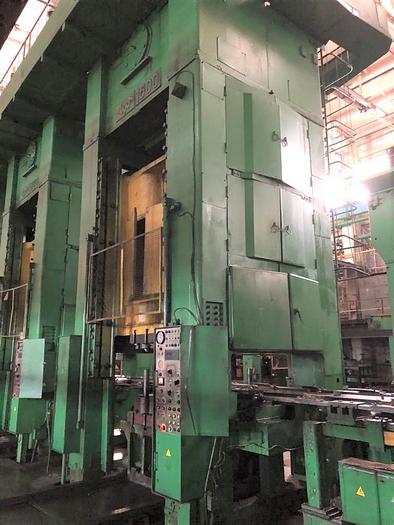

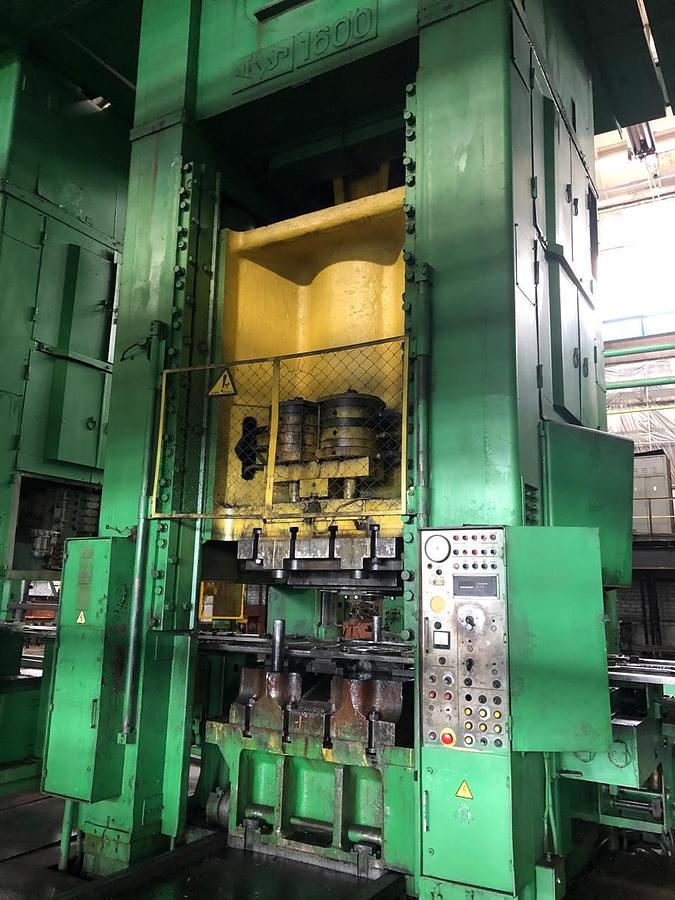

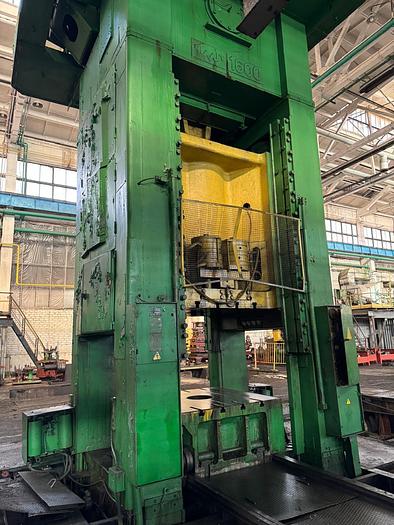

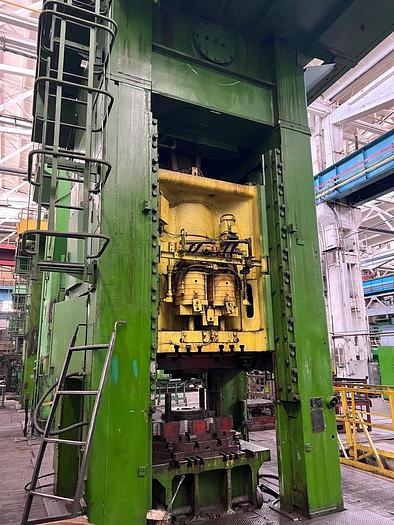

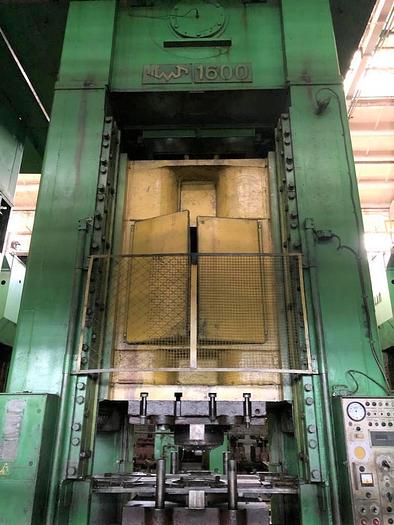

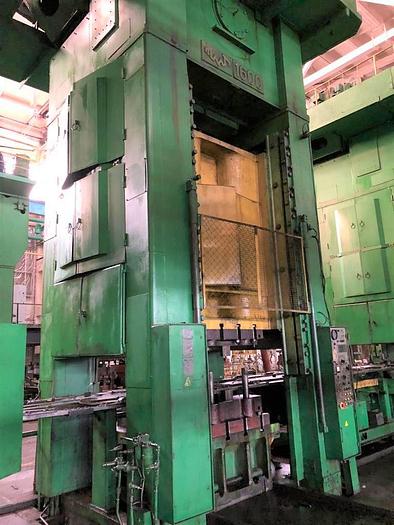

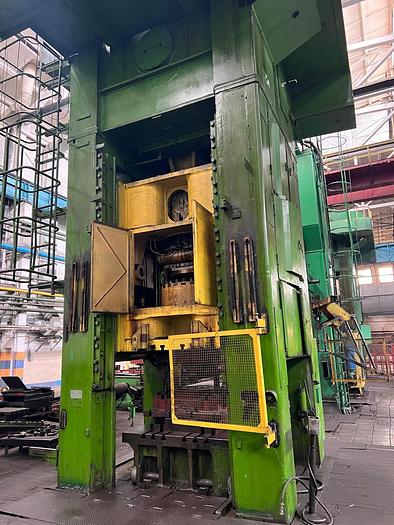

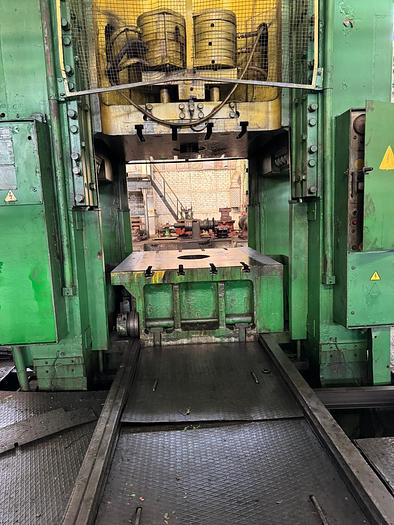

1600 tons Press Trimming TMP Voronezh Russia KB2542

Capacity : 1600 tons,

Ram stroke : 400 mm,

No of ram strokes per minute (continuous) : 16,

No of ram strokes per minute : 12,

Shut height : 870 mm,

Adjustment distance between table and ram : 220 mm,

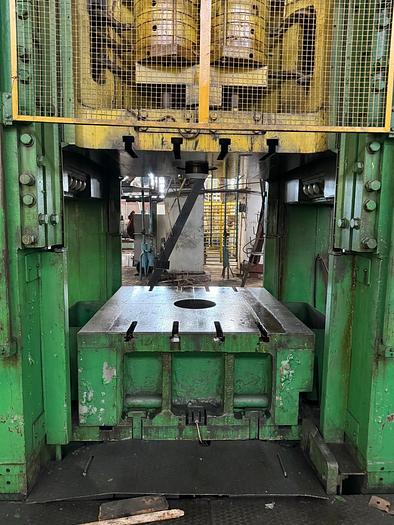

Table size :

Left to right : 1600 mm,

Front to back : 1600 mm,

Ram size :

Left to right : 1600 mm,

Front to back : 1600 mm,

Opening in table :

Left to right : 1000 mm,

Front to back : 1000 mm,

Window size in columns : width : 1650 mm, height : 1550 mm,

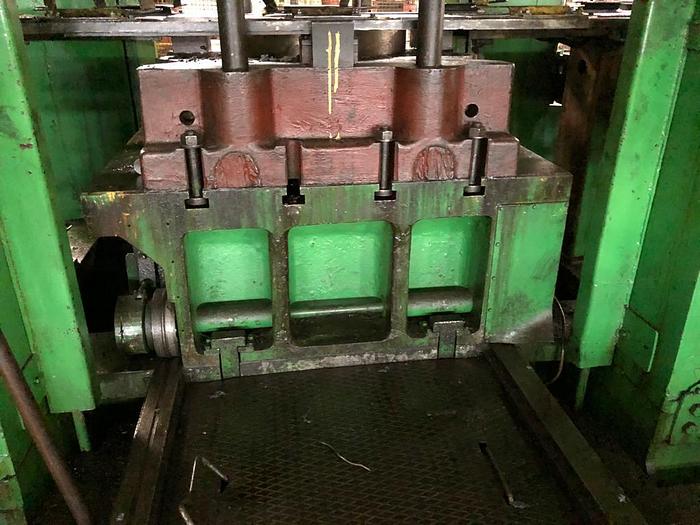

Height of the front moving table : 650 mm,

Ram ejector capacity : 32 tons and stroke : 100 mm,

Max weight of the die on the ram : 5 tons,

Max weight of the die total : 10 tons,

Main electric motor power : 110 kW,

Press overall dimensions :

Left to right : 4670 mm,

Front to back : 4670 mm,

Height total : 8110 mm,

Weight approx. : 148 tons.

Qty No. : 3 Nos.
