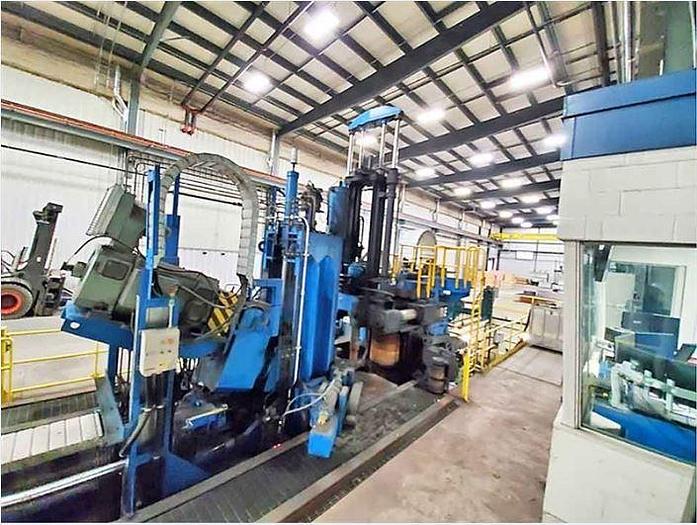

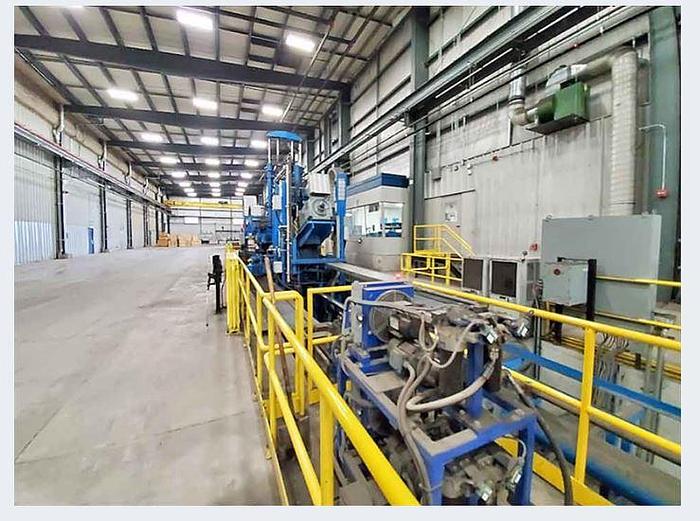

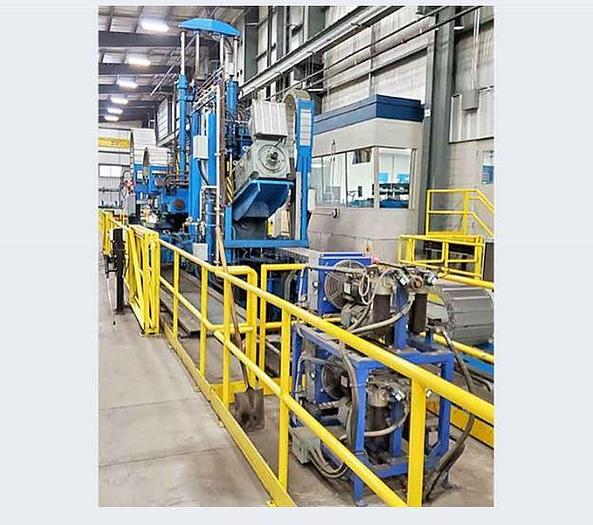

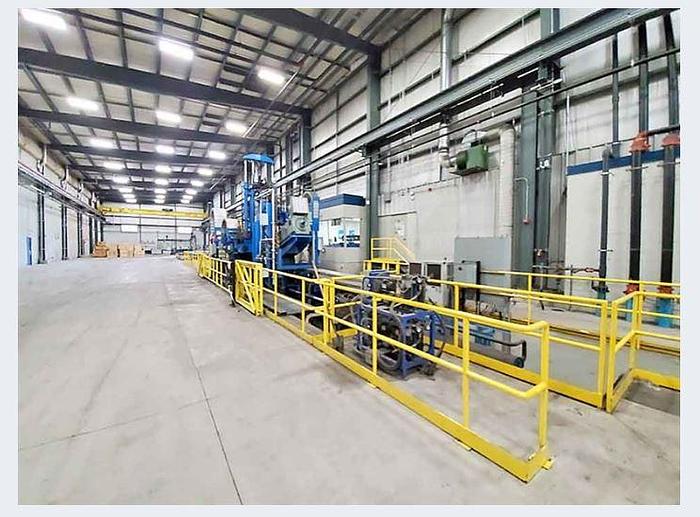

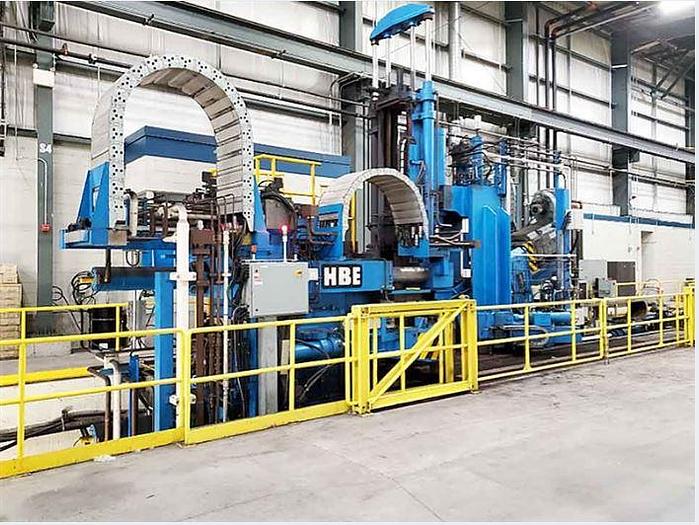

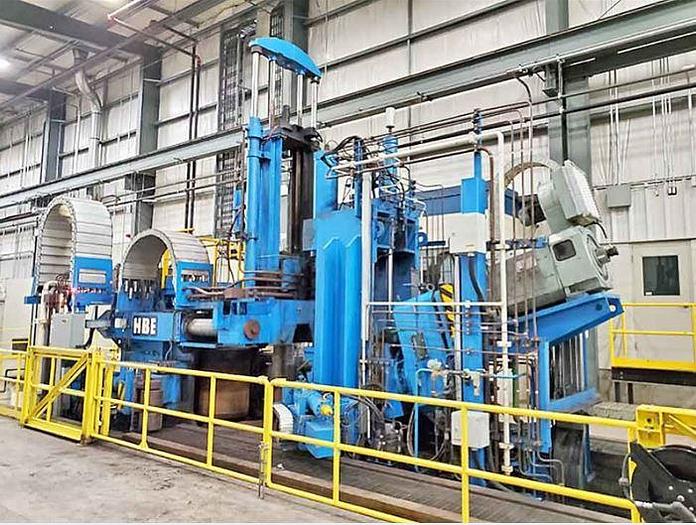

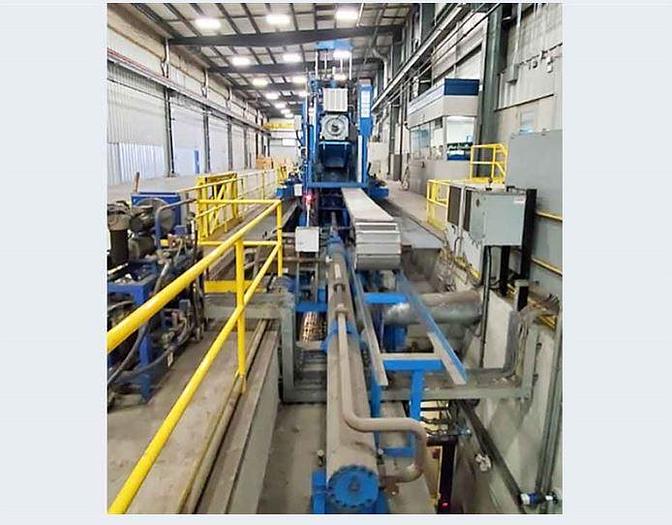

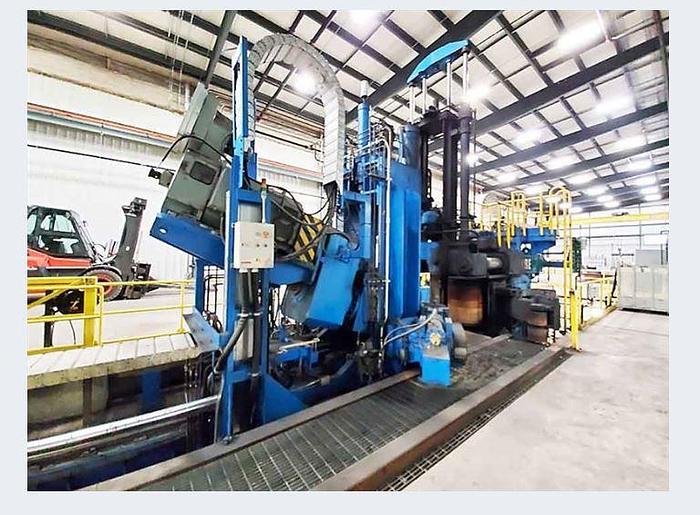

Ring Rolling Machine HBE
Specifications
| Manufacturer | HBE |
| Year | 2016 |
| Condition | New |
| Stock Number | MA2111 |
| Item condition | New & Little Used |
| Capacity tons | 4000 |
Description
Dia : 4000 mm,
Height : 1000 mm,
Radial : 250 tons,
Axial : 200 tons,
Min dia : 400 mm,
Min ring height : 100 mm,
Main roll dia : 820 mm,
Main roll height : 1095 mm,
Axial rolls angle of cone : 35º,
Number of main roll motors, current type & power of each :(1) @ 630kW DC (845hp),
Number of axial roll motors, current type & power of each : (2) @ 400kW DC each (536hp ea),
Total electrical power : 1,430 kW,
Operating pressure : 330 Bar,
Machine length : 17975 mm,
Machine width : 4190 mm,
Machine height above floor : 5470 mm,
Additional info:
Max Ring Weight : 10000 kgs (22,000 lbs),
Rolling speed : 0.33 - 1.50 mtrs/sec,

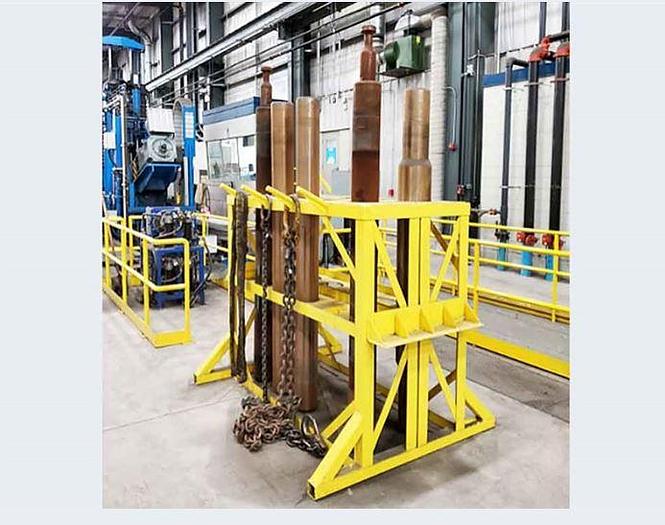

Mandrel Roll dims : 2245 mm length x 170 mm diameter,
Mandrel horiz sliding : 800 mm,
Axial Roll horiz sliding : 4010 mm,
Upper Axial Roll vertical sliding : 1020 mm

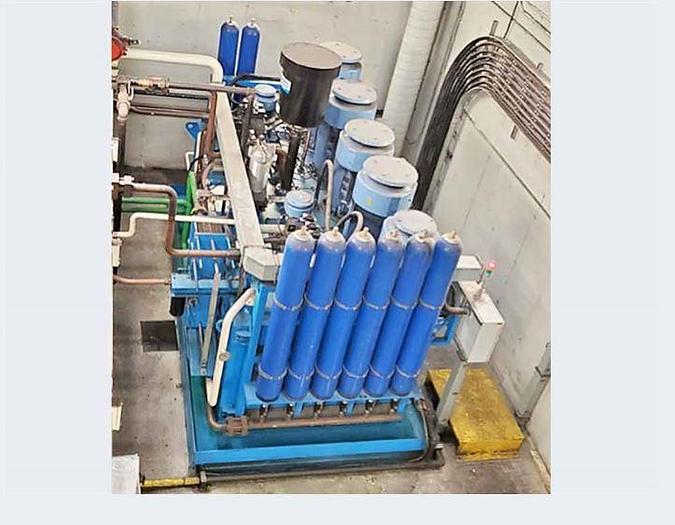

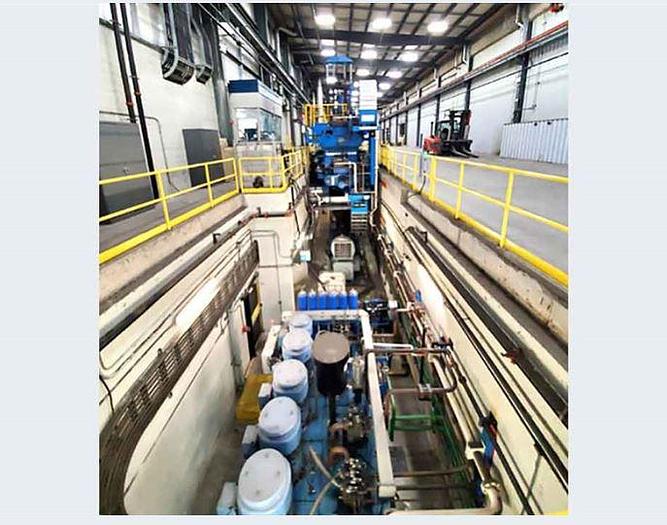

Hydraulic System:
Max Pressure: 330 Bar
Main Pumps: Oilgear Fixed Displacement Axial Piston Pumps
Pilot Pump: Oilgear Variable Displacement Axial Piston Pumps
Cooling & Filtering Pump: Vane Pump
Manifold Blocks and components: Parker
Servo Valves and Controller: MOOG
Main Tank: 5,000 liters
System Filter & Servo Filter: Hydac
Hydraulic Fluid: AW46
Electrical Control System:
PLC : Siemens S7

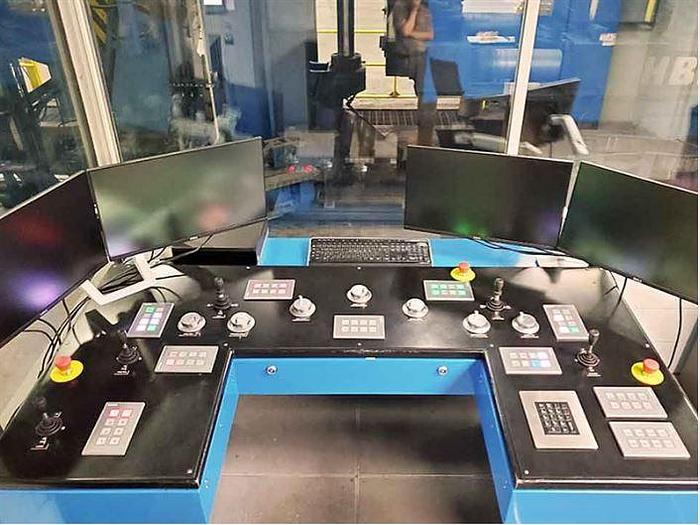

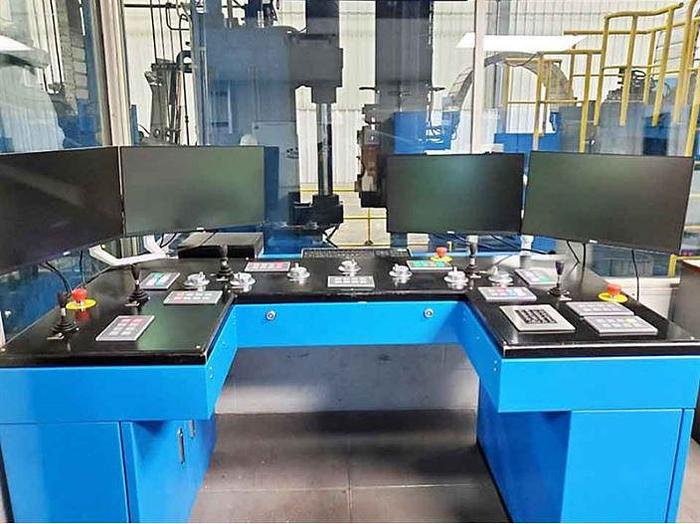

HMI : (4) Dell 24” Touch Screens (P2418HT (210-ALCS)
Modes : Fully Automatic
Measuring System : Laser (glycol cooled)

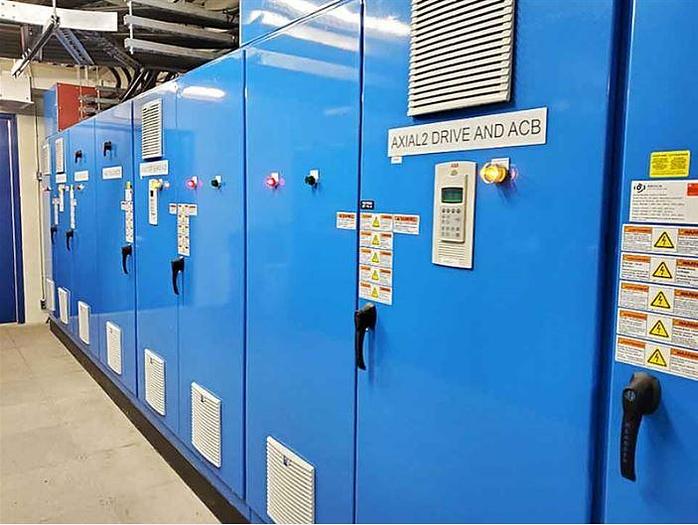

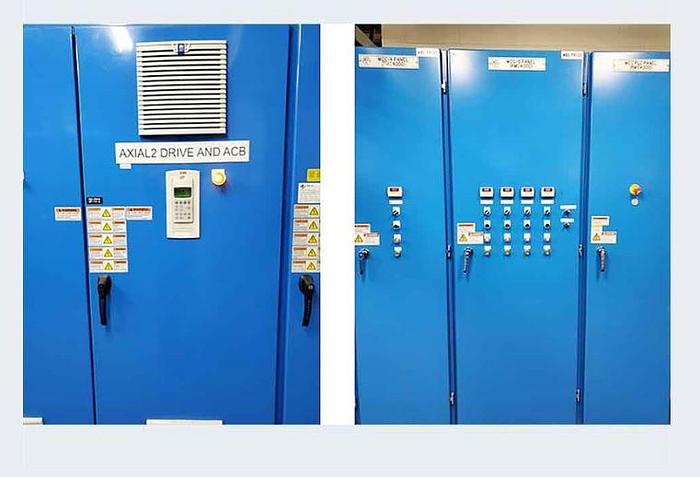

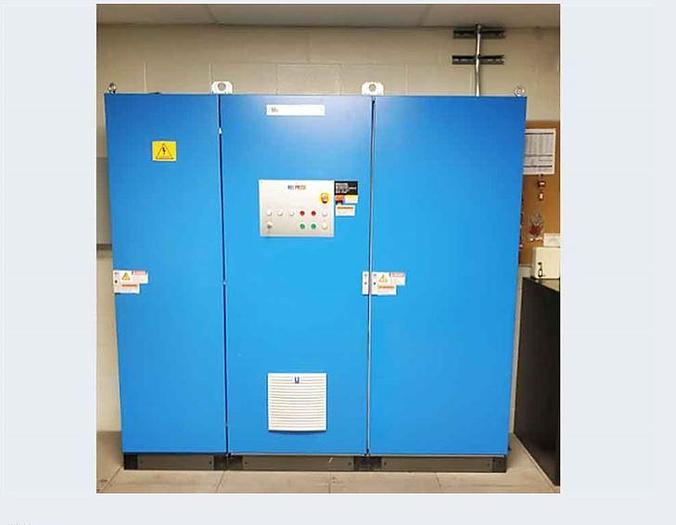

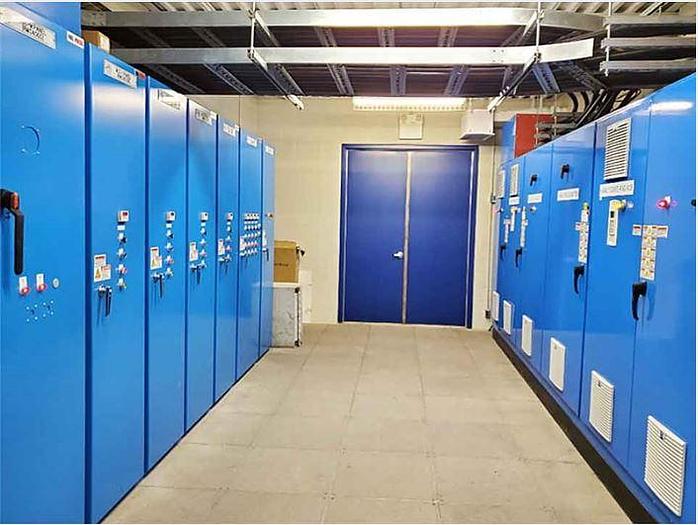

Control Panels:
PLC Panel : 30 Amp Feed
DC Drive Panel : (2) x 1600 Amp, 600 Volt Feeds
Main Control Panel Laser Panel : 1200 Amp, 600 Volt Feed

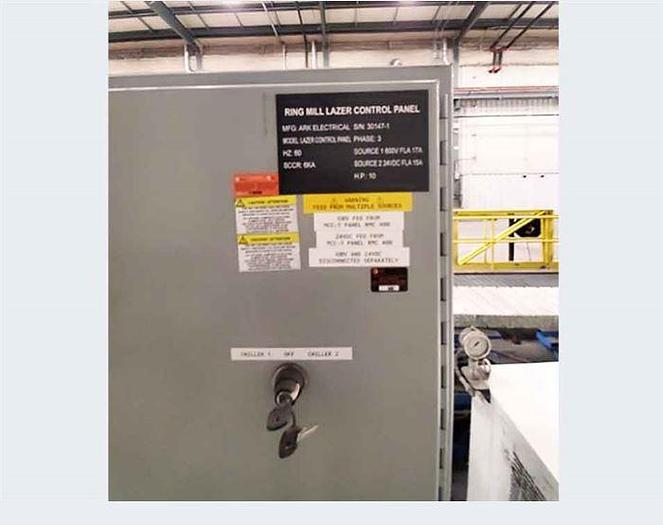

Laser Panel : 20 Amp, 600 Volt Feed
Cooling Water Required:
Temperature : 30º - 32º C,
Pressure : 5-6 bar,
Flow Rate : 1000 litres / minute,
P.H. : 7.5 - 8.2,
Compressed Air Requirements :
Pressure : 5-7 bar,
Temperature : 20º - 25º C,
Flow Rate : 800 litres / min.
This Mill was only ever run light and intermittently and is, therefore, in "Like New" condition.

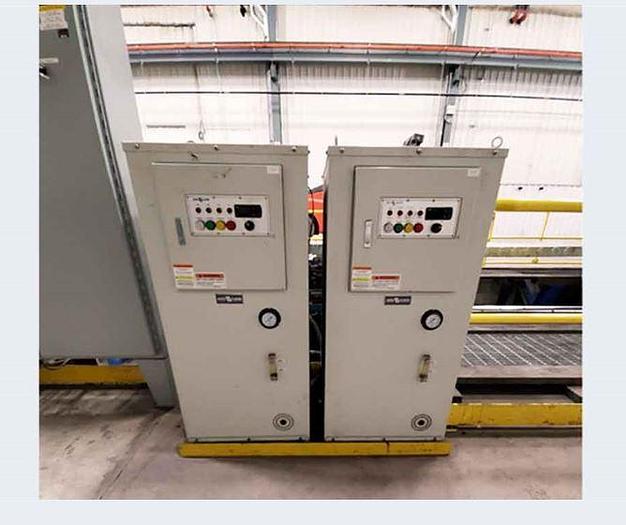

Equipment to cool laser is included.
- Available for immediate inspection and delivery
- Still installed and under power for inspection
- Exceptionally fine condition
