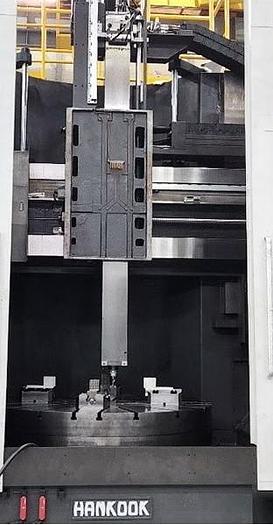

Lathe Vertical Turning Hankook VTC 200 E

Faceplate diameter : 2000 mm,

Swing diameter : 2500 mm,

Turning height : 2000 mm,

Steering Fanuc : 32i-A,

Max. Torque : 40,403 Nm,

Cutting Force : Max. 3,000 kgf,

Max. workpiece weight : 12 tons.

Table :

Table diameter : 2000 mm,

Table speed : 1.0 - 200 rpm,

Drive power - table : 45/55kW.

C - axis :

Resolution : 0.001°,

Feed rate : 0 - 900°/min,

Max table speed : 2.5 rpm.

Turret slide :

Shank diameter : 32 mm,

Spindle cone : ISO 7/24 / No.50,

Spindle speed : 30 - 3,000 rpm/-1,

Drive power - tool spindle : 18.5 / 22kW,

Max. Torque : 280 Nm,

Carriage cross-section : 240 mm,

Traverse paths :

X axis : 1500 mm,

Z-axis : 1500 mm,

Transom adjustment : 1000 mm,

Tool changer:

Tool holder : MAS BT 50,

Number of tool places : 24 (12 + 12) positions,

Maximum tool weight : 50.0 kg,

Tightening bolts : DIN 69872.50.

Feeds:

Rapid traverse (X / Z) : 10.0 m/min,

Feed rate : Max. 10,000 mm/min,

Rapid traverse of the crossbar : 300 mm/min,

Total power requirement : 150kVA,

Machine weight approx. : 45 tons,

Space requirement approx. : 9.00 x 7.00 x 8.00 m.
