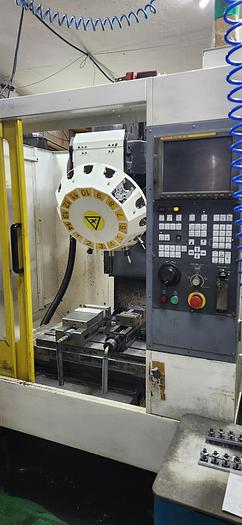

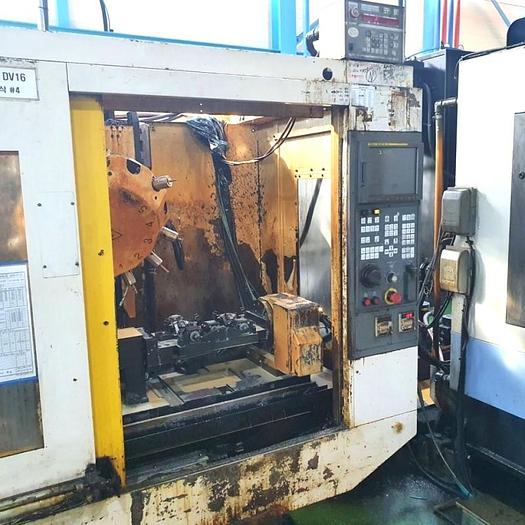

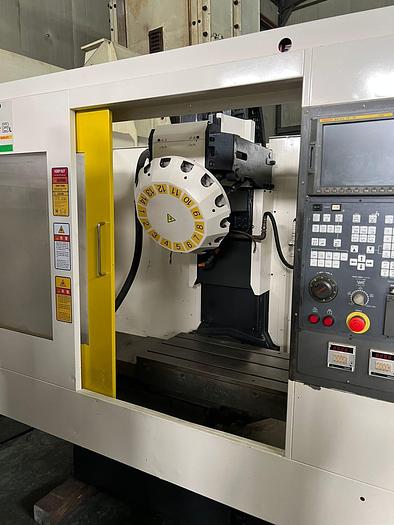

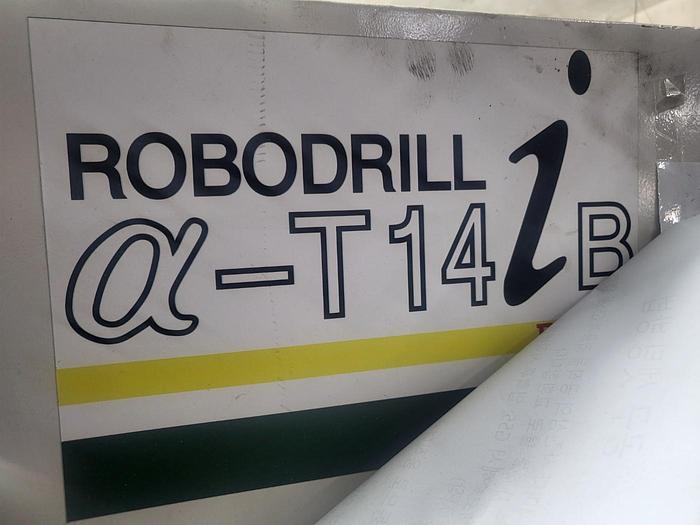

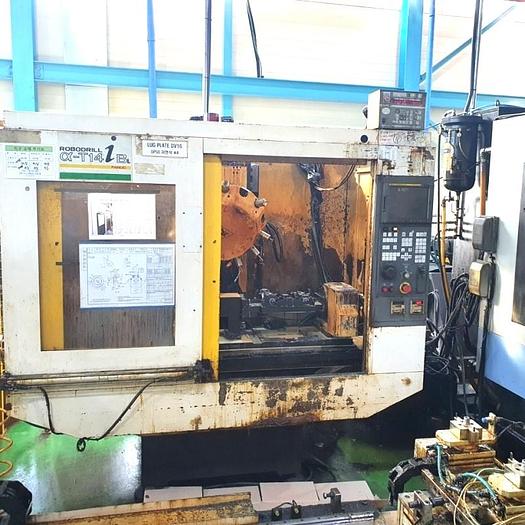

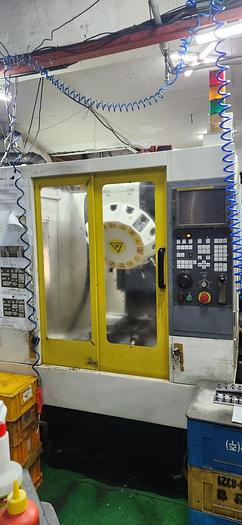

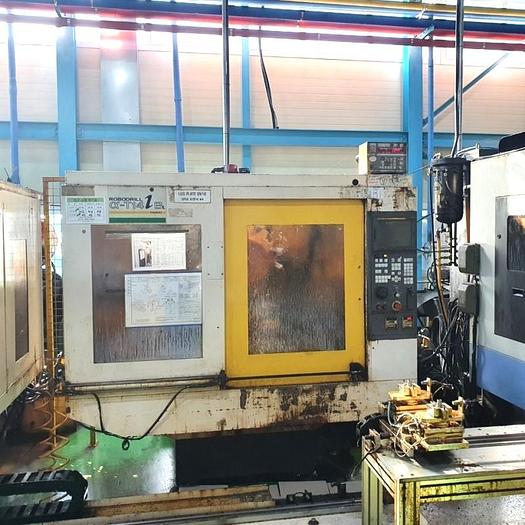

Drill Tapp Center Fanuc α-T14i BL

Drill Tapp Center

14 tools.

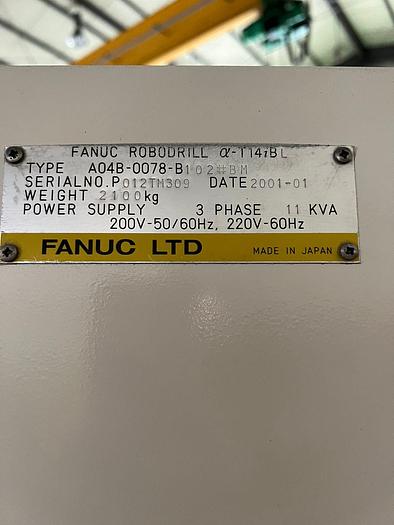

Weight : 2100 kg,

Quantity no. :2

Traverses :

X Axis : 700 mm,

Y Axis : 400 mm,

Z Axis : 300 mm,

Spindle Nose to Worktable :

Minimum : 250 mm,

Maximum : 550 mm,

Work Table :

Table working surface :650 x 400 mm,

Table loading capacity (uniform load) : 200 kg,

Table surface configuration :

 Number of T slots: 3,

Width : 14 mm,

Pitch : 125 mm,

Machine Dimensions:

Width : 1550 mm,

Depth : 1900 mm,

Height min/max : 2067/2367 mm,

Weight (approximately) : 2000kg,

Spindle :

Speed range : 100 – 8,000 rpm,

Taper BT 30

Feedrates

Rapid traverse rate : 48 m/min,

Feedrate1 – 30000 mm/min,

Toolchanger

Type of tooling MAS BT 30,

Tool storage capacity14 Tools,

Tool diameter : 80 mm,

Tool length : 200 mm,

Tool weight 2kg (total 15kg),

Tool change time – tool to tool0.9 secs (2kg),

CNC Control SystemFanuc Series 16iM,

Electrical Supply415V, 3 ph , 50Hz,

Compressed Air Supply5kgf/cm2 (100 litres/min).
