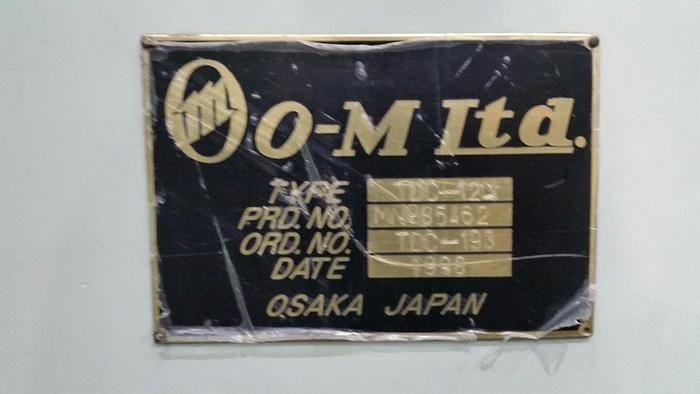

Lathe Vertical Turning CNC O-M Ltd TDC-12N

CNC VTL with C-axis (Milling)

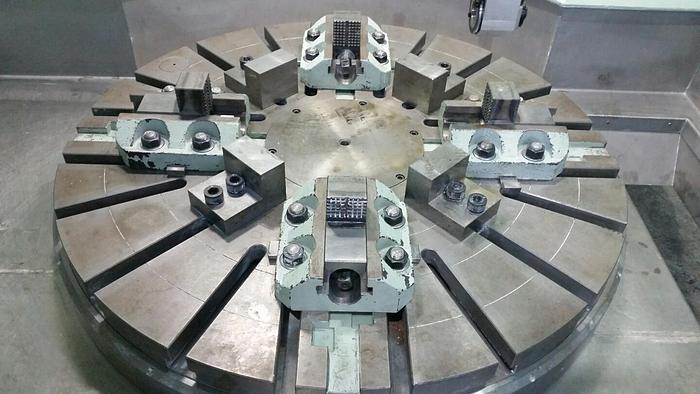

Table dia. : 1250 mm,

Swing dia. : 1600 mm,

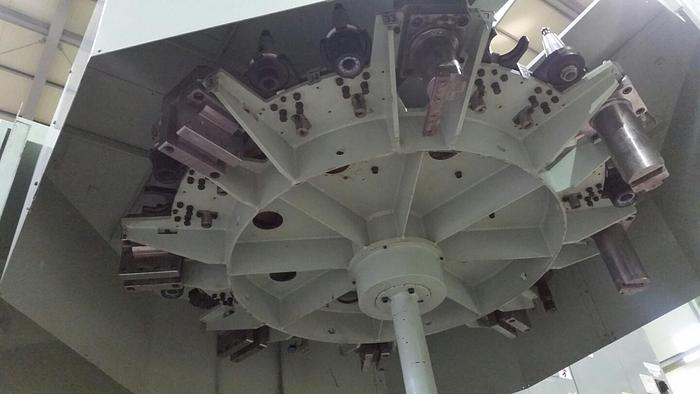

ATC :

Cutting : 8 tools,

Milling : 16 tools,

Height from table top to Cutting Tool Holder end : 920 mm,

Height from table top to Milling Spindle end : 880 mm,

Max. Cutting Height : 1245 mm,

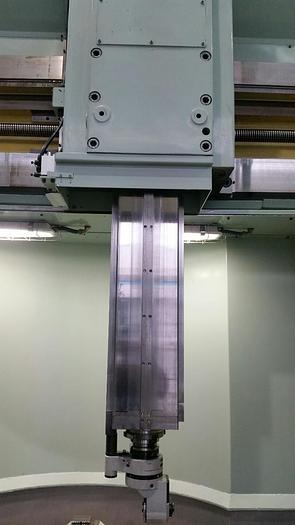

Z-axis : 1100 mm (Ram Up-Down),

Ram size : 210 x 210 mm,

Milling Spindle : 2 ~ 350 rpm,

Tool type : BT 50,

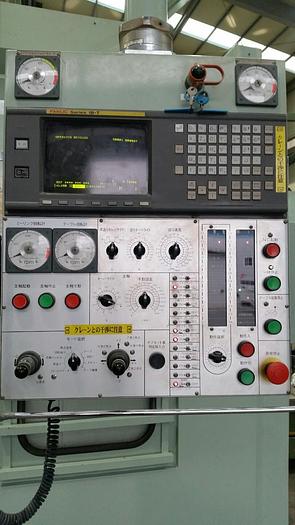

Control : Fanuc-18T,

* Table Motor : AC 30/37 Kw,

* Milling Spindle Motor : AC 11/15 Kw,

* Cross rain fixed type,

* Max. Table load : 8000 Kg,

* Moved to warehouse and completely cleaned/tested.
