Lathe Vertical Turning CNC KDM KTM-16/20

Sold

Specifications

ManufacturerKDM
ModelKTM-16/20
Year2012
ConditionUsed
Stock NumberMA2055
Item conditionGood condition
Capacity tons2000

Description

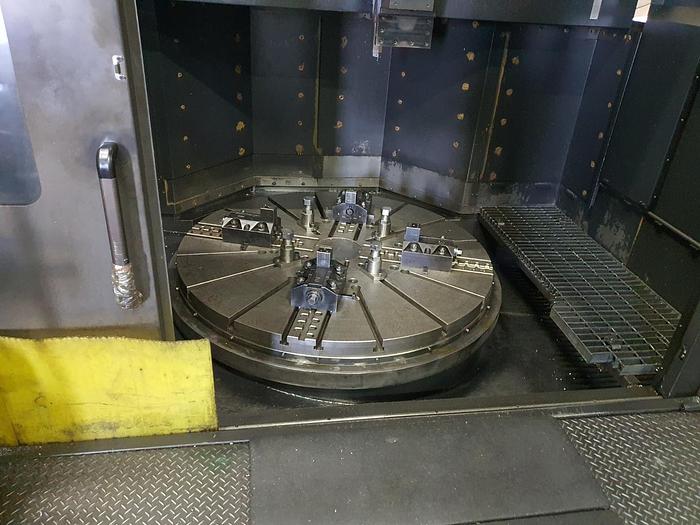

Table Dia. : 1600 mm,

Max. Swing dia. : 2000 mm,

Speec : Max. 250 rpm. (2-steps/Auto),

Load Capacity : 10 tons,

Motor : 37/45 Kw,

Max. Turning Height : 1750 mm,

X-axis : -250 ~ 1780 mm Ram Head L-R),

Z-axis : 1000 mm (Ram Head U-D),

W-axis : 250 mm x 3 steps (Cross Rail U-D),

Ram Size : 240 x 240 mm,

C-axis : 0.001°,

Milling Spindle : ~ 2000 rpm,

ATC : 16 tools,

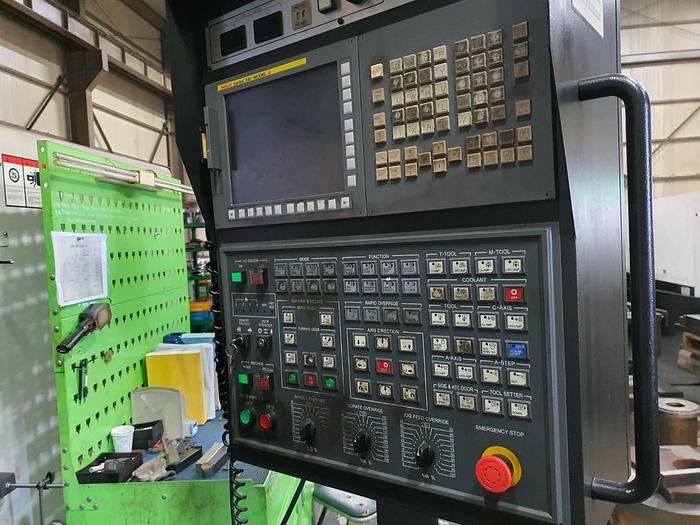

Control : Fanuc 32i-MA,

Chip conveyor.
