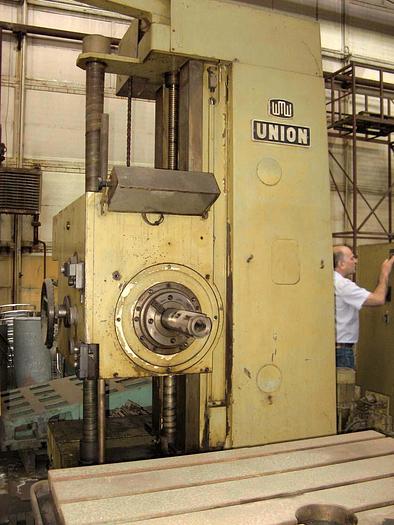

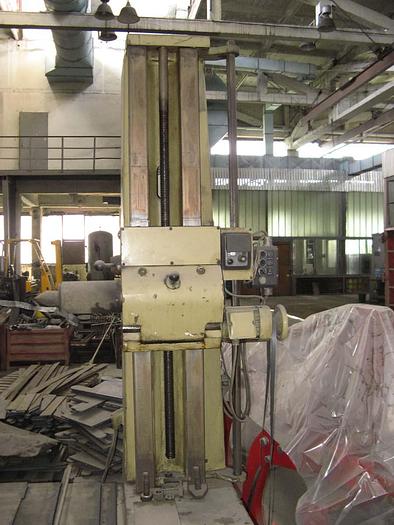

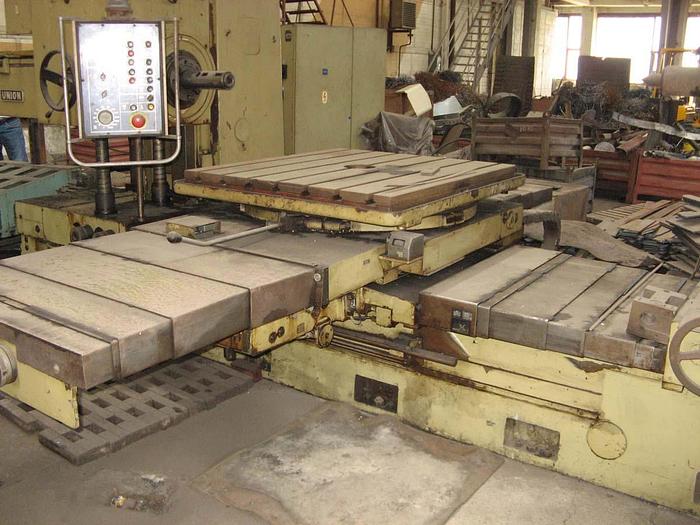

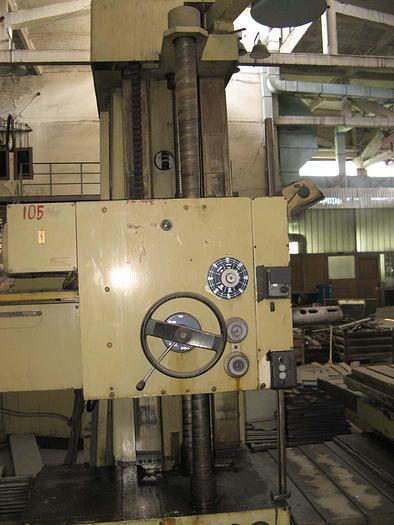

Borer Horizontal Table Type BFT 90/3-1
Sold
Specifications

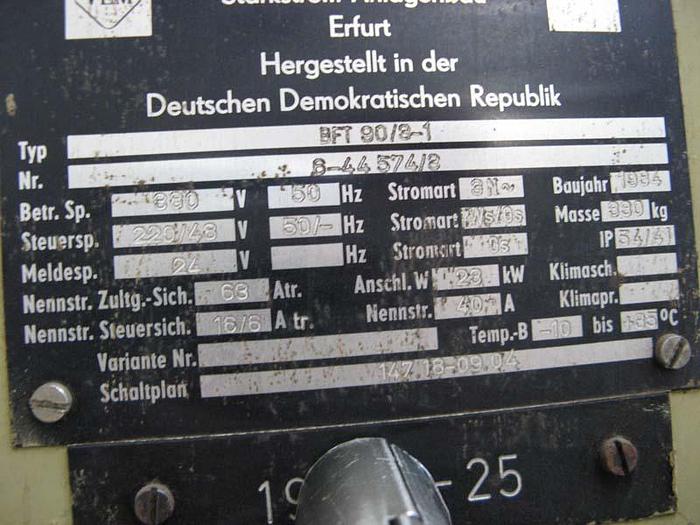

Manufacturer | Abe Seiki,Japan |
Model | BFT 90/3-1 |
Year | 1984 |
Condition | Used |
Stock Number | MA2040 |
Item condition | Good Condition |
Capacity tons | 90 |
Description
Spindle diameter : 90 mm,
X axis : 1000 mm,
Y axis : 1000 mm,
Z axis : 1600 mm,
Spindle taper morse : 5,
Spindle travel (W) : 710 mm,
B axis degrees : 360°,
Table size : 1000 x 1120 mm,
Max. work piece weight : 2500 kg,
Spindle speed range : 8...1600 rpm,
Feed on axis 1 - 2.500 mm/min,
Rapid feed on axis 3.150 mm/min,
Motorpower 11 kW
Machine weight : 9 tons.

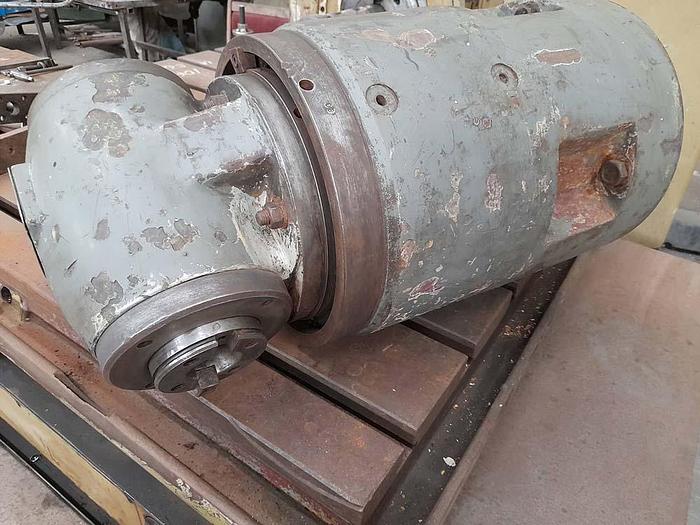

Vertical Milling head + 300 mm extension.

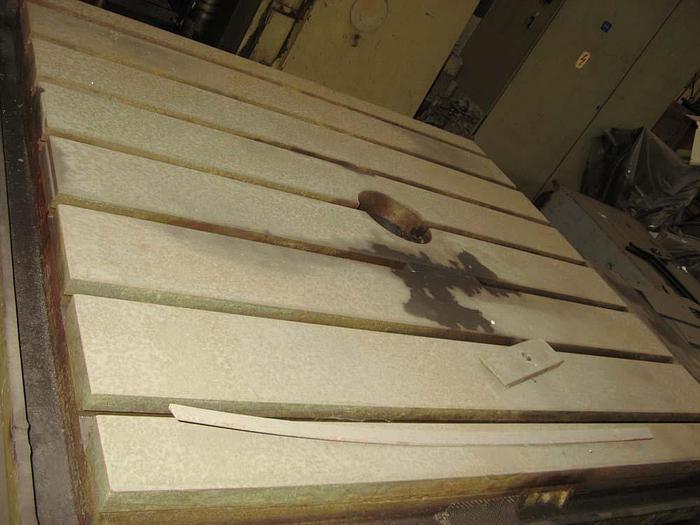

Vertical rectangular table with 6 T-channels.
