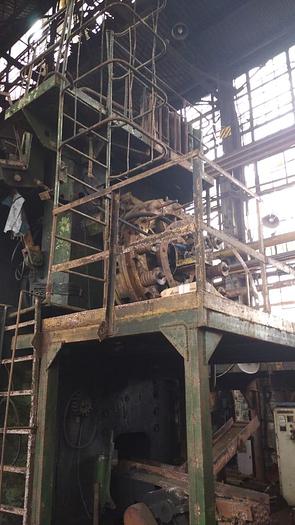

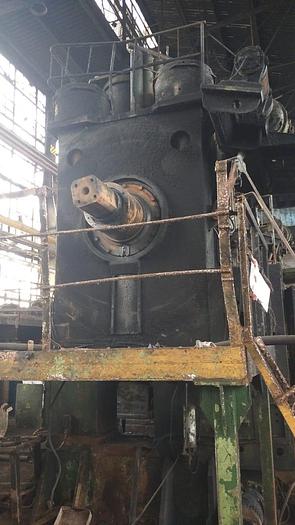

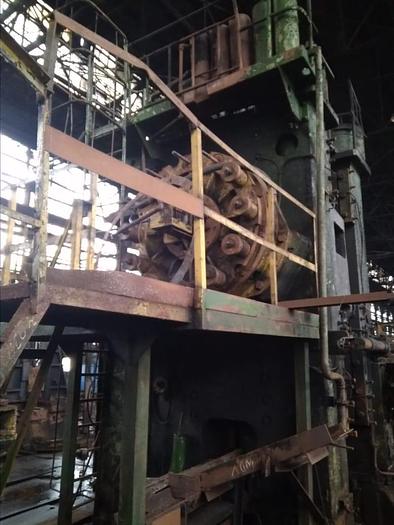

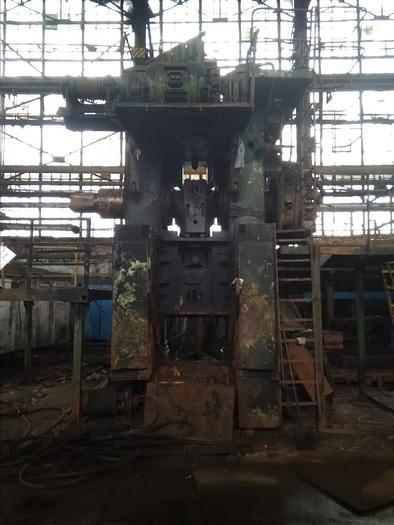

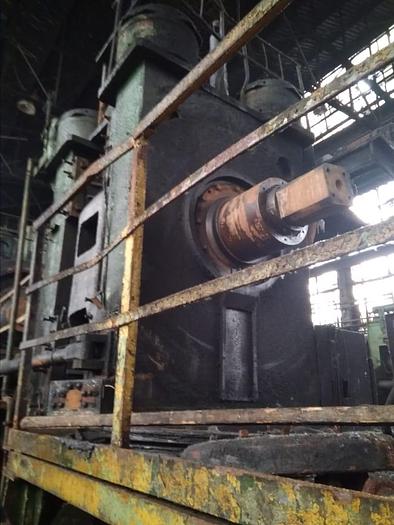

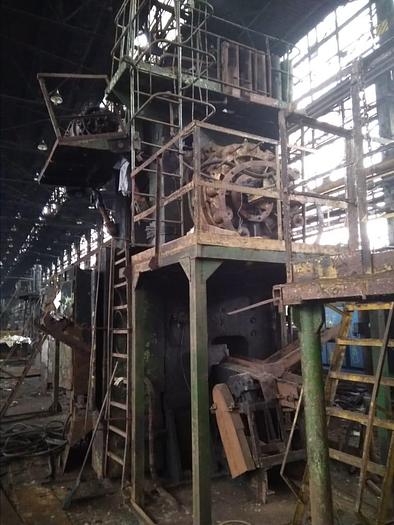

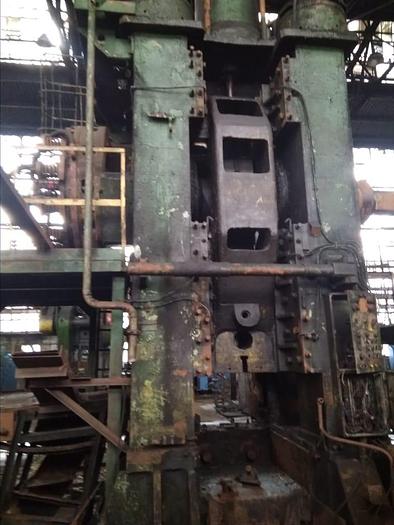

Press Hot Forging TMP Voronezh Russia KB8542

Capacity : 1600 tons,

Slide stoke : 300 mm,

Number of slide continuous stroke per minute : 85,

Minimum distance between bed and slide when in down position : 660 mm,

Size of adjustment of distance between a table and slider : 10 mm,

Slide dimensions :-

Left to right : 860 mm,

front to back : 910 mm,

Height above bed level : 450 mm,

Bed dimensions :-

left to right : 940 mm,

front to back : 1200 mm,

Course of the top ejector : 50 mm,

Force of a top ejector : 63 kN,

Course of the bottom ejector : 50 mm,

Force of a bottom ejector : 100 kN,

Main electric motor power : 90 kW,

Press overall dimensions

Length : 4850 mm,

Width : 3515 mm,

Height : 5570 mm,

Weight of machine : 120 tons.

Some minor parts of the press is missing:

1. Clutch plate with pads (2 pcs.)

2. Steel clutch plate (1 pcs.)

3. Drive belt (9 pcs.)

4. Upper ejector (in slider)

5. Receiver

6. The upper ejector mounting bracket on the slider has been cut off.

7. The top and bottom of the wedge table are welded together, the screws are cut off.

8. The springs of clutch cover are missing.

9. The springs of brake cover are missing.
