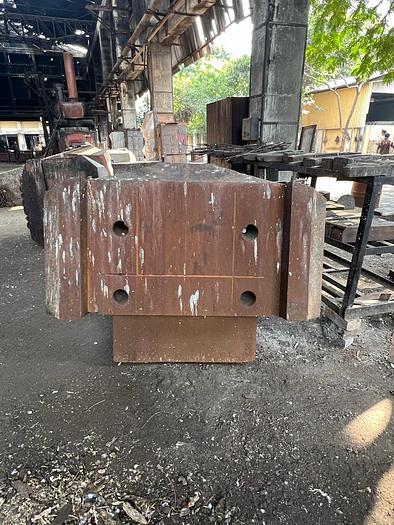

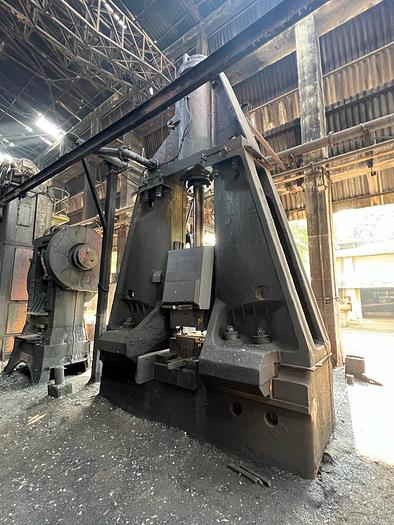

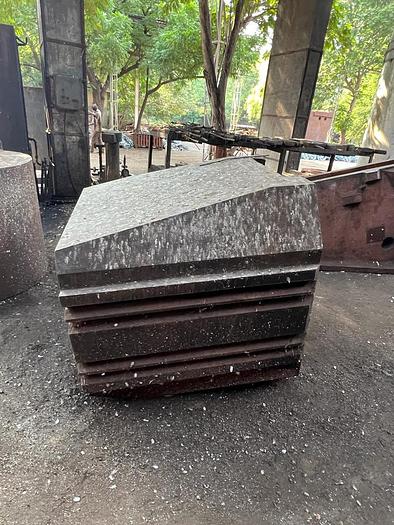

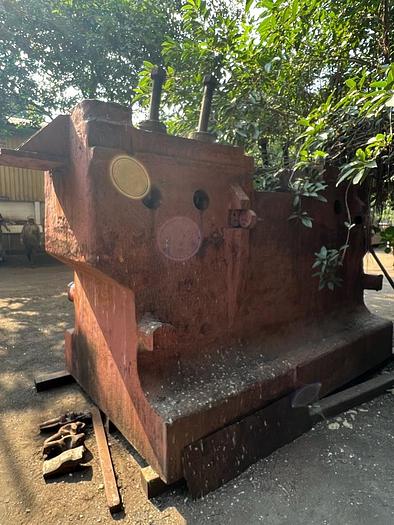

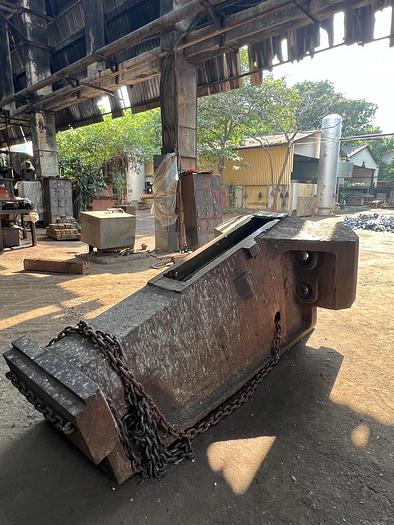

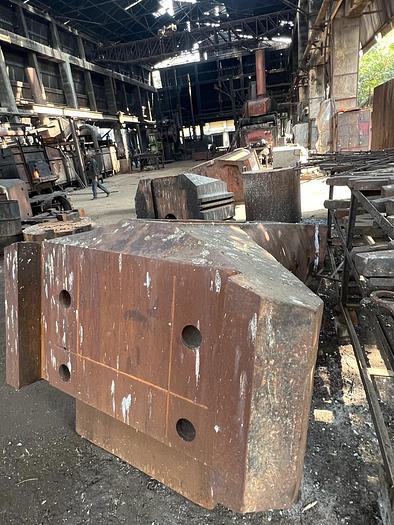

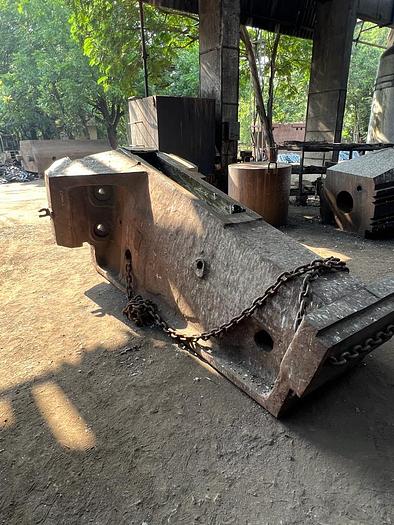

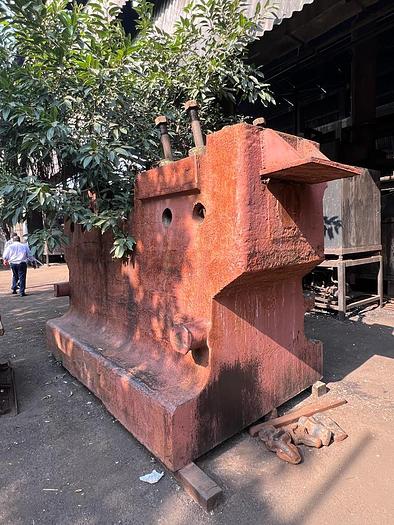

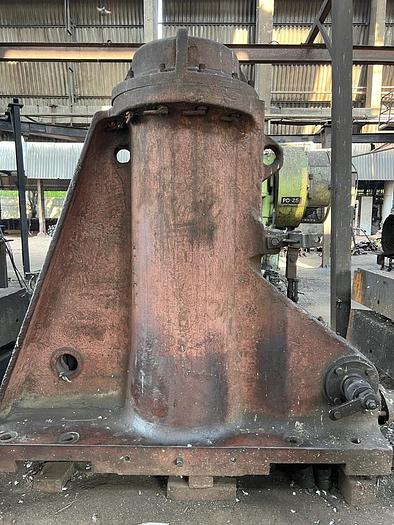

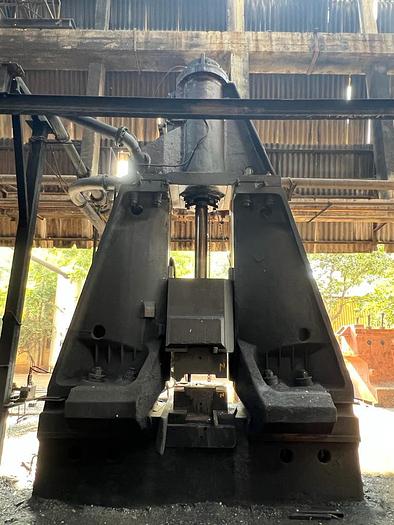

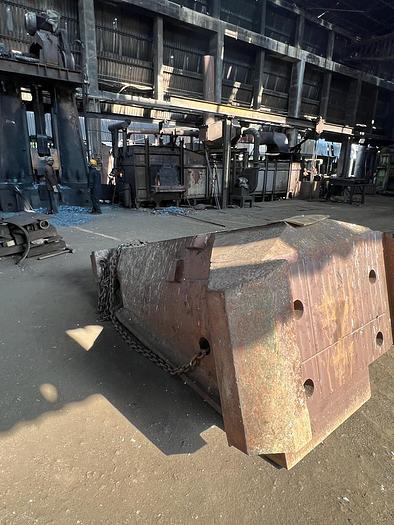

Hammer Forging Pneumatic M2145

Capacity : 3.15 tons,

Nominal mass of drop parts : 3150 kg,

Rated striking energy :80 KJ,

Max. no. of blows/min. : 56,

Ram stroke : 1250 mm,

Uprights distance : 710 mm,

Ram dimensions : 750 mm,

Die holder : 1000 mm,

Min. die holder to ram distance : 340 mm,

Steam/air pressure : 0.7-0.9 MPa,

Overall dimensions : 3820 x 1800 x 5340 mm,

Mass (less anvil block) : 25 tons,

Mass of anvil block : 63 tons.
