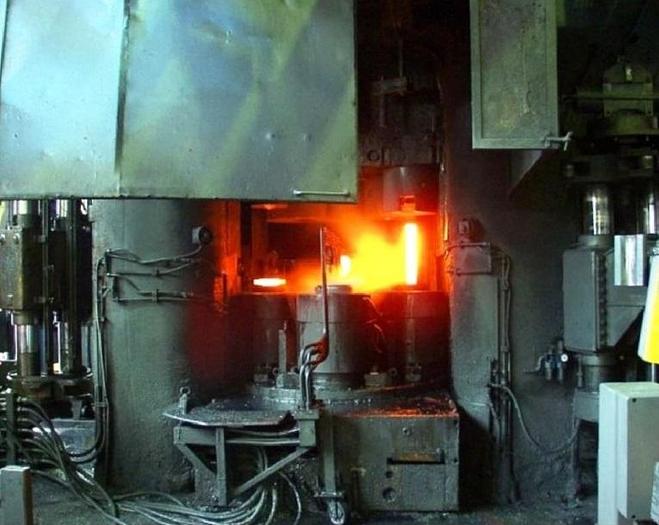

4000 tons Press Friction Screw Lasco SKP2500

Nominal force : 2500 tons,

Allowed max. force : 4000 tons,

Blow Die to Die : 5000 tons,

Dia. of screw : 425 mm,

Stroke : 600 mm,

Shut height : 2600 mm,

Table size (left to right) : 1720 mm,

Table size (front to back) : 1800 mm,

Ram (left to right) : 2100 mm,

Ram (front to back) : 1320 mm,

Upper ejector power : 40 t,

Upper ejector stroke : 250 mm,

Driving power : 900 kw,

Dimensions : 3400 x 4600 x 9700 mm,

Height of machine above floor : 8200 mm,

distance between the columns : 1720 mm,

Total weight : 335 tons,

Mode of operation - Mechanical.
