Press Forging Open Die Hydraulic 12000/16000 KN
Specifications
| Manufacturer | Siempelkamp |
| Model | 12000/16000 KN |
| Year | 1986 |
| Condition | Used |
| Stock Number | MA2001 |
| Item condition | Good condition |
| Capacity tons | 1600 |
Description

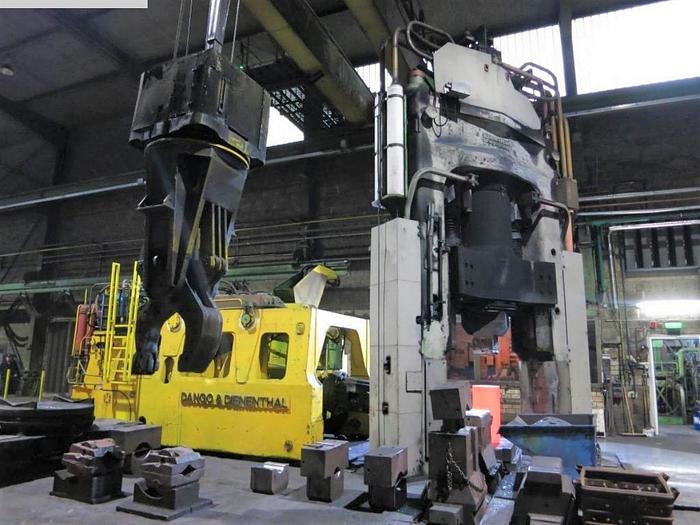

2-Column Push Down Oil Hydraulic Open Die Forging Press with 12 Tonne Dango Nip

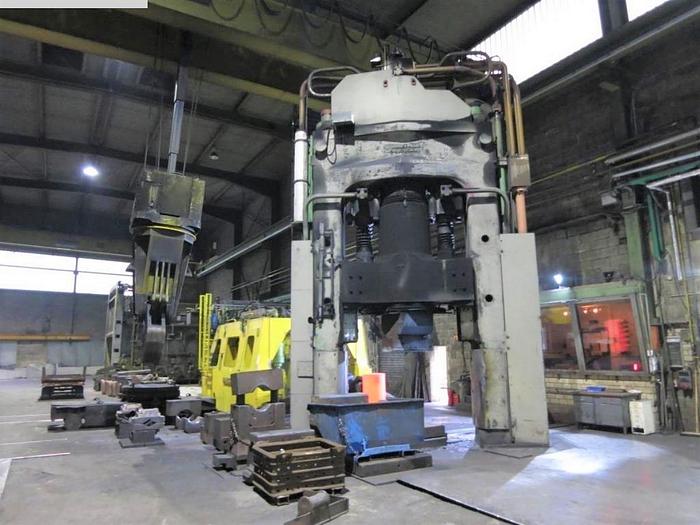

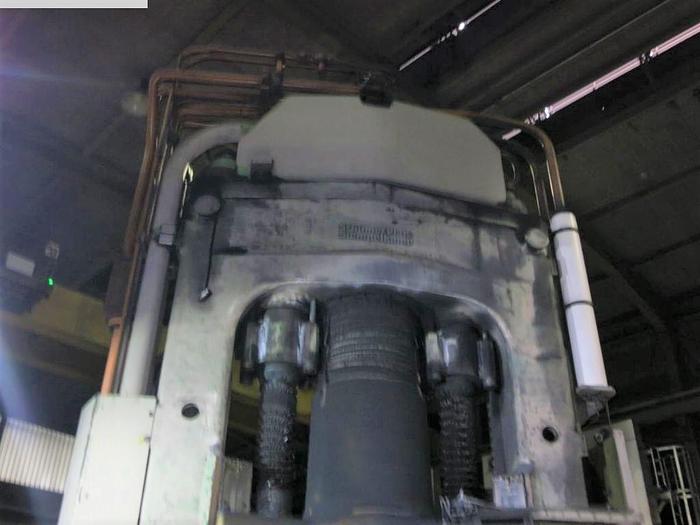

Forging Press - Double Column :
Capacity : 1600 tons,
Stroke : 1000 mm,
Daylight : 3000 mm,
Down speed : 280 mm/sec,
Return speed : 275/346 mm/sec,
Distance between columns : 2520 mm.
No. of main cylinders : 1,
No. of Pull-Back cylinders : 2,
Machine was overhauled.

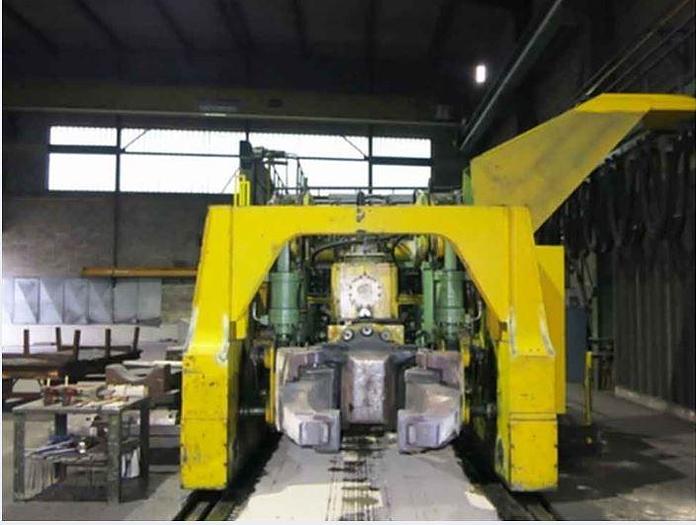

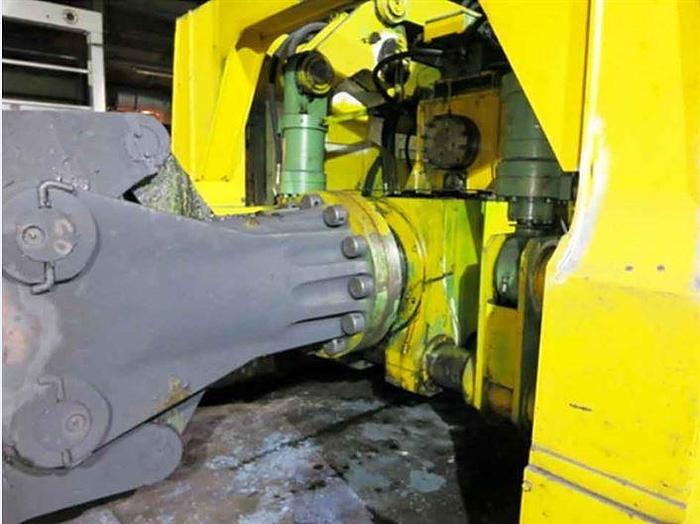

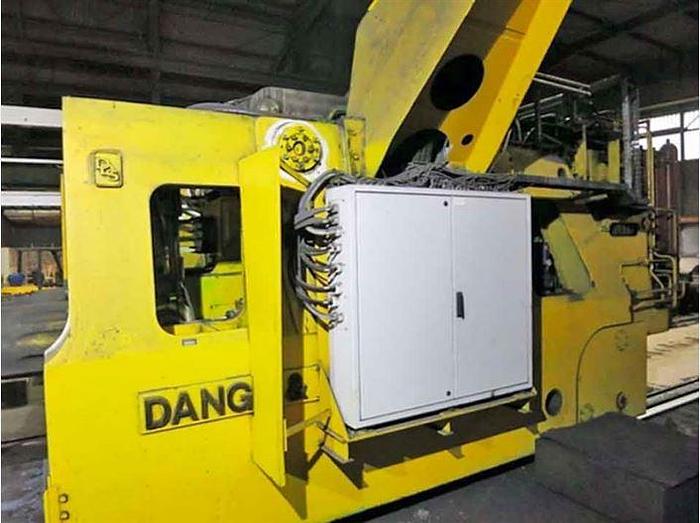

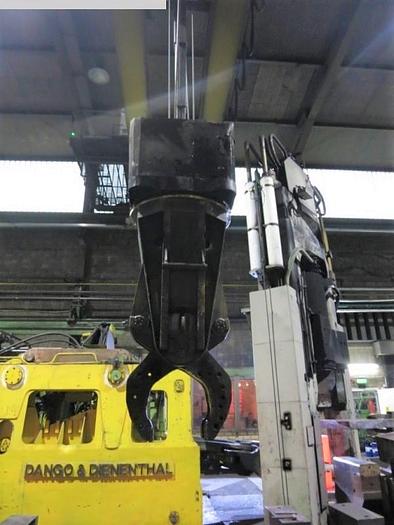

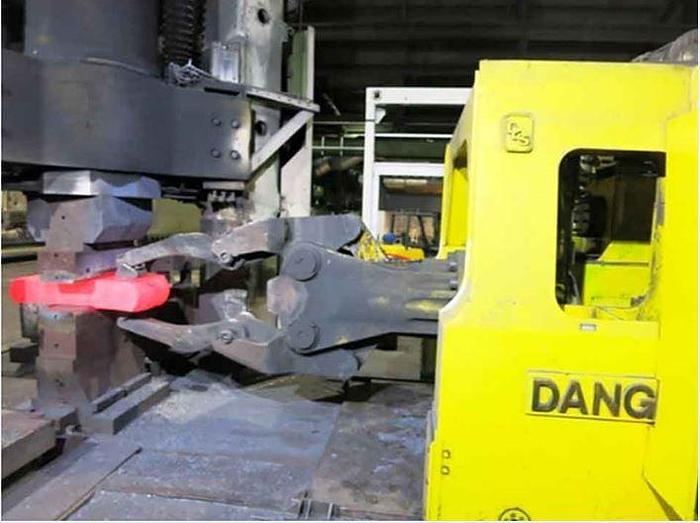

DANGO & DIENETHAL S 30.1 SVS Rail Bound Forging Manipulator
Yom : 1986,
Capacity : 12 tons,
Work piece width : 880 mm,
Total power requirement : 130 kW,
Weight of the machine : 63.3 tons,
Additional information

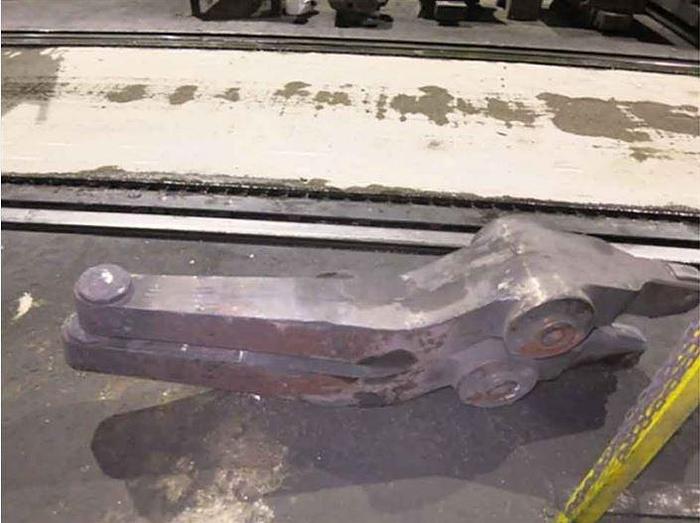

Incline position of tongs upwards : 6.5°,
Incline position of tongs downwards : 12.5°,
Side Shift each side : 200 mm,
Rotary speed of tongs : 2 to 30 rpm,
Driving speed : 0 to 60 mtrs/min.
