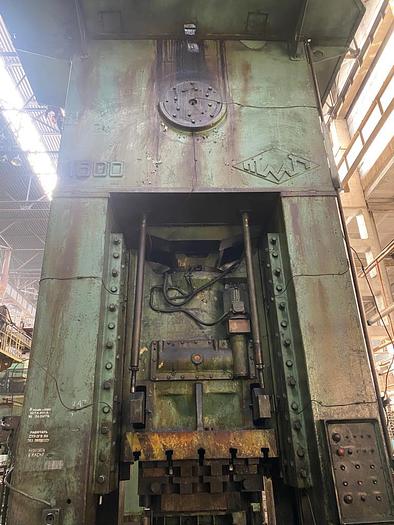

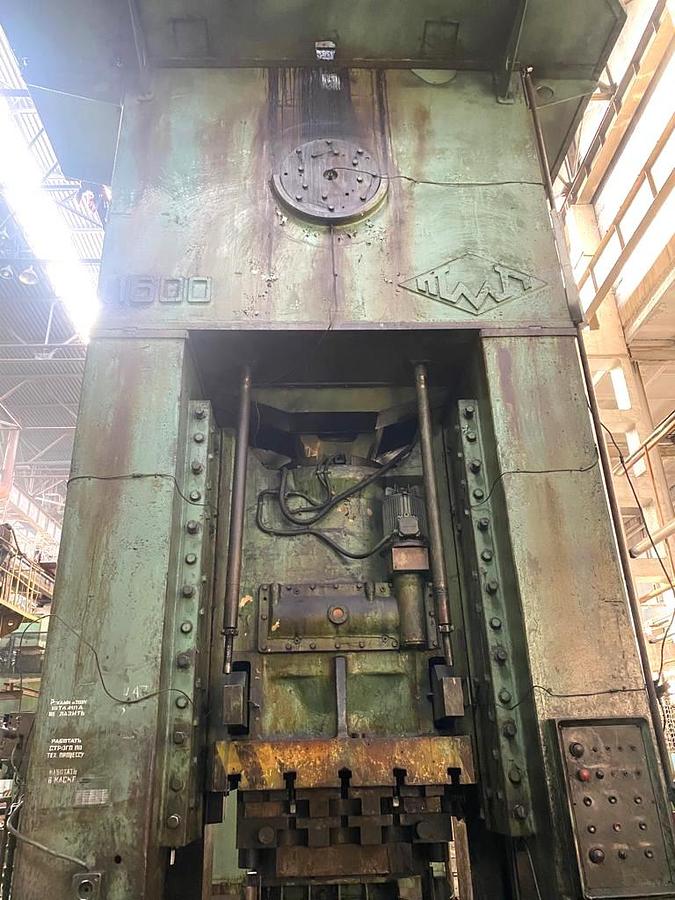

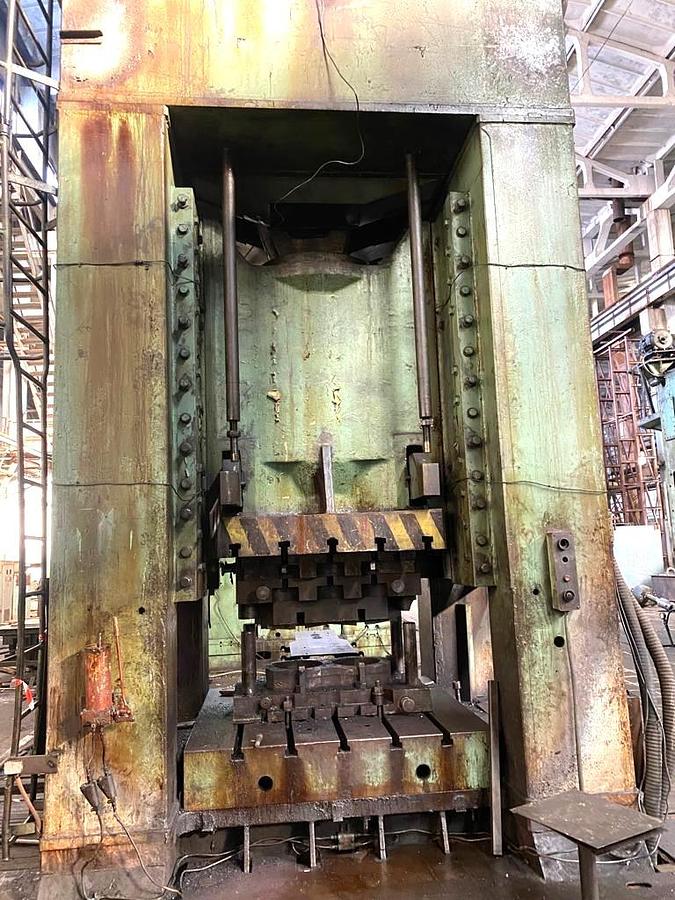

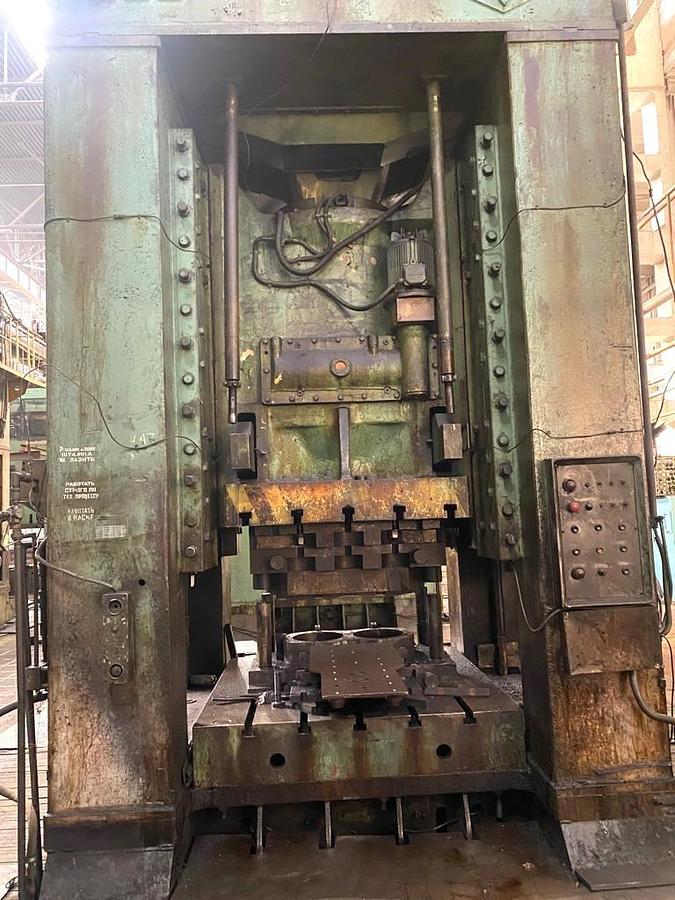

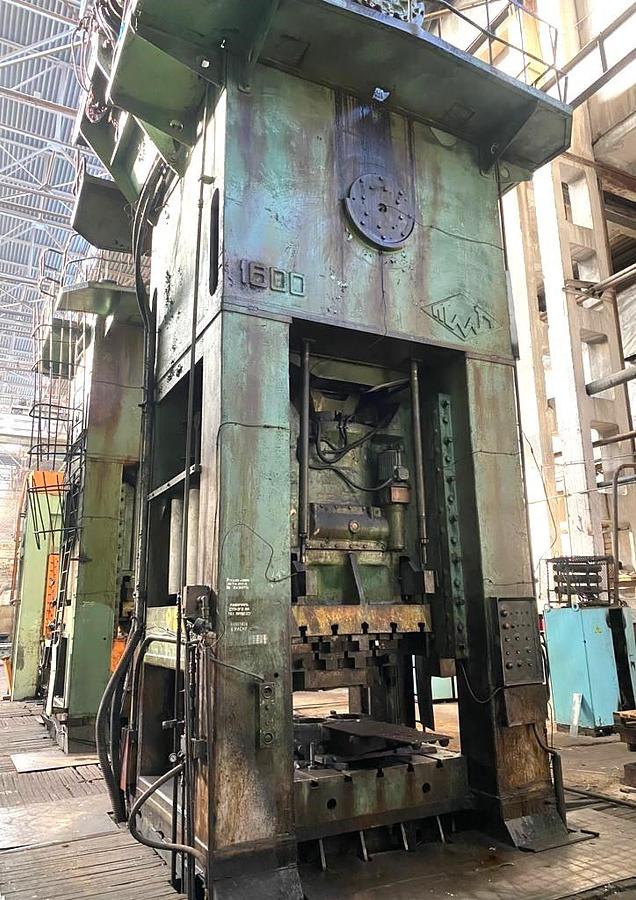

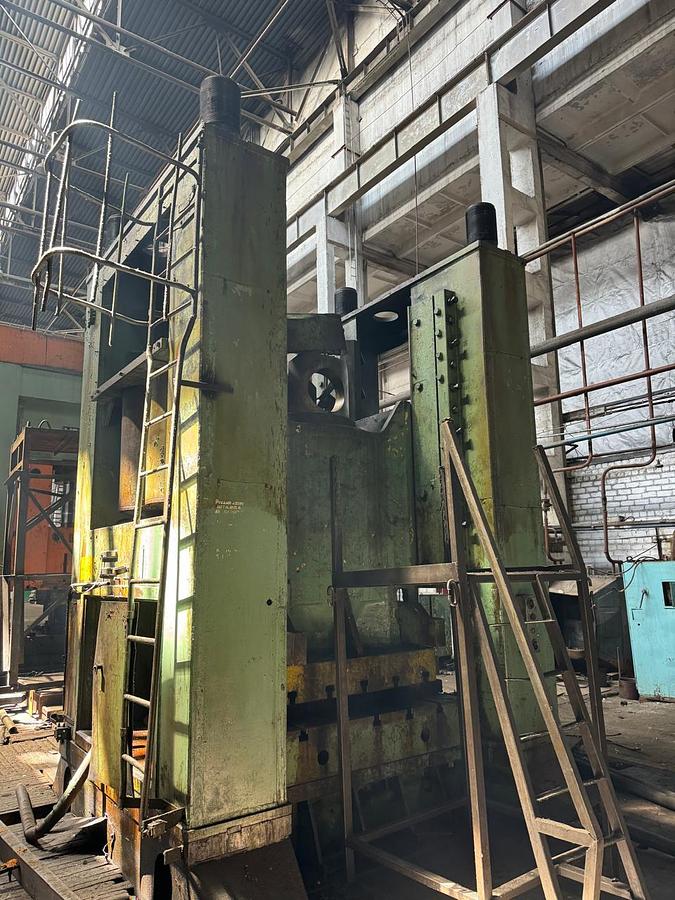

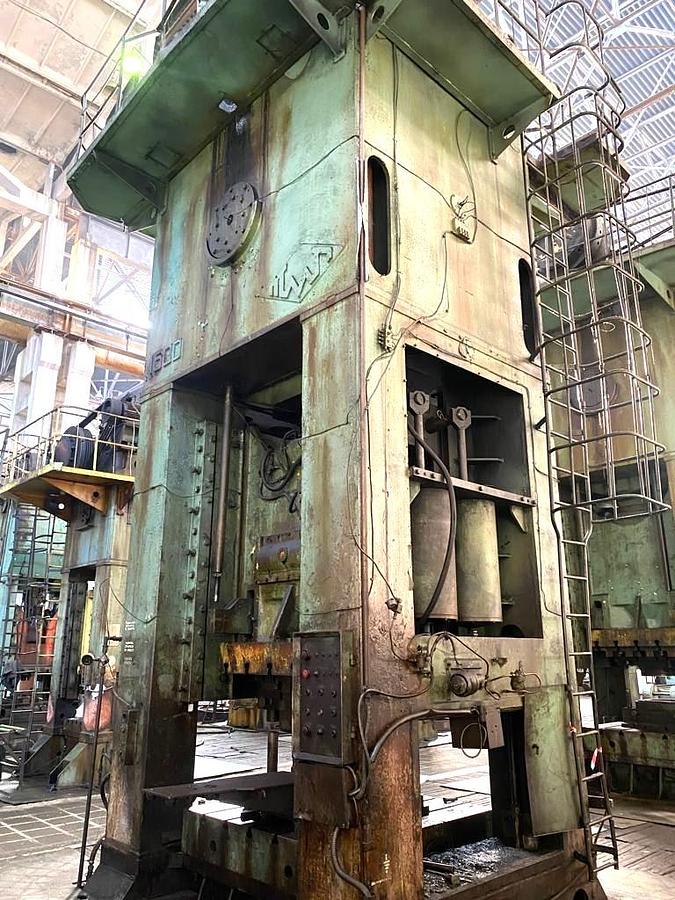

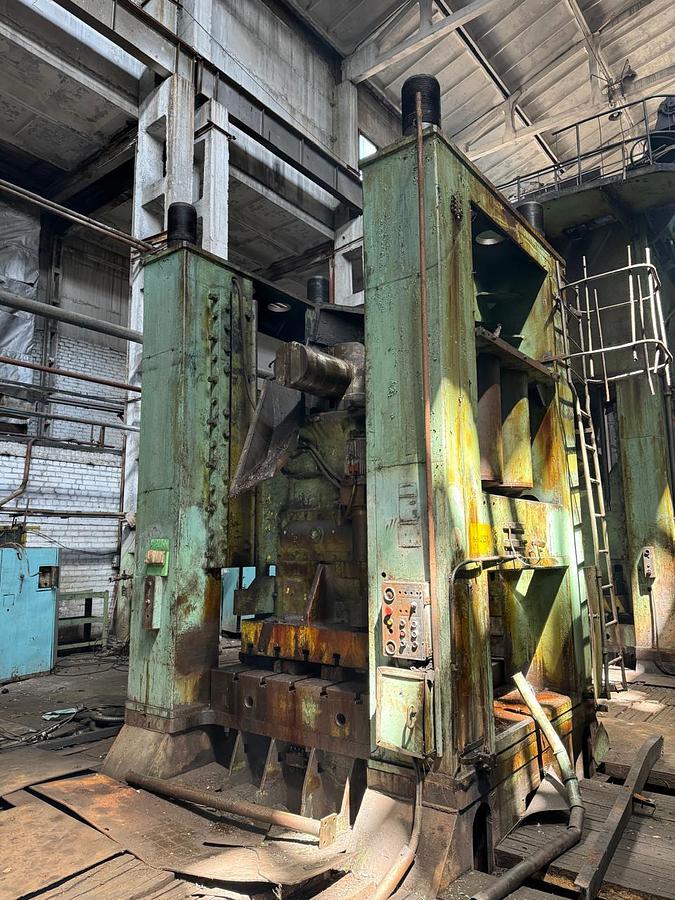

1600 tons Press Trimming TMP Voronezh Russia K2542
Specifications
| Manufacturer | TMP Voronezh Russia |
| Model | K2542 |
| Year | 1981 |
| Condition | Used |
| Stock Number | MA1979 |
| Item condition | Good condition |
| Capacity tons | 1600 |
Description
Capacity : 1600 tons,
Ram stroke : 400 mm,
No of ram strokes per minute (continuous) : 10
No of ram strokes per minute : 7
Adjustment : 220 mm
Shut height : 1120 mm,
Table size :
Left to right : 1800 mm,
Front to back : 1800 mm,
Opening in table: left to right 1250 mm; front to back 1250 mm
Ram size :
Left to right : 1440 mm,
Front to back : 1500 mm,
Window size in columns: width 1560 mm, height 980 mm, height from table 150 mm
Thickness of table below the bolster: 320 mm
Hydropenumatic cushion in table: ejector capacity 20 tons and stroke 250 mm
Max weight of the die on the ram : 5 tons,
Max weight of the die total : 10 tons,
Main electric motor power : 132 kW,
Adjustment electric motor power: 10 kW
Press overall dimensions :
Left to right : 5050 mm,
Front to back : 4620 mm,
Height total : 8720 mm,
Weight approx. : 154 tons.
Single-crank press.
Die holder included.
