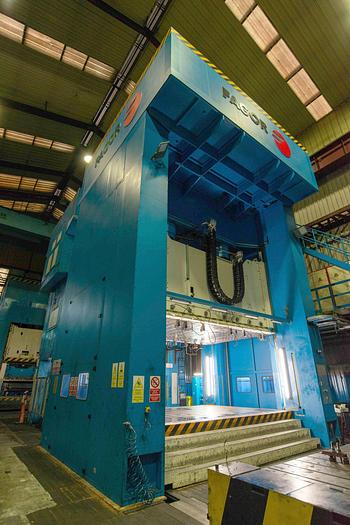

Press Sheet Stamping Hydraulic Fagor H4-2500-5000-3000

Sold

Specifications

ManufacturerFagor
ModelH4-2500-5000-3000
Year2018
ConditionUsed
Stock NumberMA1978
Item conditionGood working condition

Description

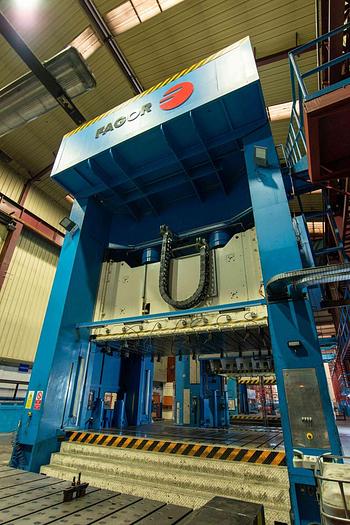

H - Frame

Capacity : 2500 tons,

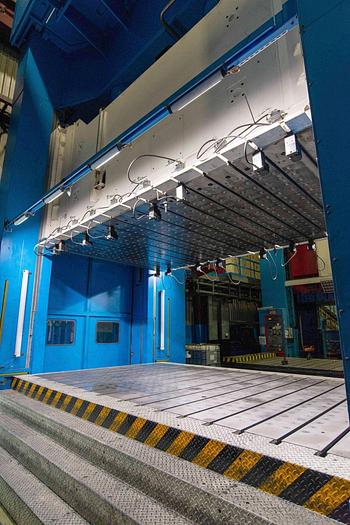

Press Table :

Clamping surface (left - right) : 5000 mm,

Clamping surface (front - back) : 3000 mm,

Table height over floor : 820 mm,

Ram :

Clamping surface (left - right): 5000 mm,

Clamping surface (front - back) : 3000 mm,

Stroke : 1800 mm,

Ram (Hydraulic Press)

Number of main- cylinders : 4

Approximation velocity max. : 490 mm/s,

Working velocity max. : 17 mm/s,

Return velocity max. : 250 mm/s,

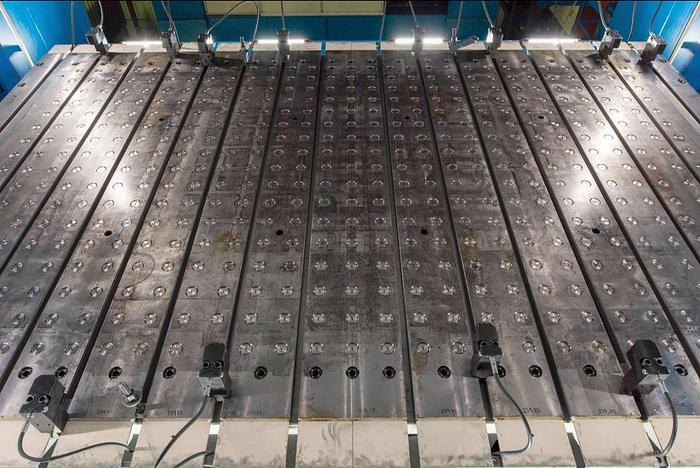

Cushion in ram

Capacity of cushion : 350 tons,

Stroke : 200 mm,

Clamping surface (left - right) : 4300 mm,

Clamping surface (front - back) : 2500 mm,

Working principle : Hydraulically,

Regulated : Yes.


Die cushion (table cushion)

Capacity : 600 tons,

Stroke : 400 mm,

Clamping surface (left - right) : 4320 mm,

Clamping surface (front - back) : 2700 mm,

Working principle : Hydraulically,

Regulated : Yes,


Tool Assembly Dimension

Distance table - ram max. : 2700 mm,


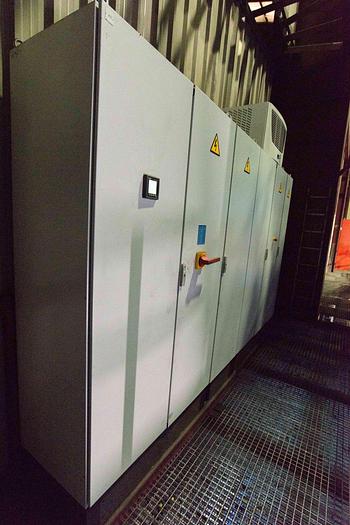

Electrical Specifications

Total power consumption : 565 kW,

Mains voltage : 400 V,

Mains frequency : 50 Hz,


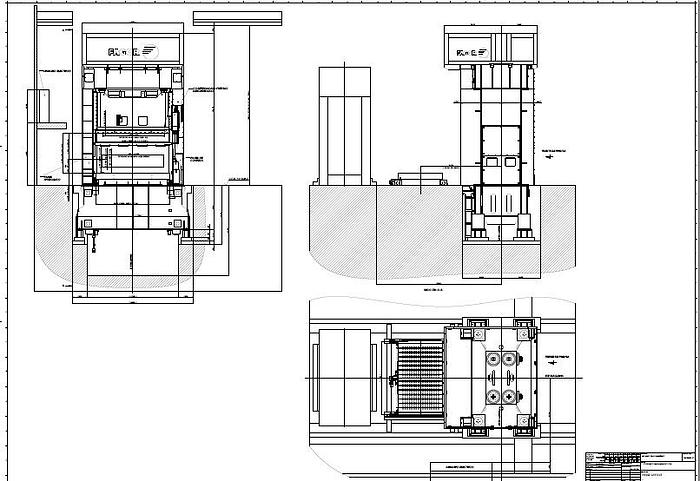

Dimensions / Weights

Height above floor level : 10750 mm,

Total weight approx. : 500 tons,

Attachments for presses

light barrier : yes,

Hydraulic overload protection : yes,


Technical description

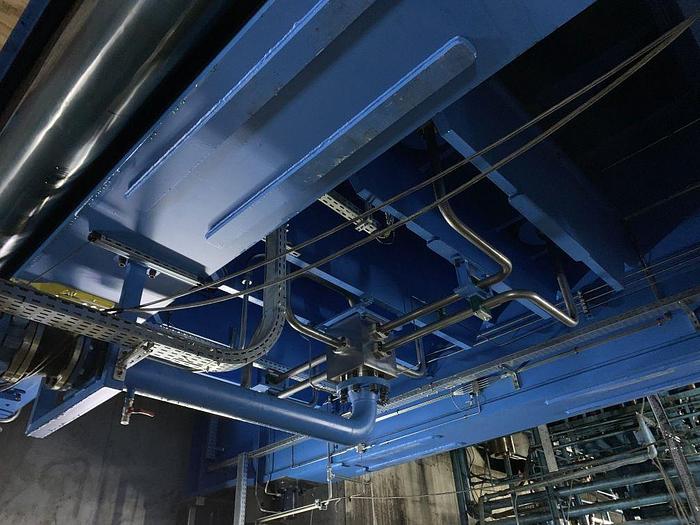

Hydraulic press equipped with :

Front moving bolster,

Draw cushion in the table,

Cushion inside the ram,

16 hydraulic tool clamping units,

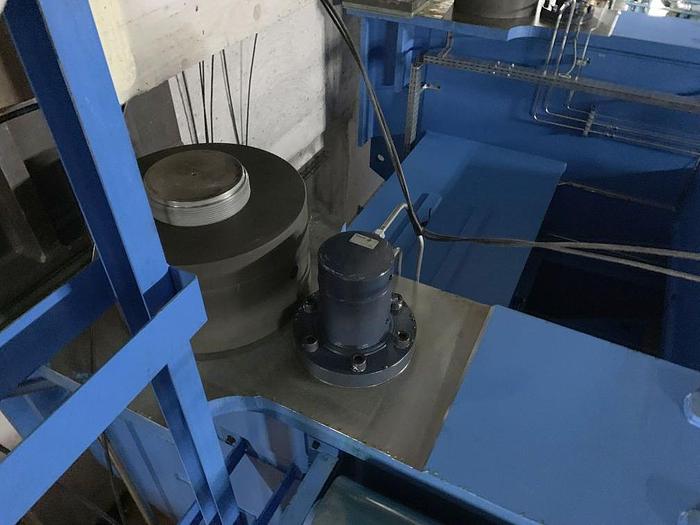

Two hydraulic cylinder for " out of center pressure" compensation

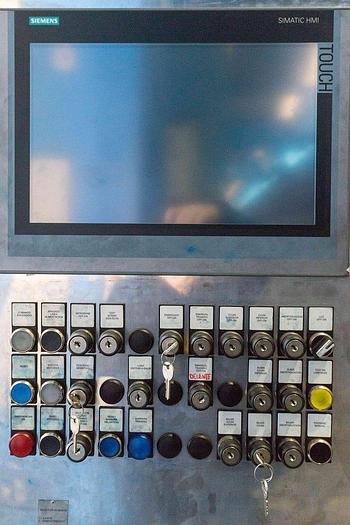

Controls: PLC SIEMENS Simatic Touch Control

Ideal for tryout of tools,

Max. rapid speed of ram 490 mm/sec,

ram and table deflection accuracy 0125 mm/m.
