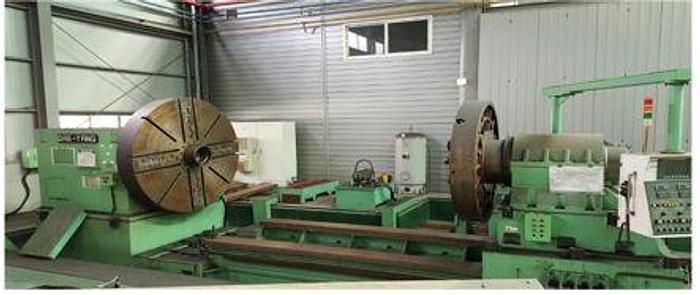

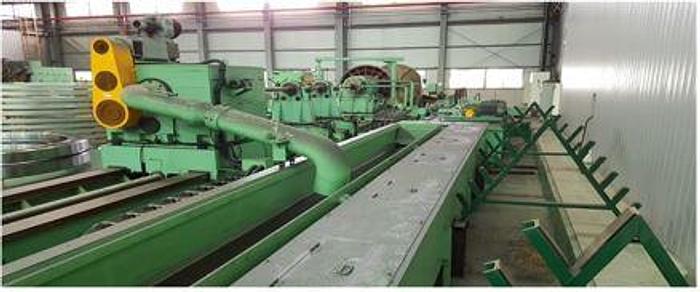

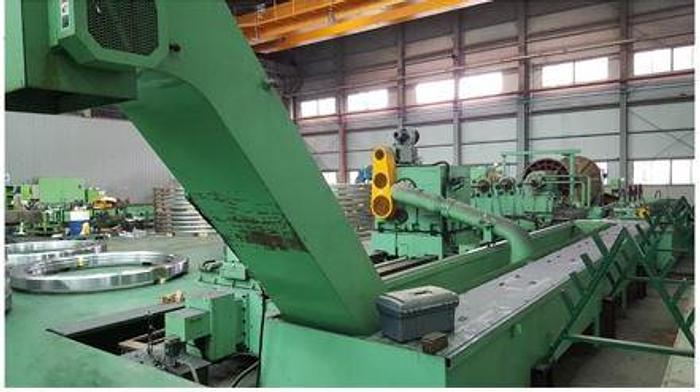

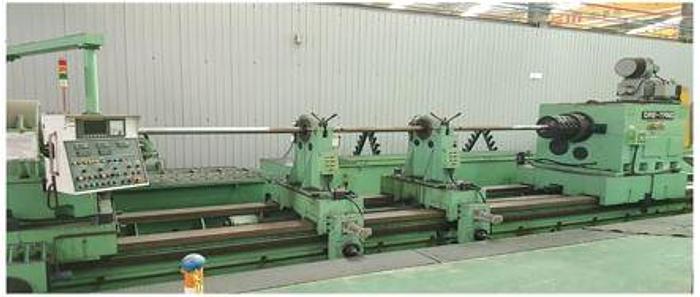

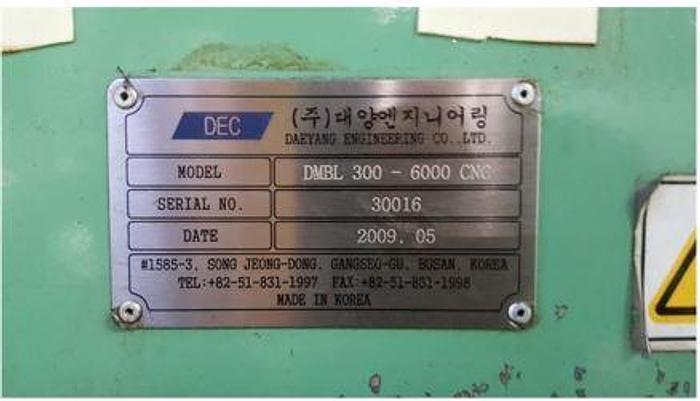

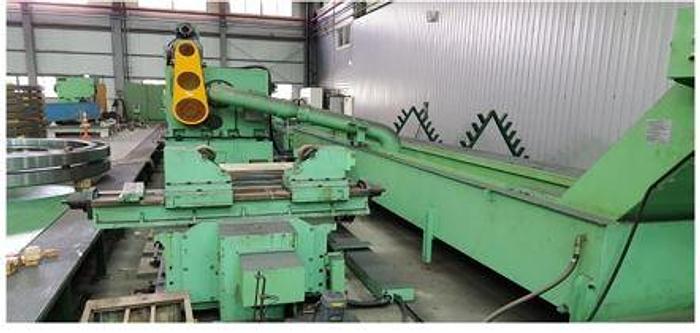

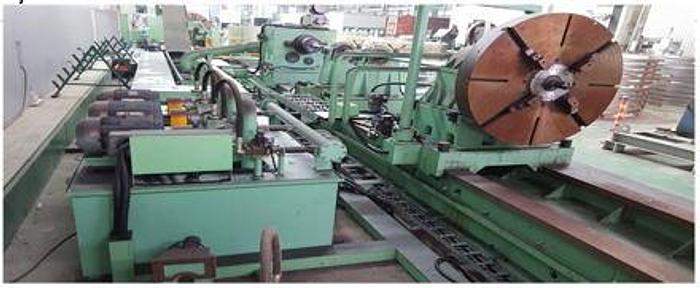

CNC Deep Hole Drilling DMBL300

Solid Drilling : dia 60-190 mm,

Trepanning : dia 300 mm,

Counter boring : dia 300 mm,

Drilling Depth : Max. 6000 mm,

Spindle Qty : 1 Spindle,

Speed :

Spindle rotation per min. - Max 390 rpm,

Head Stock rotation per min : 40-120 rpm,

Z-Axis rapid feed rate : 3000 mm/min,

Feeding Speed : 0-1000 mm/min,

Work Piece Spec :

Out dia : Max 2500,

Work Length : 1500 - 6000 mm,

Work Weight : Max 30 tons,

Coolant Tank :

BTA Coolant Pump Pressure : 20 kg/cm2,

BTA Coolant Pump Volume : 500 L/min x 3set,

Hydraulic Unit :

Tank capacity : 250 liters,

Hydraulic Pump Pressure : 70 kg/cm2,

Motor :

DC Motor (Head Stock) : 110 kw,

DC Motor (Spindle Unit) : 110 kw,

Z-Axis Servo Motor : a100/2500i (100Nm),

High Coolant Motor : 37 kw, 4P x 3set,

Hydraulic Pump Motor : 5.5 kw, 4P,

Feeding Motor : 0.4 kw x 3 set,

Auto oil supply Motor : 0.025 kw,

Stroke :

Z-Axis : 6000 mm,

Dimension (B x W x H) : 23200 x 6300 x 4200 mm,

Machine Weight : 65 tons,

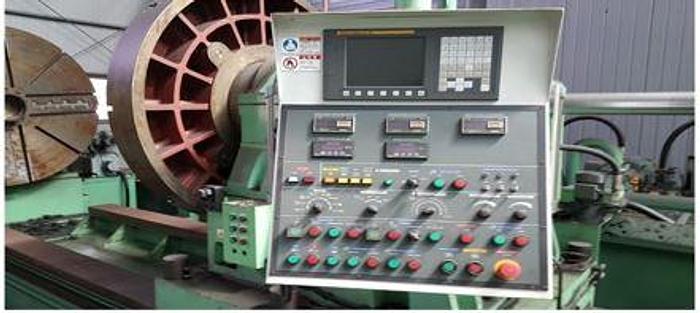

Control System :

NC Controller : FANUC Oi-TC,

Control Axis : Z-Axis (1-Axis)

Power Supply :

Power Source : AC 380 V,

Control power : AC 220 V / DC 24 V,

Total Power : 340 kw.
