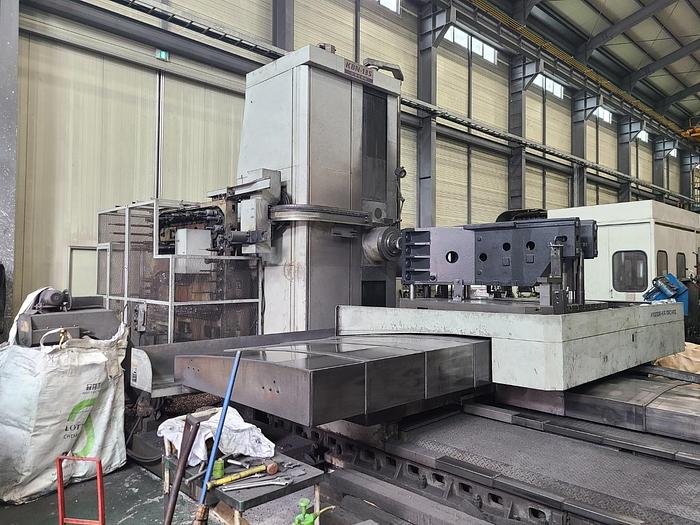

Borer Horizontal Table Type KBN-135

Spindle dia : 200 mm,

Spindle max. : 2000 RPM,

Voltage : 220 V,

Frequency : 60 60 HZ,

Phase : 3 ∮,

Rated power : 42 KVA,

Full load load current : 109 A,

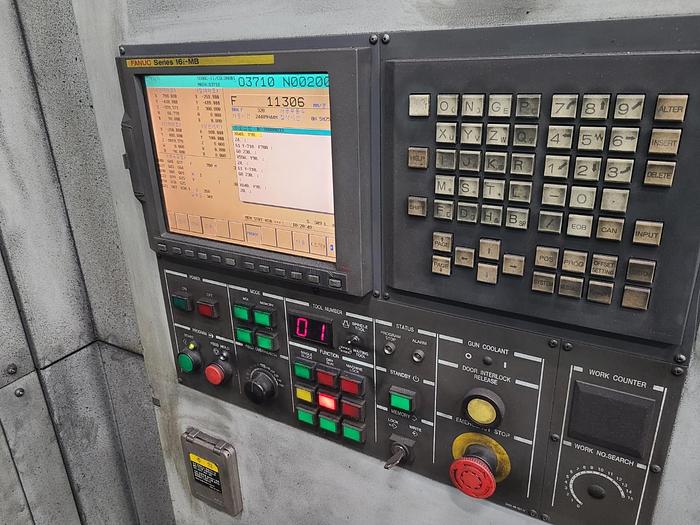

Control voltage : AC110, DC 24V,

Electric diagram : 3223-80-502,

Ultimate breaking capa. : 50 KA,

Service braking capa : 25 KA,

Weight : 37.2 tons.
