Press Fineblanking Mechanical SMG Feintool HFA6300
Sold
Specifications
Manufacturer | Abe Seiki,Japan |
Model | HFA6300 |
Year | 1988 |
Condition | Used |
Stock Number | MA1926 |
Item condition | Good working condition |
Capacity tons | 630 |
Description
Capacity : 630 tons,
Stroke: 150 mm,
Min. stroke: 30 mm,
Cutting speed, min .: 3 mm / s,
Cutting speed, max .: 50 mm / s,
Approach speed: 120 mm / s,
Return speed: 135 mm / s,
V-ring:
Nominal force: 320,
Stroke: 40 mm,
Reverse slider:
Nominal force:160,
Stroke: 40 mm,
DIMENSIONS OF ACCESSORIES:
Bottom table - width: 910 mm,
Bottom table - depth: 1350 mm
Top table - width: 900 mm,
Top table - depth: 900 mm,
Clearance, max .: 410 mm,

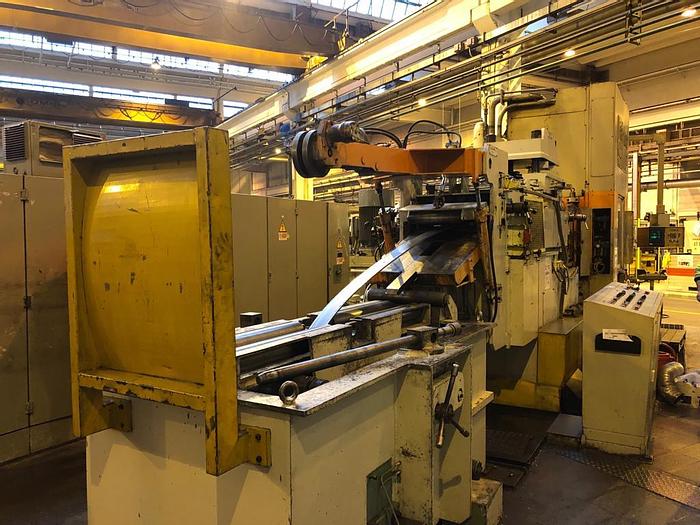

Belt feeder:
Type: roller feeder:
Nominal force: 6000 kN,
Leaf width, max: 450 mm,
Sheet thickness, max:16 mm,
Feed step, min .: 1 mm,
Die Height – from 330 to 400 mm,
Dimension table – 760x790 mm,
Force of Blank Holder – 3200 kN.
With feeder Line CISAM
