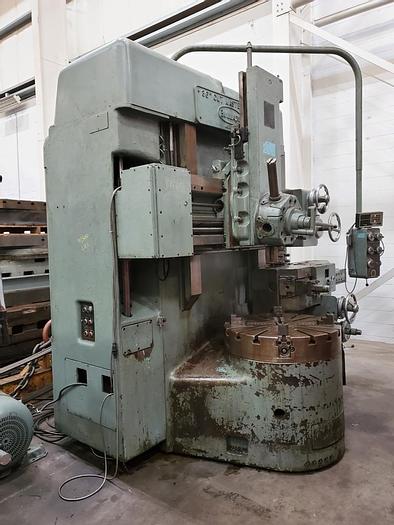

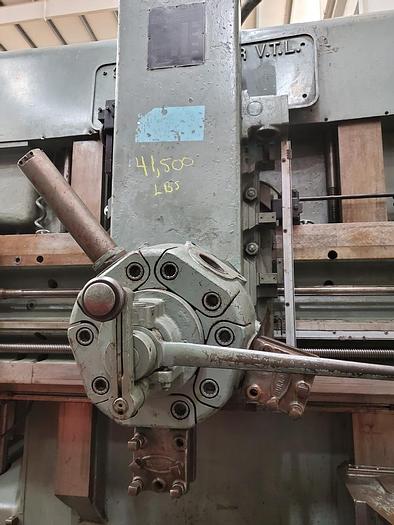

Lathe Vertical Turning 75 Cutmaster

Sold

Specifications

ManufacturerAbe Seiki,Japan
Model75 Cutmaster
ConditionUsed
Stock NumberMA1918
Item conditionGood condition
Capacity tons900

Description

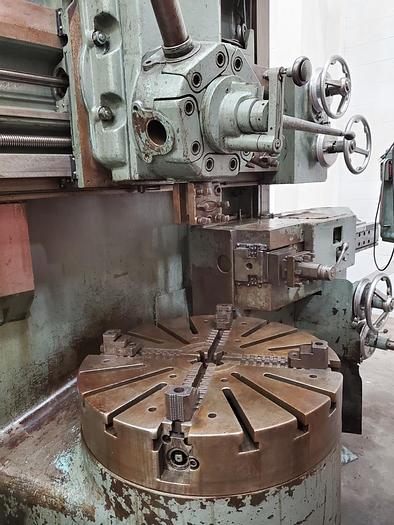

Manual 4-Jaw chuck diameter : 900 mm,

Table Speeds: 8.2 to 300 RPM,

Max. Swing Side Head Below Table: 1125 mm,

Max. Swing Side Head Working Position: 375 mm,

Turret Head Swivels: 30 Degrees Left & Right,


Max. Distance Table to Rail: 750 mm,

Max. Distance Table to Face of Turret: 1035 mm,

Travel Of Head on Rail (Left & Right): 1050 mm

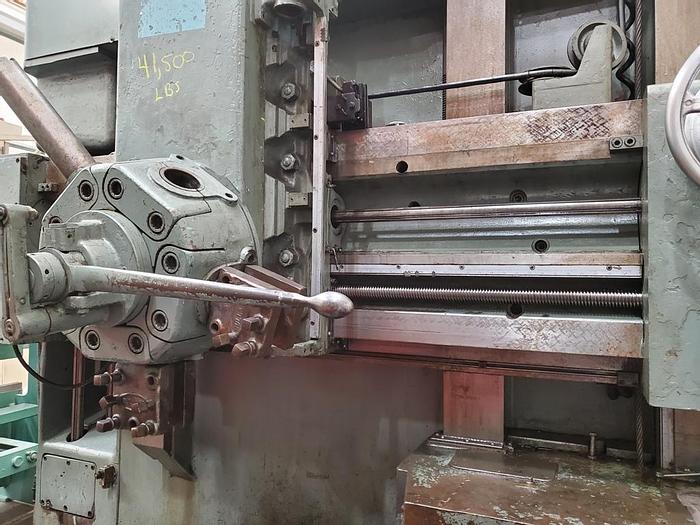

5-Position Power Indexing Turret,

Tool Turret Tool Holes: 32 mm Diameter,

Max. Turret Stroke: 650 mm,

Side Head Horizontal Travel: 415 mm

Side Head Vertical Travel: 756 mm,

Feeds: .00065" to .125" IPR


EQUIPPED WITH:

5 Position Tool Turret

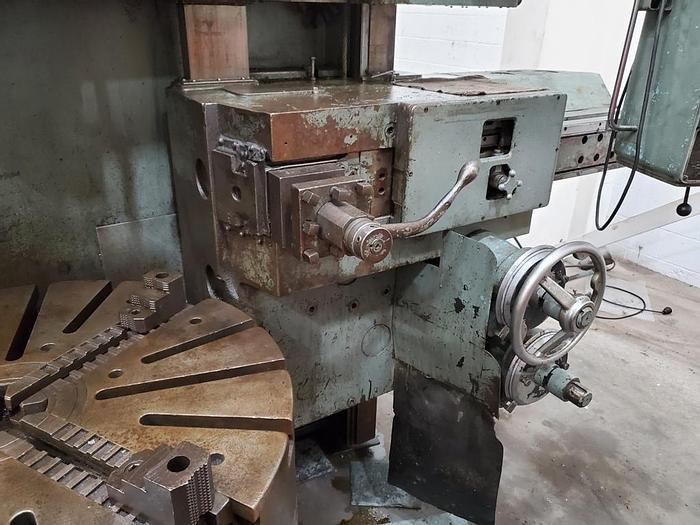

4 Sided Turret Tool Post on Side Head Ram

Manual Tool Turret Indexing

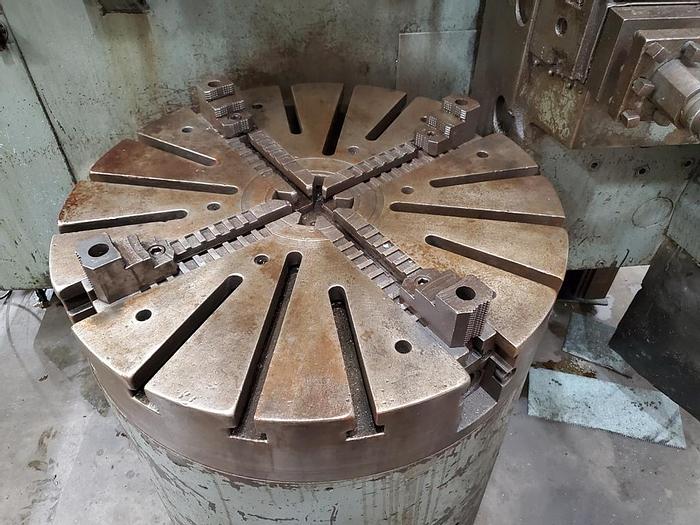

Manual 4 Jaw Chuck with 4 Hard Reversible Top Jaws, NO Chuck Wrench

Flush Floor Design- No Pit Required

Pendant Control Operation

Central Lubrication System

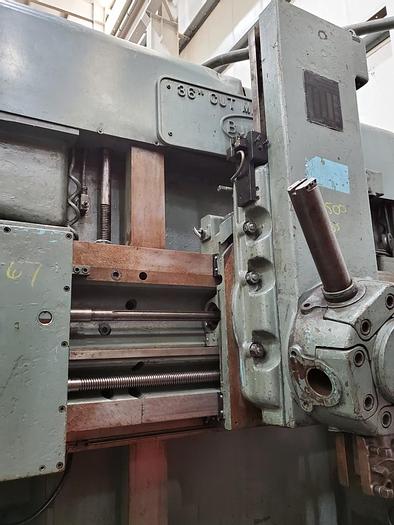

Soft Rail Ways in Good Condition. Vertical Rail Ways in Excellent Condition

MISSING, 1 of 2 Wheel Handles on Side Head

MISSING, Motor Guard and Vee Belt Guards

(2) Bullard 3 Sided Tool Holders

(1) 2-3/4" Diameter Boring Bar

Full Pendant Operational Control

Rapid Traverse to All Axes

Bijur One Shot Lubrication Systems

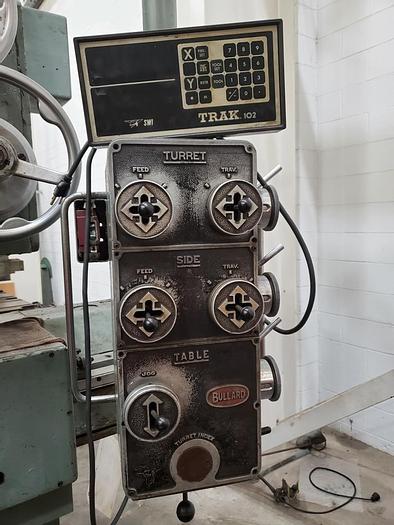

Southwest Industries Trak 102 Digital Readout, 2 Axis, Mounted on Rail Head

Floor Mounted Motor with Belt Adjustment Frame

40 HP Main Drive

Wired for 3 Phase, 60 Hz, 220/440 Volts

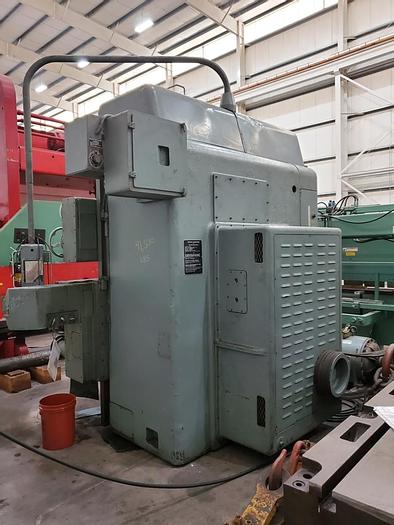

Overall Machine Size: 3875 L-R (pendant attached) x 2675 F-B x 3450 High (pendant attached) x 41,500 Lbs.

Motor with Frame: 325 x 350 x 600 High x 1,071 Lbs.
