Hammer Forging Hydraulic Lasco HO-U315So

Sold

Specifications

ManufacturerAbe Seiki,Japan
ModelHO-U315So
Year2002
ConditionUsed
Stock NumberMA1911
Item conditionGood condition, under power

Description

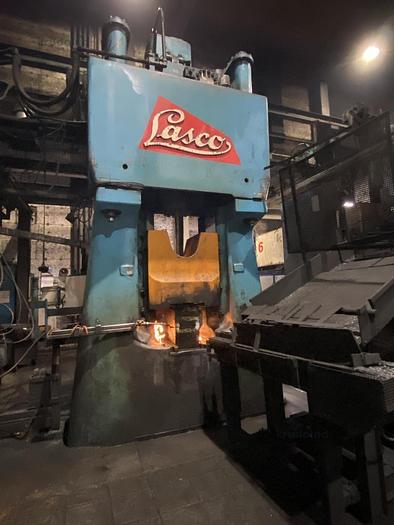

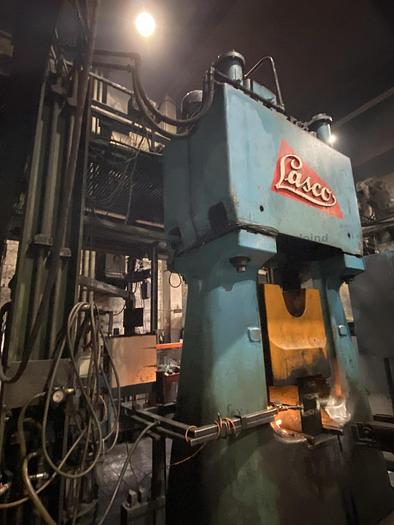

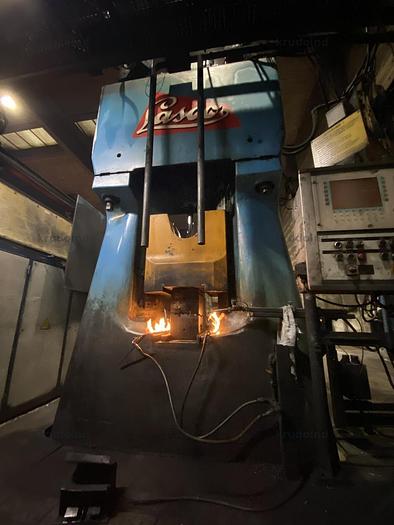

This leading edge hydraulic double-acting hammer from world-class supplier LASCO is an ideal forming machine for the forging industry.

Rated working capacity: approx. 40/50 kJ (interchangeable by SoftSwitch)

Impact frequency at nominal work capacity: approx. 90 1/min

Ultimate bear speed: at 40kJ= approx. 4.8 m/s and at 50kJ= approx. 5.3 m/s

Bear Stroke

max.: approx. : 710 mm,

min.: approx. : 500 mm,

Bear weight: about : 3000 kg,

Bear depth: approx. : 700 mm,

Height of both dies with swallows

max.: approx. : 430 mm,

min.: approx. : 220 mm,

Clear width between the guides: approx. : 700 mm,

Frame foot dimensions (WxD): approx. 2800 x 1400 mm,

Overall height: approx. : 5100 mm,

Frame weight: approx. 55000 kg

Total weight of the hammer: 75000 kg,

Amount of oil in the head tank: approx. : 1800 l,

Accumulator pressure: approx. : 130 bar,

Drive power main engine: 2 x 45 kW,

Drive power cooling filter circuit: 2.2 kW

Drive power fan for air cooler: 0.55 kW,

Lubrication pump drive power: 0.18 kW,

Operating voltage: 400 V³ 50 Hz,

Control voltage: 230 V³ 50 Hz,

Valve voltage: 24 V -,

Degree of protection / type of protection: IP 55,

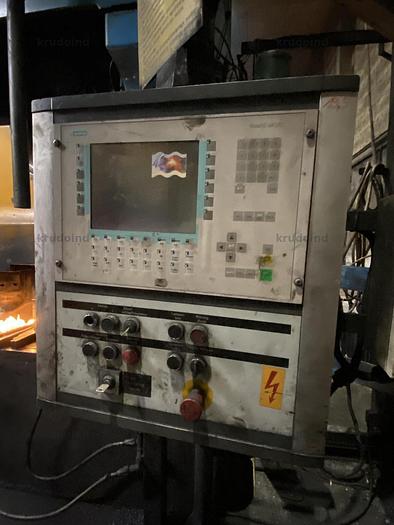

Screen: Colour

Screen diagonal: 10.4"
