Hot Forging Line Hasenclever VEPES3150
Specifications
| Manufacturer | Abe Seiki,Japan |
| Model | VEPES3150 |
| Year | 1979 |
| Condition | Used |
| Stock Number | MA1909 |
| Item condition | Good working condition |
| Capacity tons | 3150 |
Description
Nominal force, from 10° before bottom reversal point: MN 31.5
Capacity : 3150 tons,
Carriage stroke: 355 mm,
Number of strokes per minute: 70,
Clear distance between columns below the guides: 1790 mm,

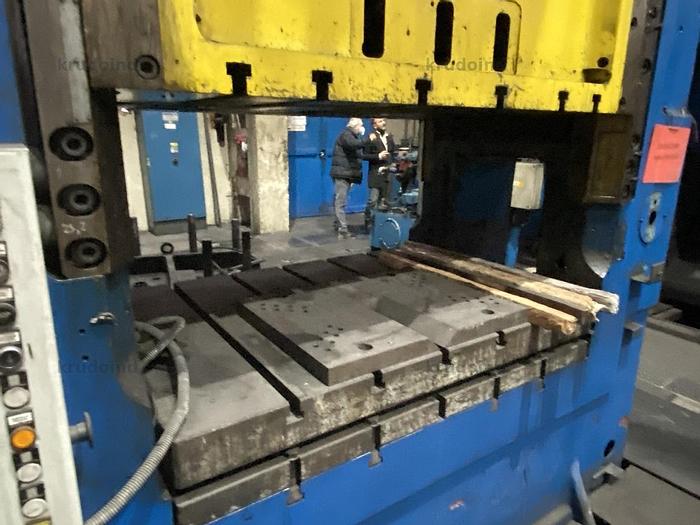

Table clamping surface (W x D): 1750 x 1500 mm,
Slide clamping area (W x D) : 1450 x 1500 mm,
Clear height between table and carriage - from below/above: 1200/1579 mm,
Height adjustment of the carriage: 24 mm,
Variable displacement motor rated power: 3 kW
Variable speed motor: 20 rpm,
Drive motor rated power: 130 kW ,
Drive motor speed: 1500 rpm,
Electrical equipment for: V 380, Hz 50,
Required compressed air: bar 5-5.5,
Total air consumption per stroke: Ltr. 50,
Total weight: 230 tons.

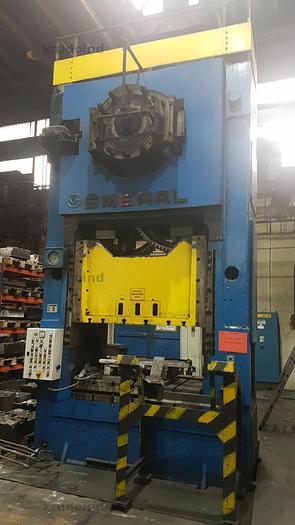

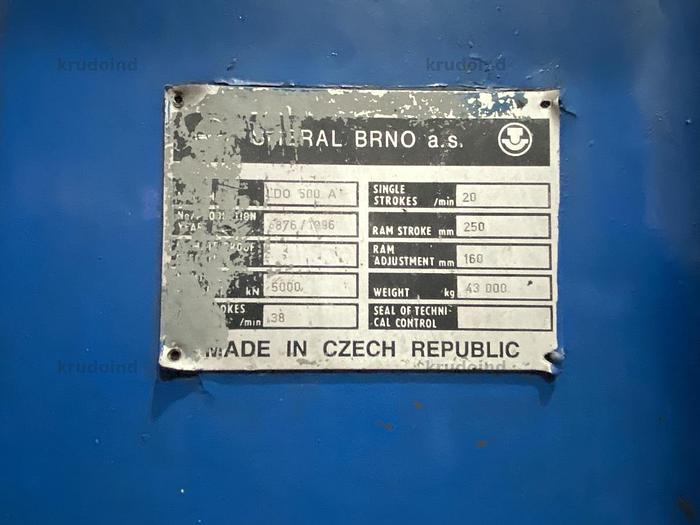

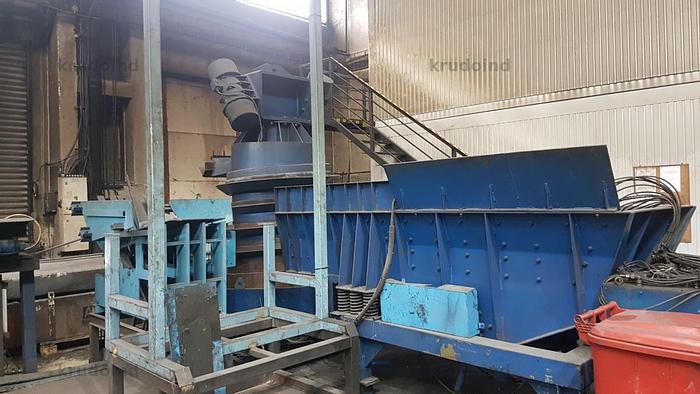

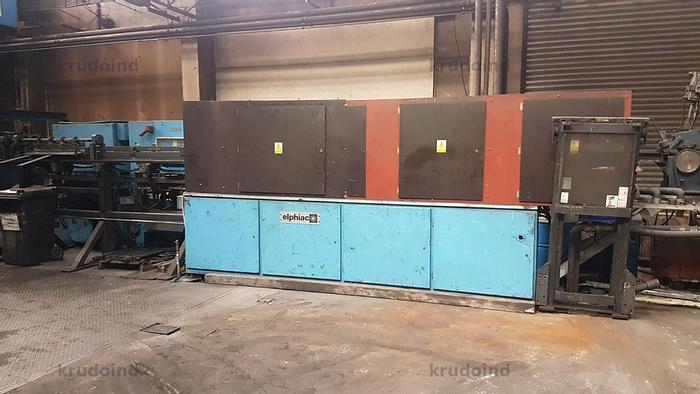

This press is being supplied in a line set-up with Billet Bunker w Spiral Conveyor, Induction Heater Elphiac Catenaxe V 120 and SMERAL LDO500 Trimming Press (1996).
