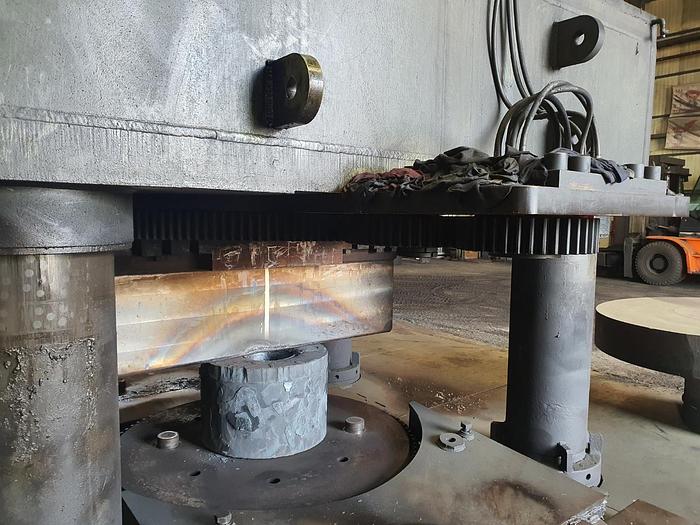

Press Forging Open Die Hydraulic GHP
Sold
Specifications
Manufacturer | GHP, Korea |
Year | 2014 |
Condition | Used |
Stock Number | MA1898 |
Item condition | Good working condition |
Capacity tons | 3000 |
Description

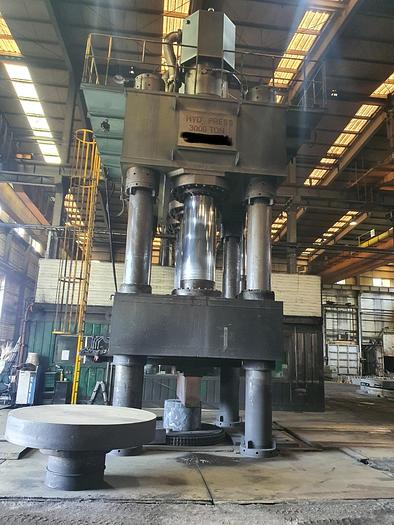

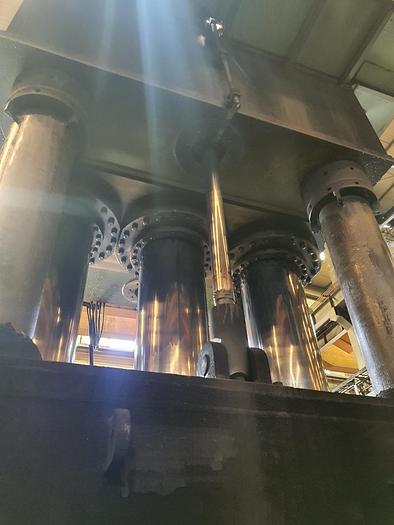

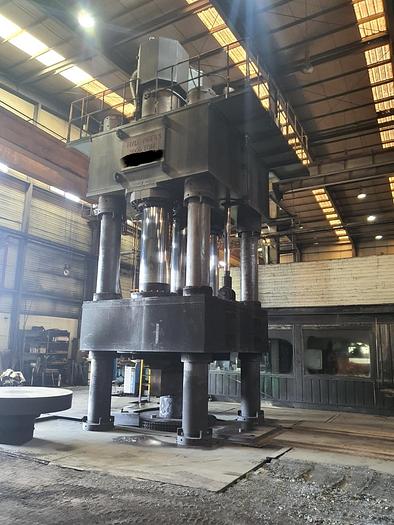

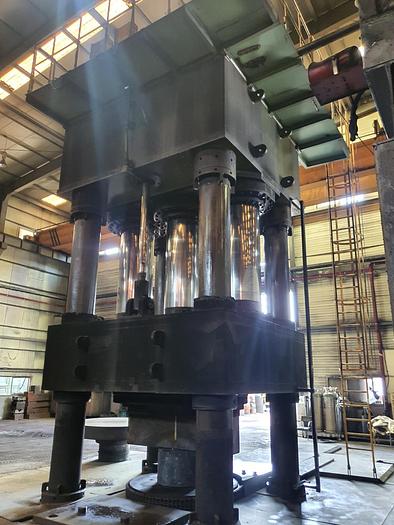

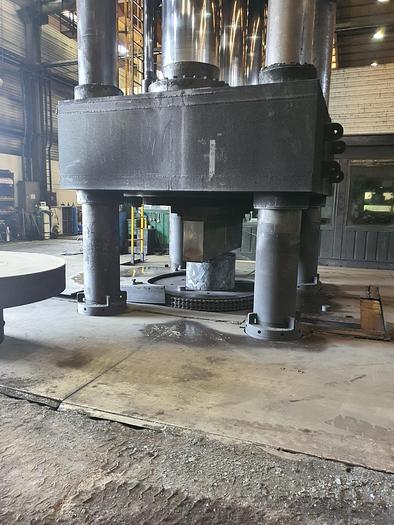

Four Columns Push Down Press Upgrade (3500 tons) & Modernized
Capacity : 3000 tons (239kg/cm2),
Stroke : 2200 mm,

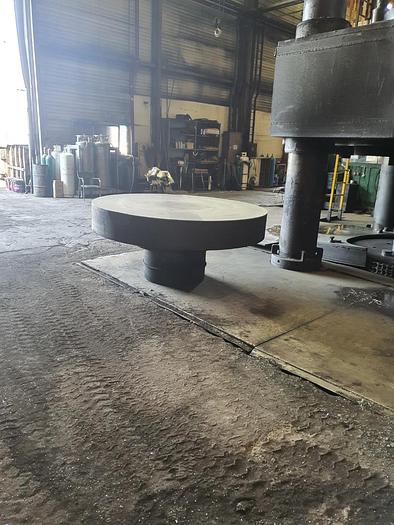

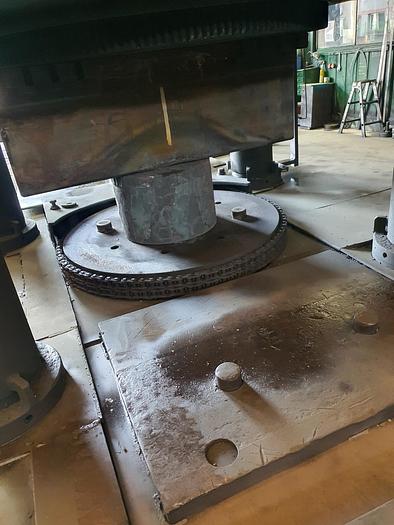

Working Round Table : 2000 mm,
Moving Stroke of table : 2250 mm,

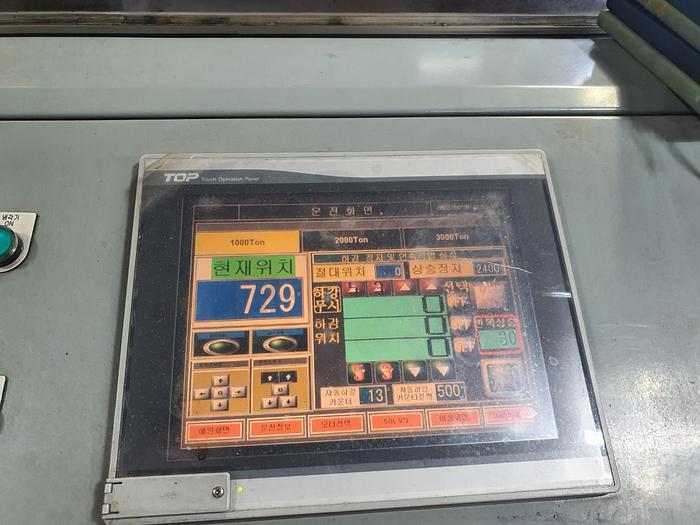

Forging Speed :
a) 1000 ton Mode >>> 208 mm/sec,
b) 2000 Ton Mode >>> 183 mm/sec,
c) 3000Ton Model >>> 150 mm/sec,
Distance between Column (FB x RL) : 1980 x 2380 mm,

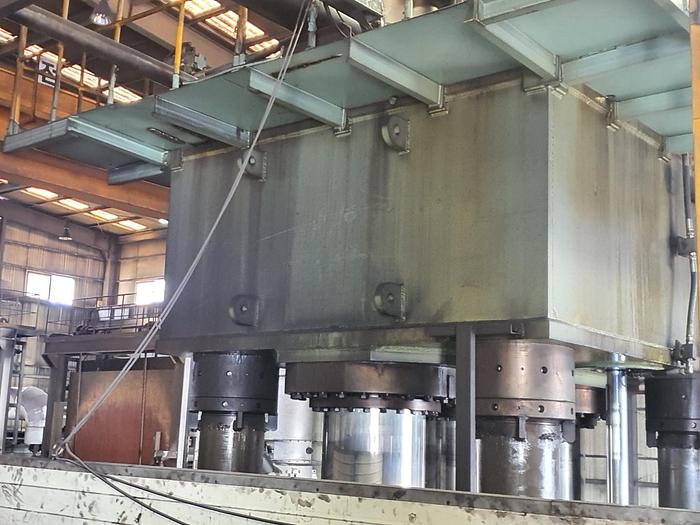

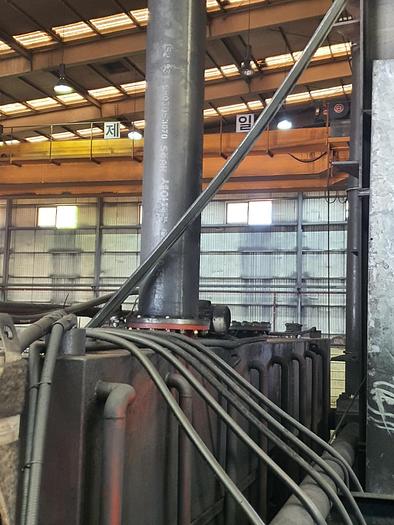

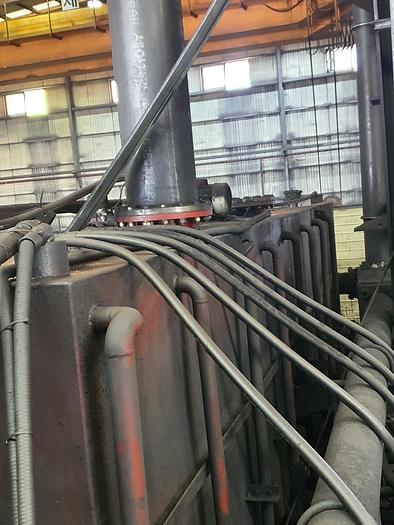

Main Cylinder : Dia 730 mm x Stroke 2300 mm - 3 sets,

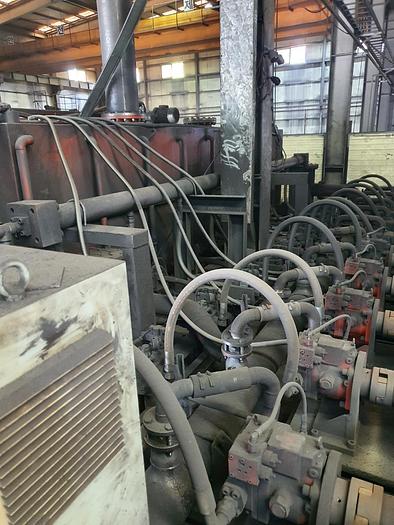

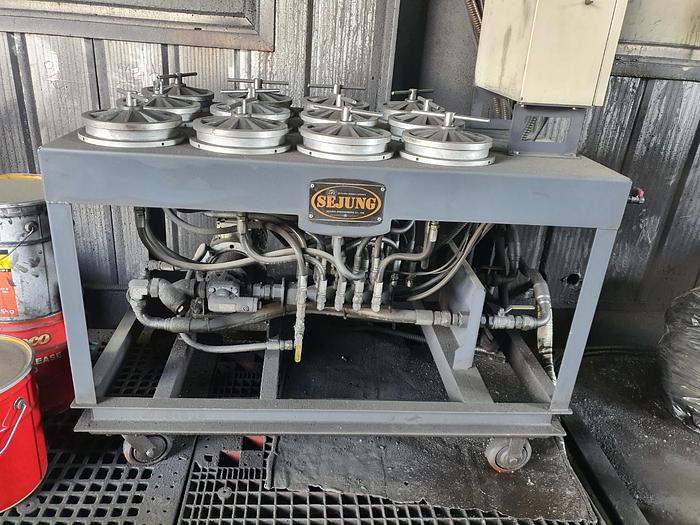

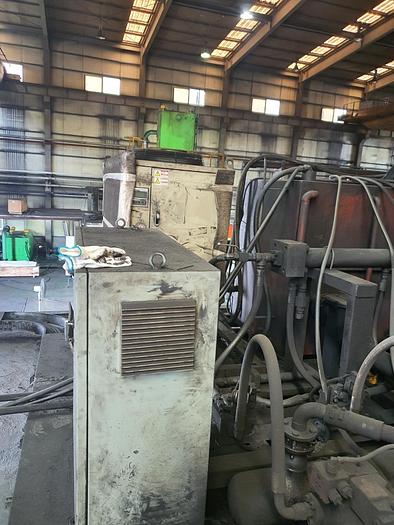

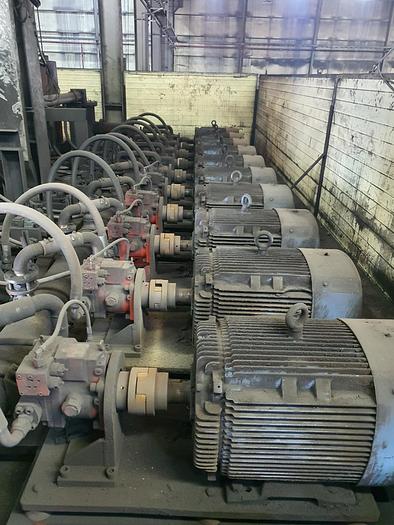

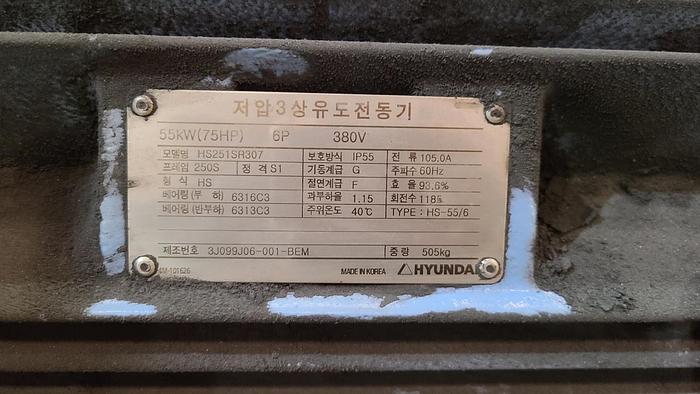

Motor for Hydraulic System : 55 Kw, 6P 380 V x 10 set,
Dimension (W x L x H) : 3780 x 9160 x 9126 mm,
Under Ground : 2185 mm.
With following accessories :

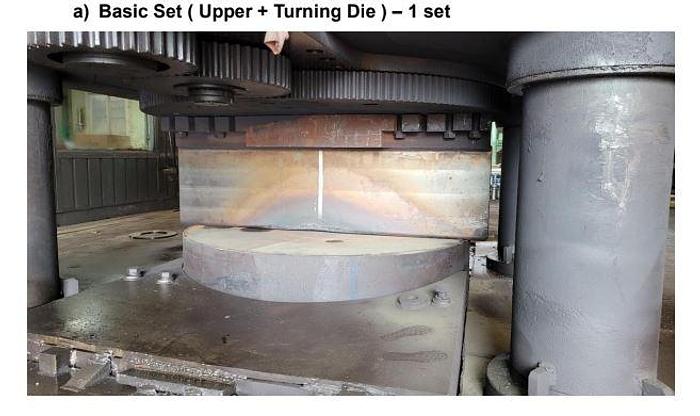

a) Basic Die Set ( Upper Flat Die + Bottom Turning Die ) – 1 set

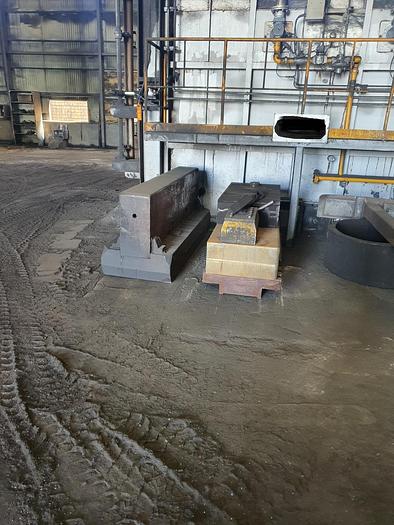

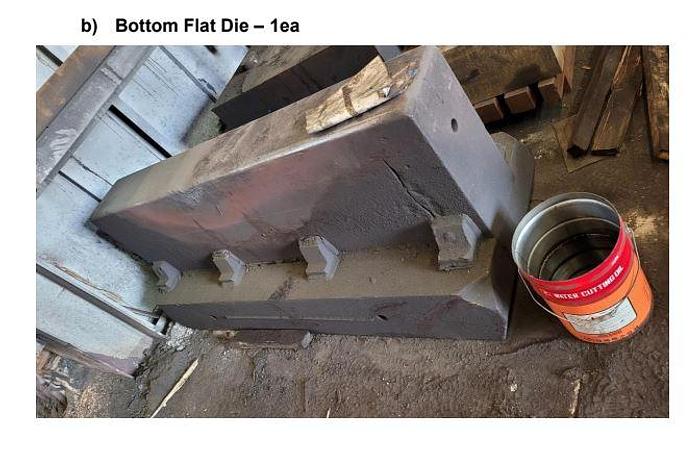

b) Bottom Flat Die – 1ea.
