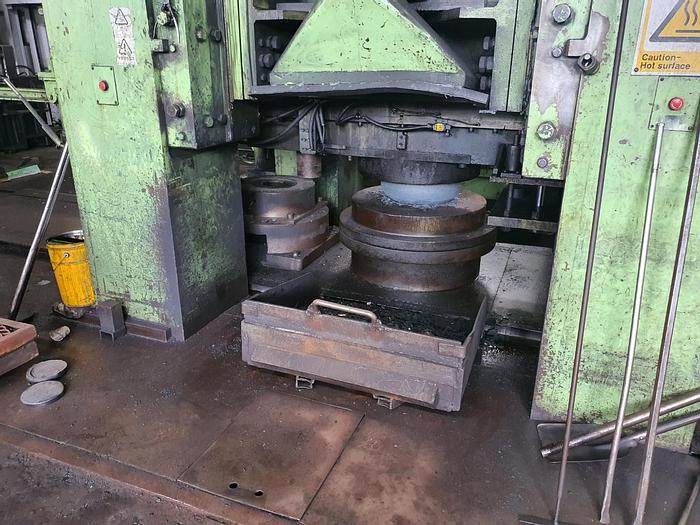

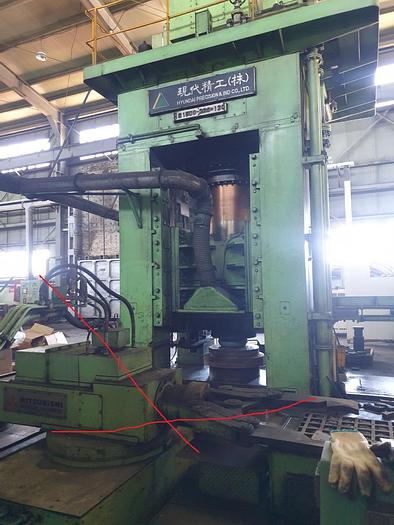

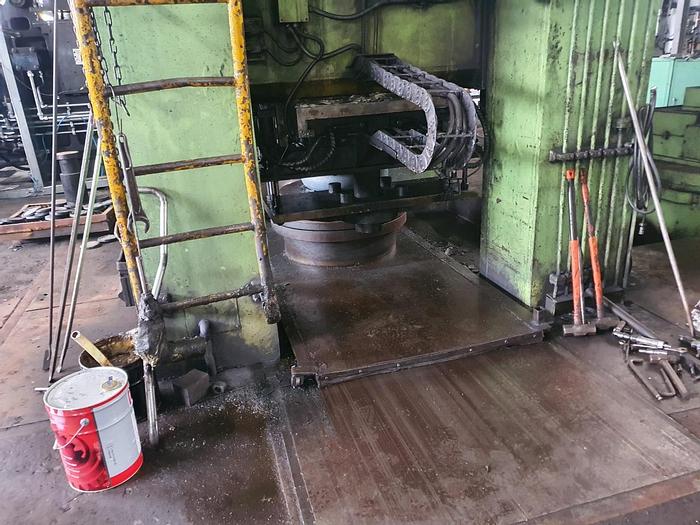

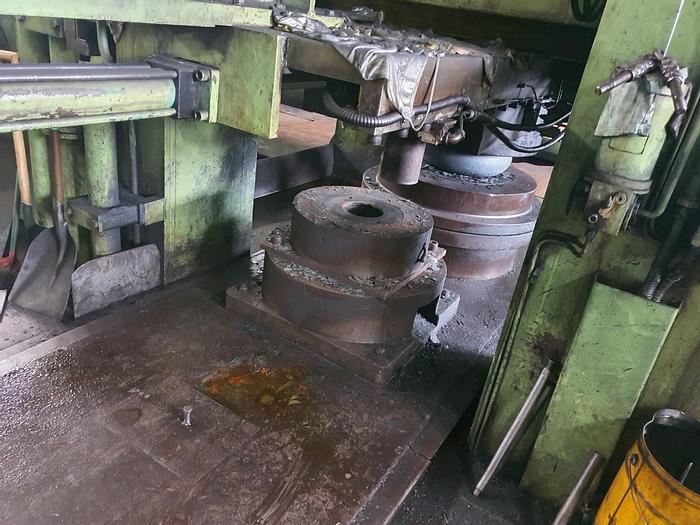

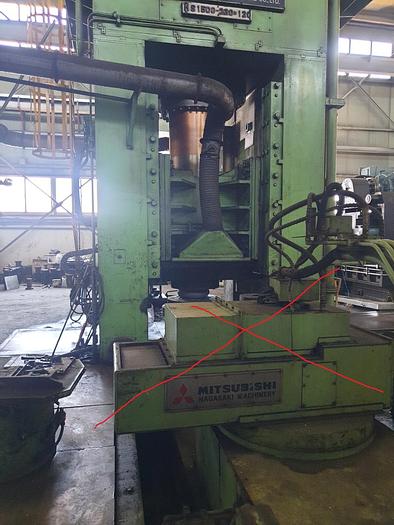

1500 tons Press Forging Open Die Hydraulic Hyundai 1500-1500*1200

Capacity : 1500 tons,

Stroke : 1100 mm,

Daylight : 2110 mm,

Slide Space ( FB,x,LR ) : 1500 x 1200 mm,

Bolster Space (FB x LR ) : 2300 x 1200 mm,

Working Speed , Down : 250 mm/SEL

Working Speed , pressing : 1500 ton-39 mm/SEL,

Working Speed , Down : 1000 ton - 55 mm/SEL,

Lifting Capacity : 250mm/SEL , 200 tons,

Moving Bolster

Carring Capacity : 15 ton,

Movable Stroke : 2100 mm (1100mm)

Dia of Cylinder : Dia 140 mm,

Punch Change Device

Movable Stroke : 1600 mm (800 mm)

Dia of Cylinder Dia : 80 mm

Knock-Out Device

Capacity : 10 ton,

Movable Stroke /Dia of Cylinder Dia: 80 mm,

PUMP

Main Pump Model : A7V500LV5

Pressure Max : 350kg/cm2

Oil Volume : 2200 L/min

Sub Pump Model : A10 VSO 100 DRF

Pressure : 210kg/cm2

Oil Volume : 110 L/min

Cooling Pump Model : NLG 25

Pressure : 6kg/cm2

Oil Volume : 25M3/hr

Motor

Main Motor Output : 175Kw 6P * 4 sets

Power : AC300 *60Hz

Sub Motor Output : 37Kw 4P

Power : AC220V *60Hz

Cooling Motor Output : 7.5Kw 6P

Power : AC220V *60Hz

Oil tank capacity

Main Tank : 7000L

Sub Tank : 2500L.

Technical manuals available.
