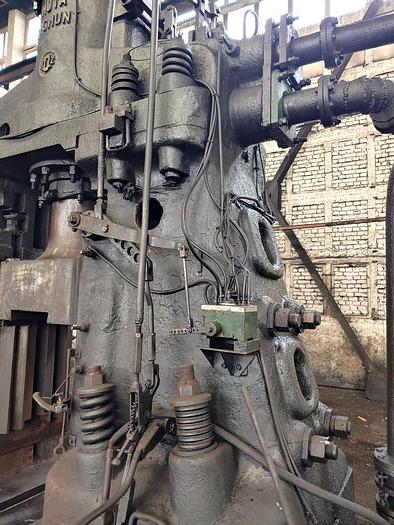

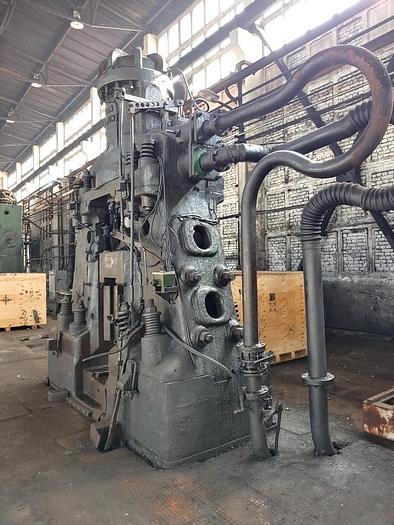

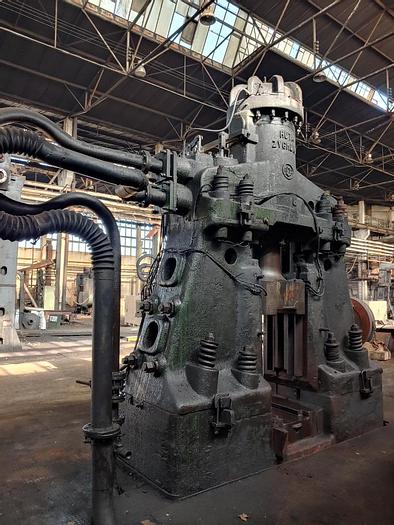

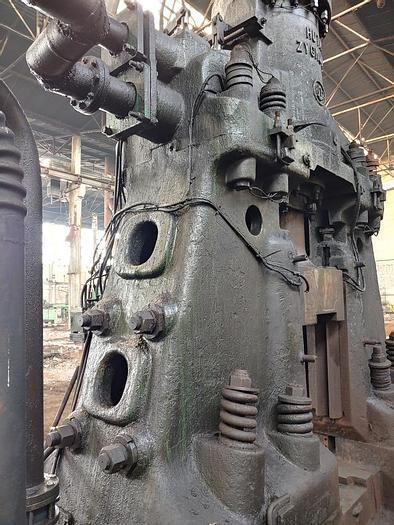

Hammer Forging Pneumatic MPM3000 Huta

Sold

Specifications

ManufacturerAbe Seiki,Japan
ModelMPM3000
Year1967
ConditionUsed
Stock NumberMA1886
Item conditionGood working condition
Capacity tons3.5

Description

Capacity : 3.5 tons

Max. stroke : 900 mm,

Energy of blow : 100 kJ,

Weight of falling part : 3850 kgs,

Max weight of upper die : 1100 kgs,

Anvil block weight w/o die holder : 75 tons,

Weight of hammer with anvil block : 103 tons,

Approximate forging weight : 5-18 kg,

Steam of incoming air pressure : 0.5-0.7 MPa,

Average Steam consumption : 1200 kg/h,

Average cold air consumption : 28 m3/min,

Average hot air consumption : 22 m3/min,

Number of blows per minute : 90 / pm,

Overall dimension :

Length of hammer : 3620 mm,

Width of hammer : 2100 mm,

Total height of hammer : 5930 mm,

Height of hammer above floor : 4700 mm,

Min height of die partition above : 780 mm,

Min height of the die (without tail) : 350 mm,

Guideway spacing : 704 mm,

Length of die seat : 750 mm,

Length of the seat in the die holder : 1050 mm,

Max width of working area : 750 mm,

Max tup stroke : 900 mm,

The total weight of the hammer, including the spare parts is about : 105 ton,

Air pressure : 5-7 atm,

Guideway spacing : 750 mm,

The weight of the Anvil: 103 tons.

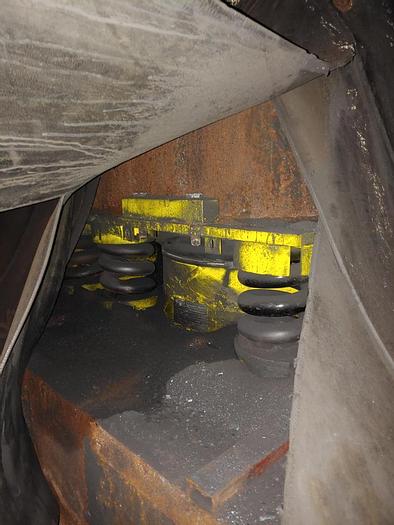

In set available all equipment to hammer as under hammer steel plate and vibroisolators – 12 pcs ( made in 2014 and work up to end of 2018 ) – very good condition
