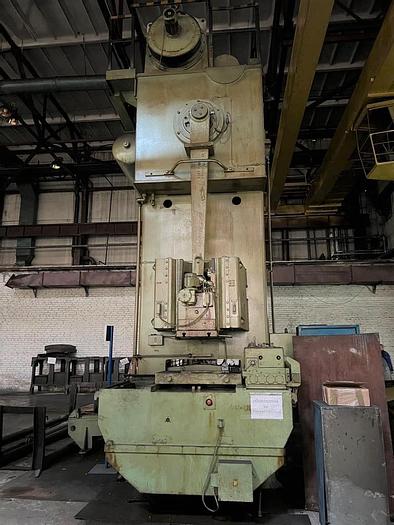

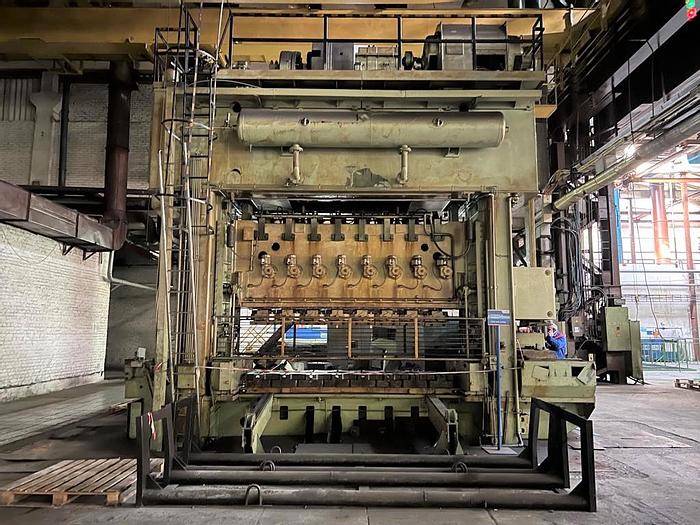

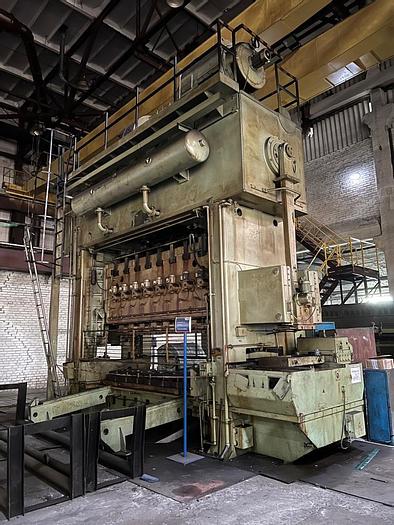

Press Transfer Mechanical Erfurt, Germany PTRZSST320/9/400
Specifications
Manufacturer | Abe Seiki,Japan |
Model | PTRZSST320/9/400 |
Year | 1984 |
Condition | Used |
Stock Number | MA1881 |
Item condition | Good Condition |
Capacity tons | 320 |
Description
Total Capacity : 320 tons,
Max. capacity of main ram between uprights : 250 tons,

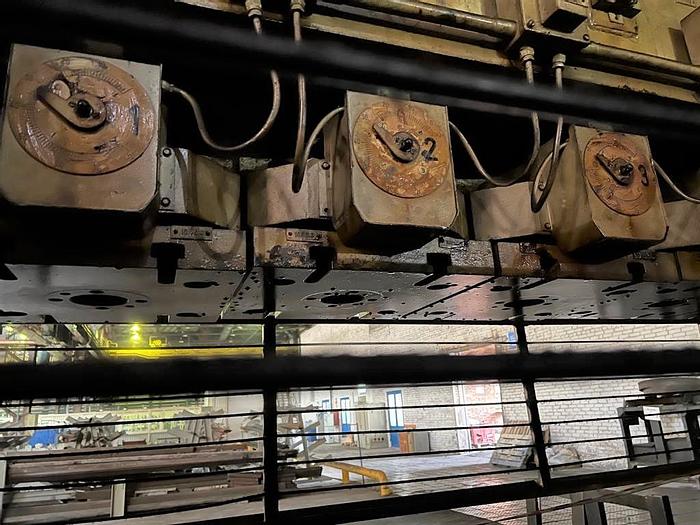

Max. capacity of each die holder : 80 tons,
Max. extrusion depth : 140 mm,

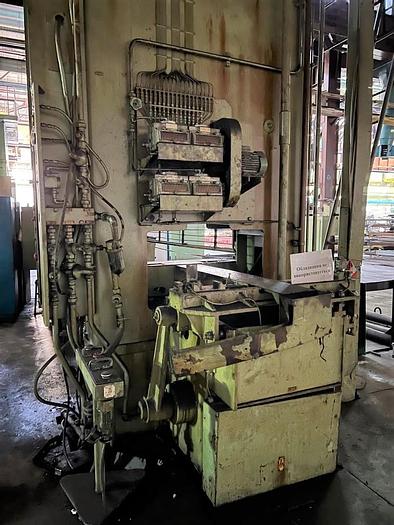

Max capacity of side ram : 70 tons
Qnt. of works position :
a) Extrusion positions (between uprights) : 8,
b) Cut position (outside of uprights) : 1,
Number of strokes for continuous operation : 16-32/min,
Main motor power : 63 kW,
Speed of band feeding : 10 и 15 m/Min,
Distance between uprights : 4000 mm,
Distance between centers of position : 400 mm,
Stroke of main ram : 420 mm,
Max. distance between bed and die holder : 100 mm,

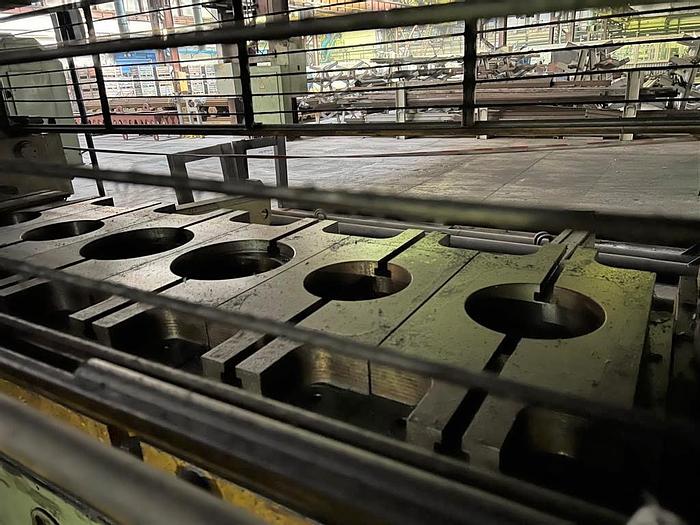

Thickness of stamp plate : 80 mm,
Max. distance between bed and side ram : 980 mm
Max diameter of round workspcs. : 375 mm,
Dimensions of clamp surface of :
bed : 1090 х 1730 mm,
ram : 355 х 450 mm,
stamp plate : 3300 х 1000 mm,
Max width of band : 500 mm,
Max thickness of band : 2 mm,
Max feeding stroke by one ram stroke : 400 mm,
Weight : 120 tons.
