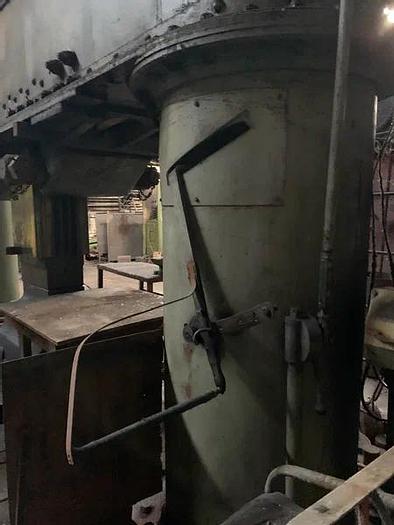

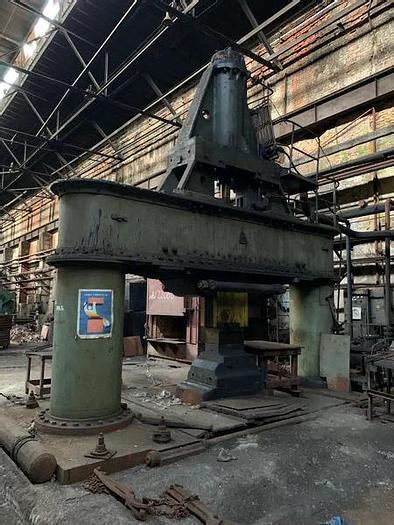

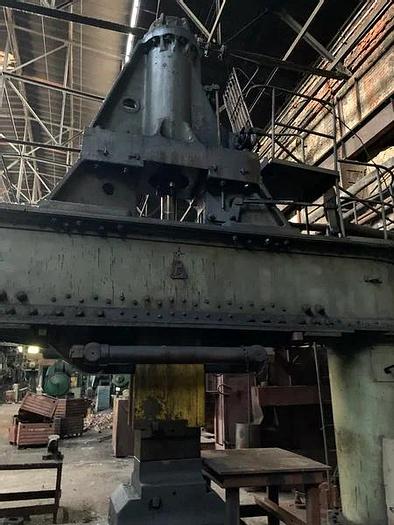

Hammer Forging Open Die Pneumatic TMP Voronezh Russia M1045

Sold

Specifications

ManufacturerAbe Seiki,Japan
ModelM1045
Year1990
ConditionUsed
Stock NumberMA1878
Item conditionGood Condition
Capacity tons3.15

Description

Capacity : 3.15 tons,

Falling parts weight : 3150 kg,

Impact energy : 80 kilojoules,

Distance between columns : 4000 mm,

Qnt. of blows : 56 min-1,

Heigh of worksarea in the daylight : 850 mm,

Dimension of ram : 600 x 340 mm,

Air consumption : 32,6 m3/min,

Hammer dimensions, :

     - length : 6450 mm

     - width : 2750 mm

     - height : 6520 mm

     - height above floor : 6120 mm,

Anvil weight : 47250 kg,

Weight of hammer with anvil : 83.1 tons.
