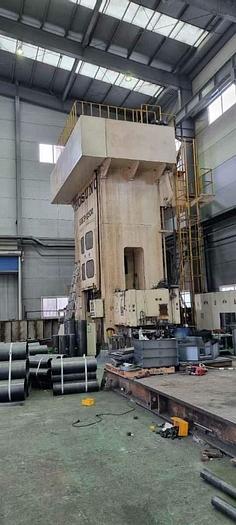

Press Cold Extrusion HOSUNG HHP-1500

Sold

Specifications

ManufacturerAbe Seiki,Japan
ModelHHP-1500
Year2008
ConditionNew
Stock NumberMA1873
Item conditionGood working condition
Capacity tons1500

Description

Capacity : 1500 tons,

Lifting capacity : 100 tons (Gross),

Stroke : 1000 mm,

Bolster size : 1200 x 1800 mm,

Die height : 2000 mm,

Speed :

Descend : 300 mm / sec,

Press : 40 mm / sec,

Ascend : 300 mm / sec,

Cylinder : ⌀620 x ⌀590 x ST.1000 - 2 set,

Bed Knockout :

Capacity : 75 tons,

Stroke : 500 mm,

Speed :

Descend : 250 mm / sec,

Ascend : 250 mm / sec,

Cylinder : ⌀200 x ⌀190 x ST.500 -1 set,

Slide Knockout :

Capacity : 10 x 5 set ,

Stroke : 130 mm,

Speed :

Descend : 250 mm / sec,

Ascend : 250 mm / sec,

Cylinder : ⌀80 x ⌀50 x ST.130. 5set,

Power : 380 V x 3 x 60 Hz,

Motor : 220 kw x 6P - 3set,

Pump (axial piston pump) : A A4VSO 500 HSK/30L - PPH13N00 - 2 set,

Pump (axial piston pump) : A A7V O 500 HD1D/63 R - VPH02 - 1 set,

Air Pressure : 5 kg/cm2,

PLC : BOSCH (MLL),

Motion Control : MAC8,

Touch : Touch Computer (PPC - 156 T) / Maker : Advantech,

Oil Tank : 4000 L,

Safety : Light Curtain, Safety Block, EMG Switch,

Hyd - Oil Cooler : Water Cooler & Ele. Heater.
