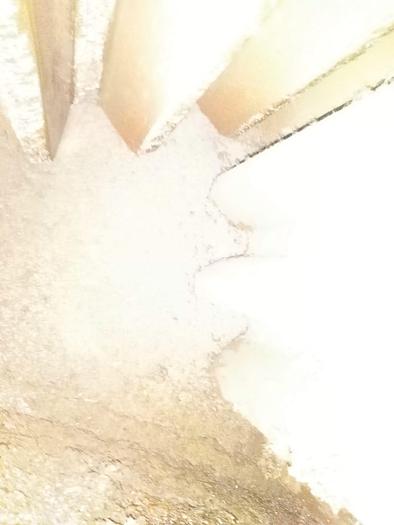

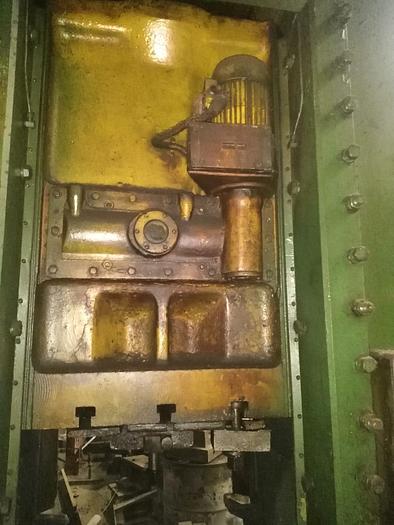

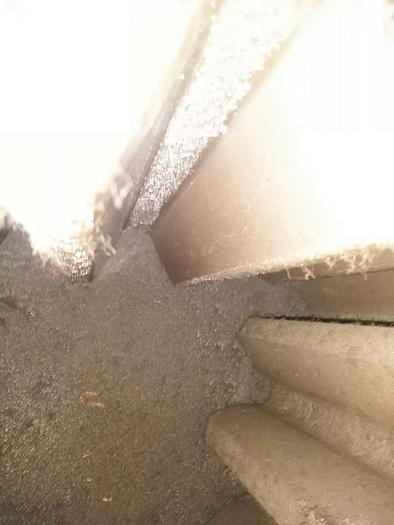

Hot Forging Line К8542

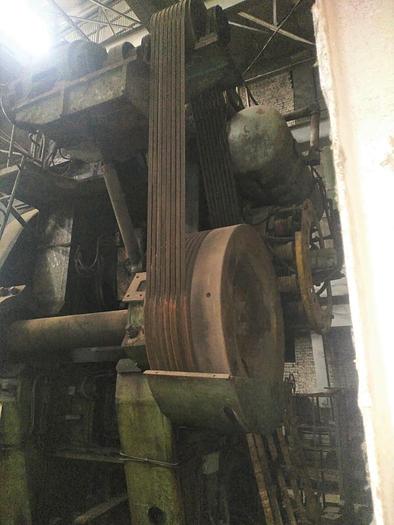

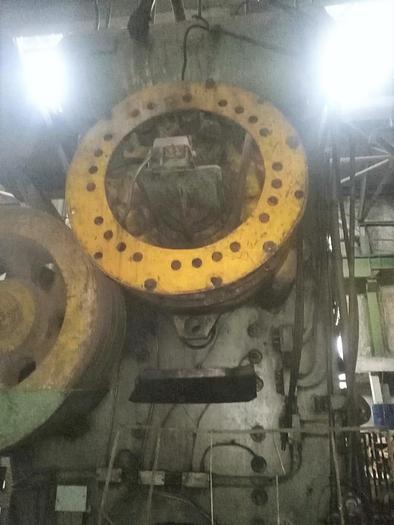

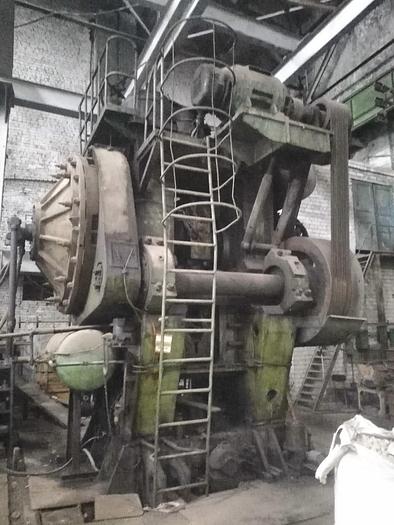

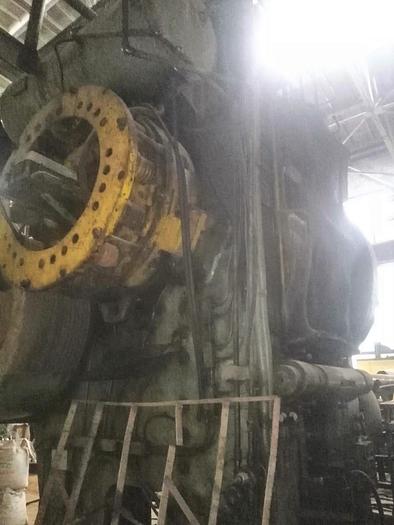

Press Hot Forging

Make: TMP Voronezh Russia

Model : К8542

Yom : 1977

Capacity : 1600 tons,

Ram Stroke : 300 mm,

Table Dimensions : 9400 x 1200 mm,

Ram Dimensions : 860 x 910 mm,

Side Opening Dimensions : 560 x 600 mm,

Maximum Distance from slider to table : 660 mm,

Table-to-ram Adjustment : 10 mm,

Distance Between Columns : 1080 mm,

Table Height Above Floor : 450 mm,

Number of Strokes per minute : 75,

Main Motor Power : 110 kW,

Voltage : 380 V,

Dimensions : 5060 x 3940 x 5125 mm,

Weight : 119 tons.

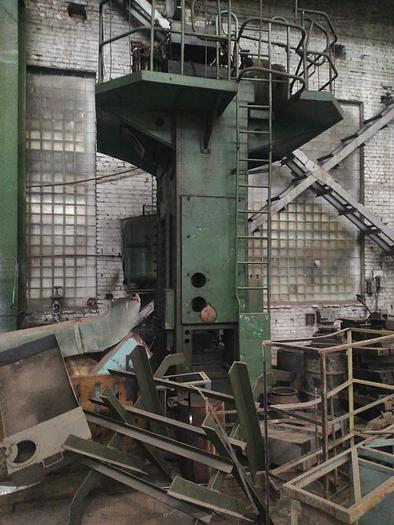

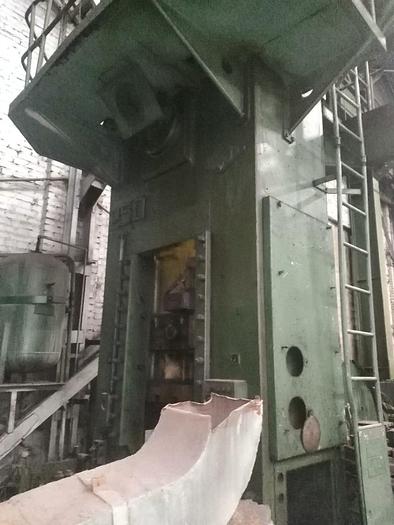

Press Trimming

Make : TMP Voronezh Russia

Model : KB95346

Yom : 1978

Capacity : 250 tons,

Ram stroke : 320 mm,

Ram continuous stroke number in minute : 32,

Ram single stroke number in minute : 24,

Ram size : 650 x 650 mm,

Table size : 800 x 800 mm,

Aperture in table : 500 x 500 mm,

Max distance between bolster and ram : 390 mm,

Adjustment : 140 mm,

Bolster size : 850 x 850,

Bolster thickness : 140 mm,

Main motor : 27 kW,

Dimensions :

Length : 3260 mm,

Width : 2970 mm,

Height : 5180 mm,

Machine weight : 25.8 tons.
