Press Forging Open Die Hydraulic Kisco

Sold

Specifications

ManufacturerAbe Seiki,Japan
ConditionUsed
Stock NumberMA1860
Item conditionGood condition
Capacity tons1100

Description

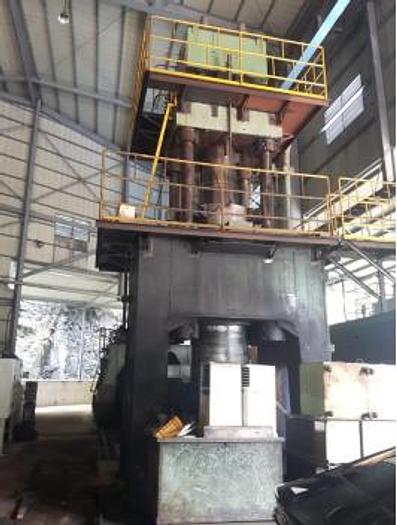

Type 4 column push down Open die Forging Press

Pressing capacity at 320 bar : 1000 tons,

Upsetting capacity at 350 bar : 1100 tons,

Return capacity : 100 tons,

Pressing speed : 60 mm/sec,

Return speed : 250 mm/sec,

Pressing stroke : 1200 mm,

Daylight : 2000 mm,

Distance between column clear width : 1500 mm x 1000 mm,

Moving table dimension : 1300 mm x 2000 mm x 2000 mm stroke,

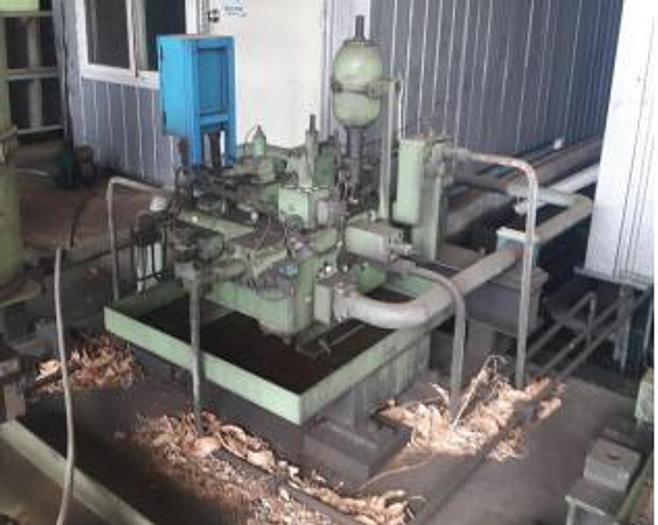

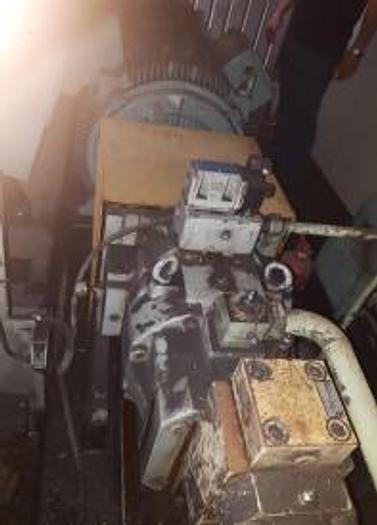

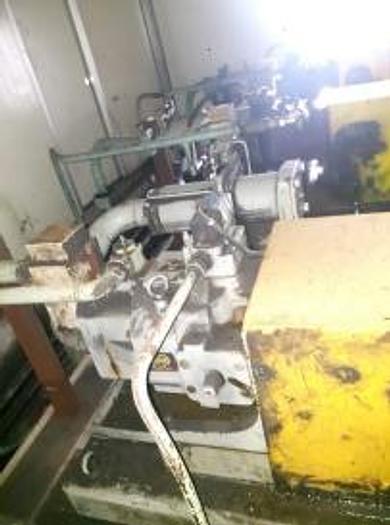

Main hydraulic pump : 2 sets x Axial piston pump, 500 L/min,

Main electric motor : 2 sets x 262.5 kW, 3.3KV, 1200 rpm,

Main tank : 6000 Liters,

Prefill tank : 1000 Liters,

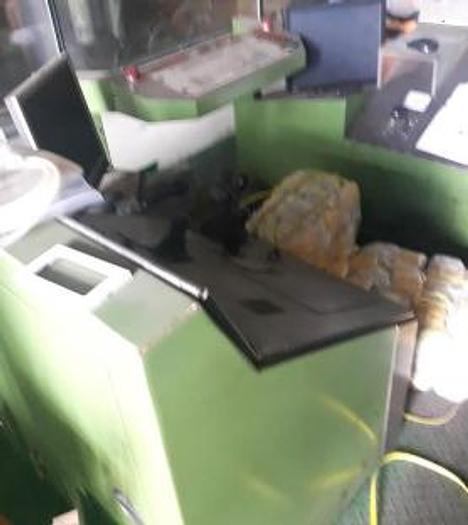

PLC Control system : Siemens S7-400, HMI.
