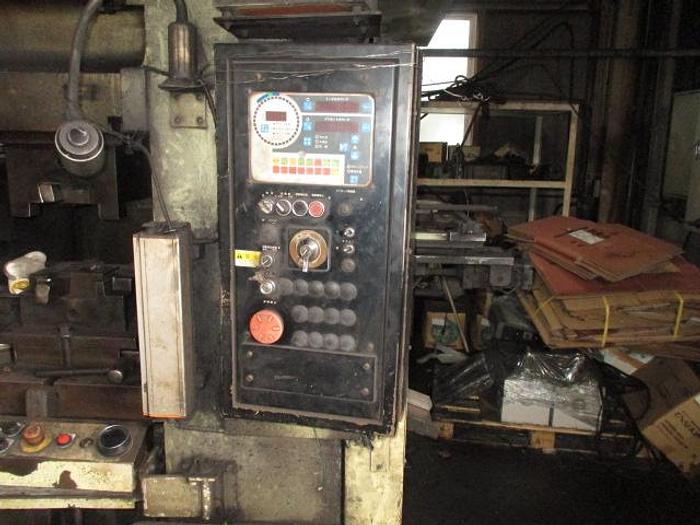

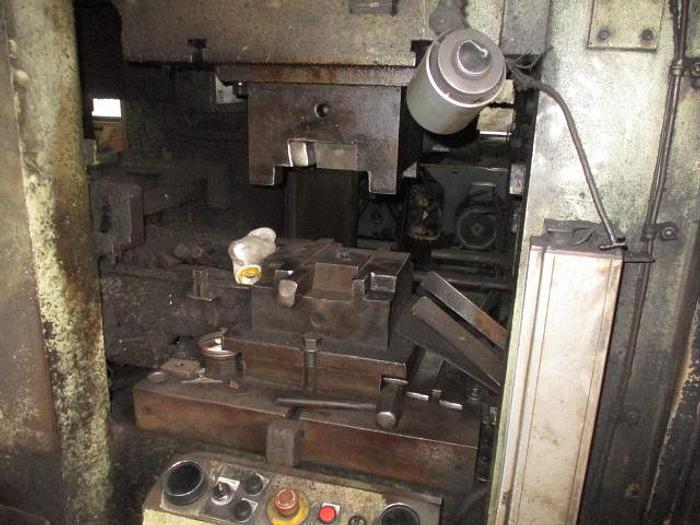

Hot Forging Line N400P-MK11B

Sold

Specifications

ManufacturerAbe Seiki,Japan
ModelN400P-MK11B
ConditionUsed
Stock NumberMA1838
Item conditionGood condition
Capacity tons2

Description

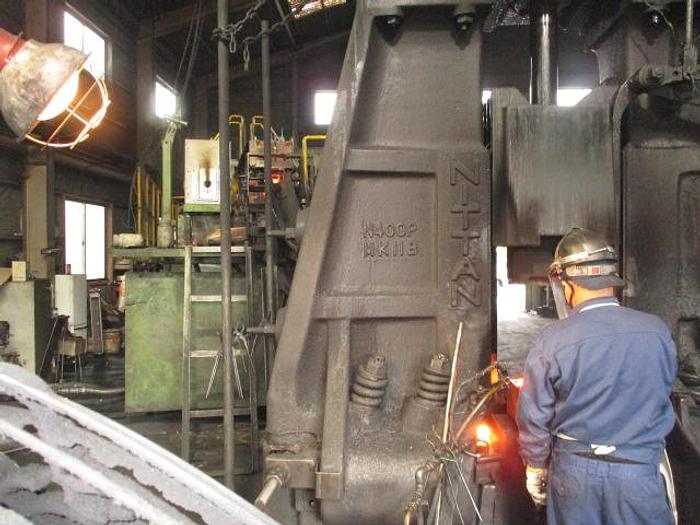

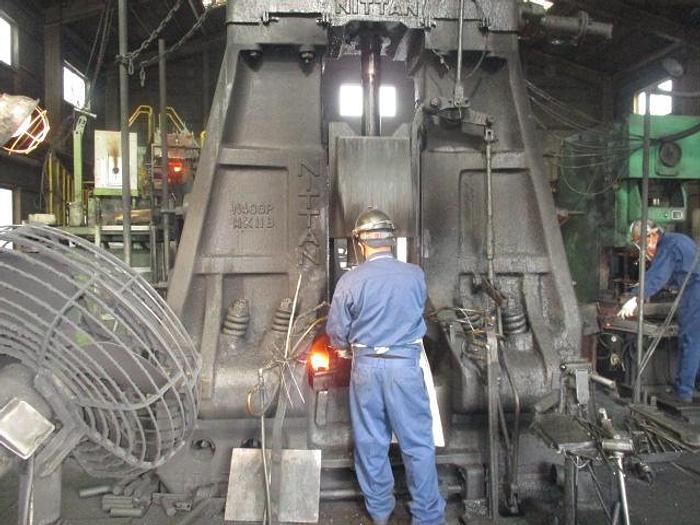

1) Air Drop Hammer

Make : Nittan,

Model : N400P-MK11B,

Capacity : 2 tons

Impact Energy : 4565 Kgs,

Dropping Weight : 1688 kgs,

Upper Mould Weight : 317 kgs,

Stroke : 650 mm,

Guide Width : 500 mm,

Ram Saw Block Minimum : 300 mm,

Ram Size : 550 x 500 mm,

Saw Block Size : 650 x 610 mm,

Saw Block Height from FL : 650 mm,

Inlet Pipe Size : 3.5B,

Exhaust Pipe Size : 4B,

Cylinder Bore : 350 mm,

Piston Rod Diameter : 130 mm,

Ram Weight : 139.9 kgs,

Anvil Weight : 27.6 tons,

Idling SPM : 86

Height Above Floor : 4535 mm,

Bolster : 5290 mm.

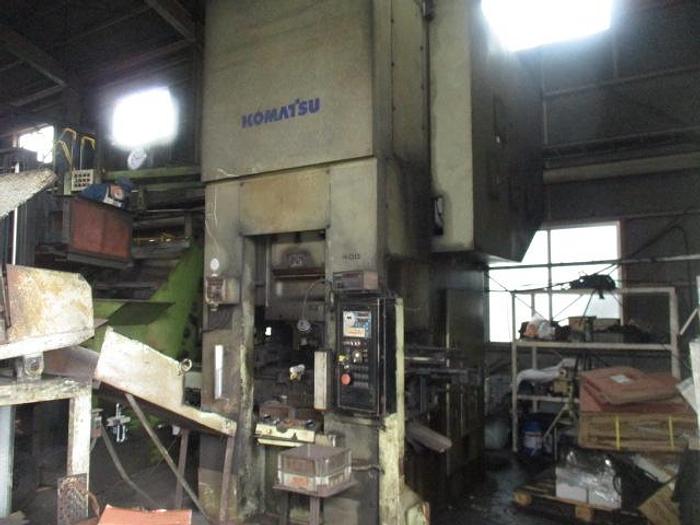

2) Knuckle Joint Press

Make : Komatsu,

Model : L1C400-2B,

Capacity : 400 tons,

Stroke : 250 mm,

Stroke per Min : 50

Die Height : 460 mm,

Adjust : 40 mm,

Slide : 700 x 500 mm,

Bolster : 700 x 600 mm.

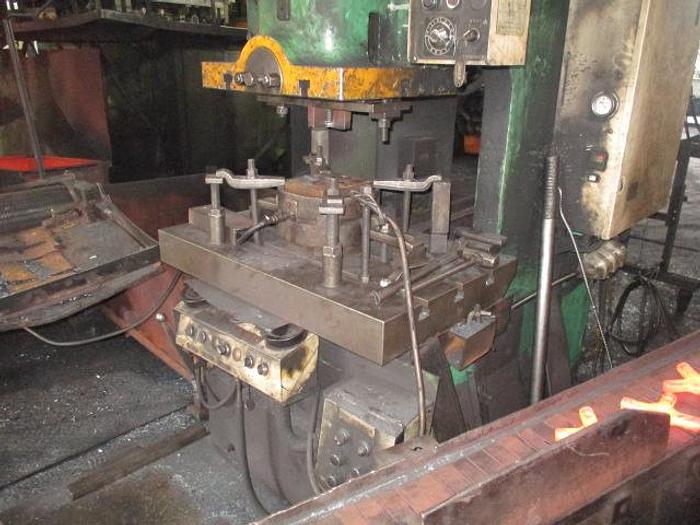

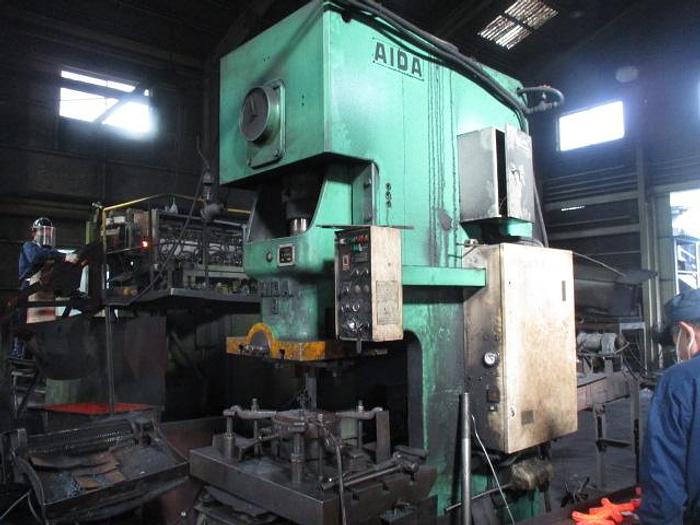

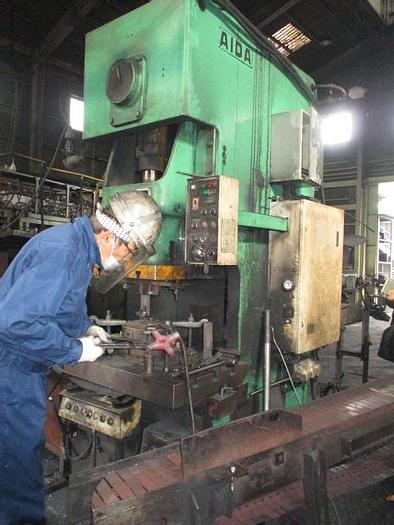

3) Trimming Press

Make : Aida,

Capacity : 100 tons.
