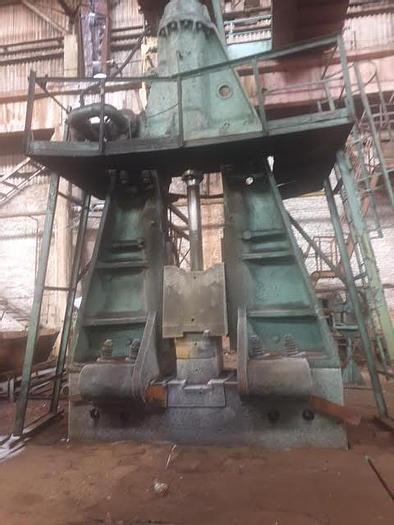

Hammer Forging Pneumatic M213

Capacity : 3.15 tons,

Impact energy 8000 kgf-m,

Max. working stroke of ram : 1250 mm,

No. of die strokes : 60 per min.,

Distance clear between guide ways : 710 mm,

Ram dimensions (F-B) : 800 mm,

Dimensions of die holder (F-B) : 1000 mm,

Min. distance from ram to die-holder : 340 mm,

Steam (air) pressure from ram to die holder : 7-9 mm,

Overall dimensions : 4100 x 1900 x 5780 mm,

Weight of anvil : 63 tons,

Total weight of hammer : 68 tons.
