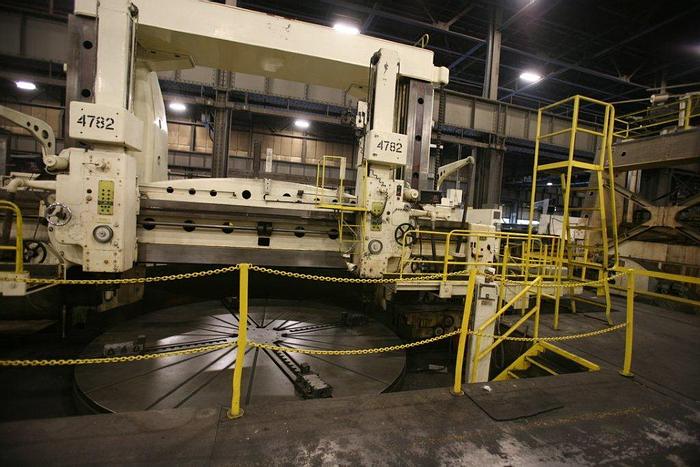

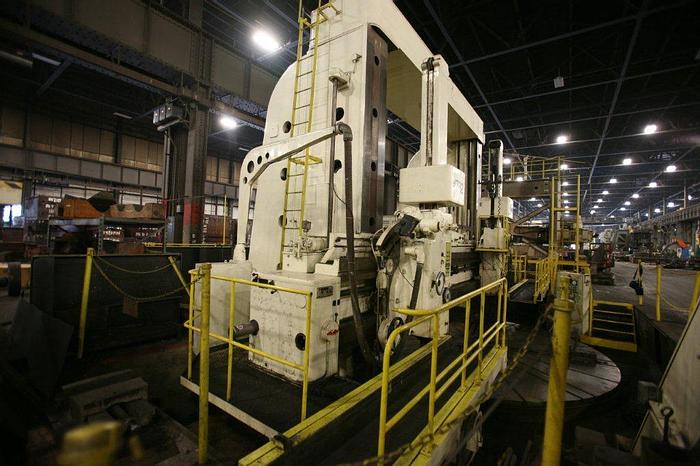

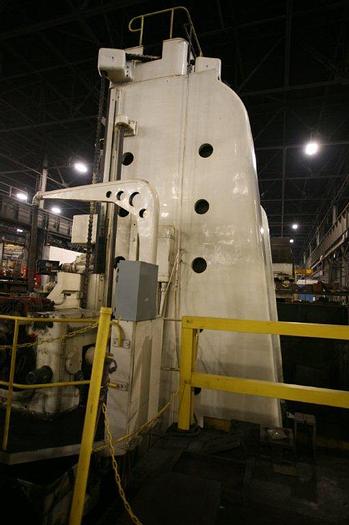

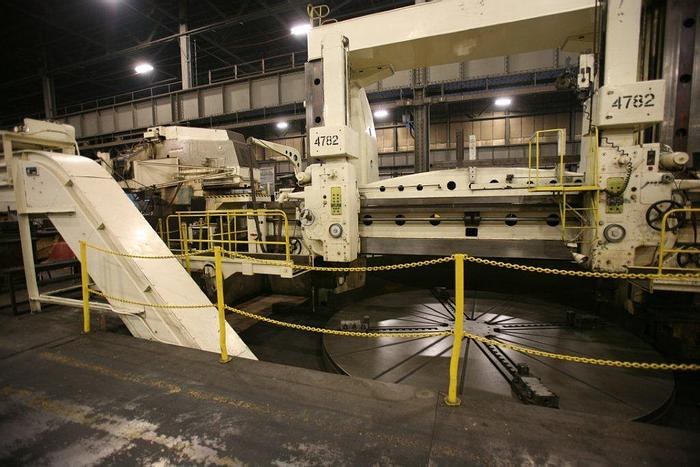

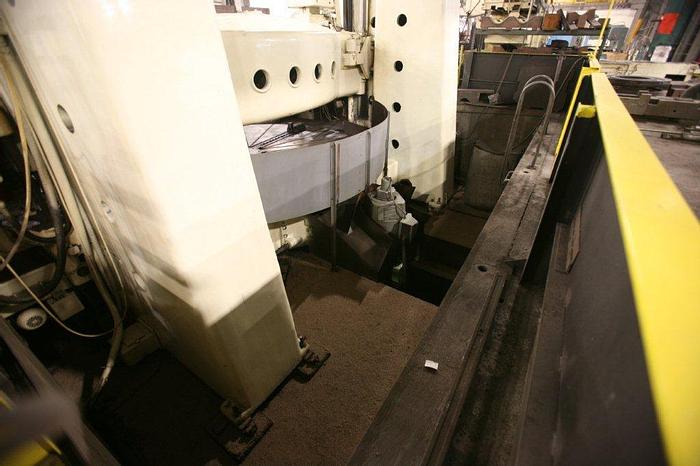

Lathe Vertical Turning Skoda SK-50A
Specifications
Manufacturer | Abe Seiki,Japan |
Model | SK-50A |
Condition | Used |
Stock Number | MA1762 |
Item condition | Good working condition |
Description

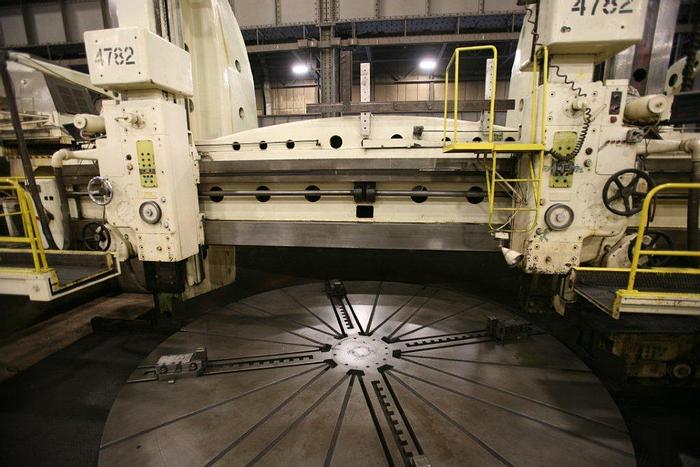

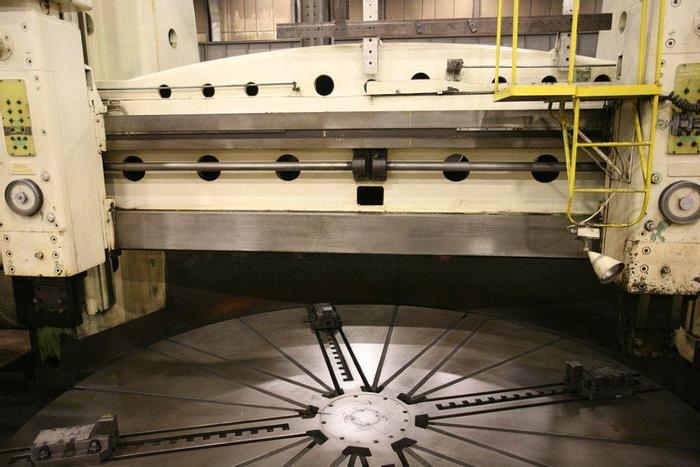

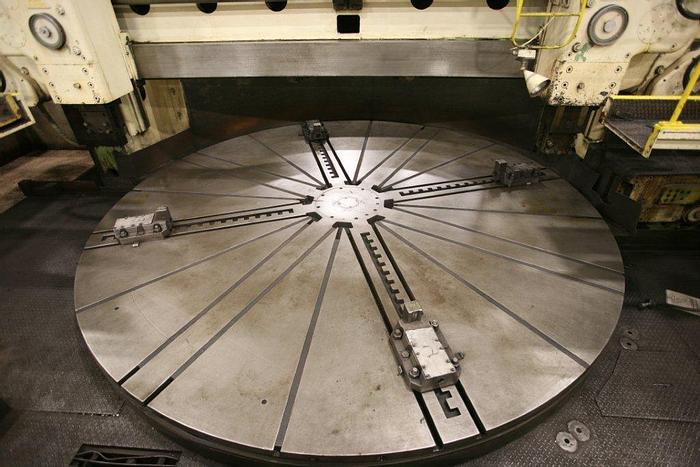

Table Diameter : 4,750 mm,
Table Weight Capacity : 45390.0 kgs,
Max Turning Diameter-Rams : 5180 mm,
Max Height Under Cross Rail : 3264 mm,
Max Height Under Toolholder : 3,050 mm,
Left Ram Vertical Travel : 55-1/8" ,
Left Ram Horizontal Travel : 116-7/8" ,
Right Ram Vertical Travel : 55-1/8" ,
Right Ram Horizontal Travel : 116-7/8",
Vertical Ram Swivel : +/- 30 to 45 Degrees ,
Distance between the columns : 204-3/4” ,
Table Speeds (Inf. Variable) : 0.33 - 32.8 RPM
Feeds (15) : 0.005 - 11 mm/rev,
Dimensions:
Front to back: 8,370.0 mm,
Left to right: 12,598.0 mm,
Height : 9,881.0 mm,
Machine Weight :134.0 Tons (295,000 Lbs),
Equipped with:

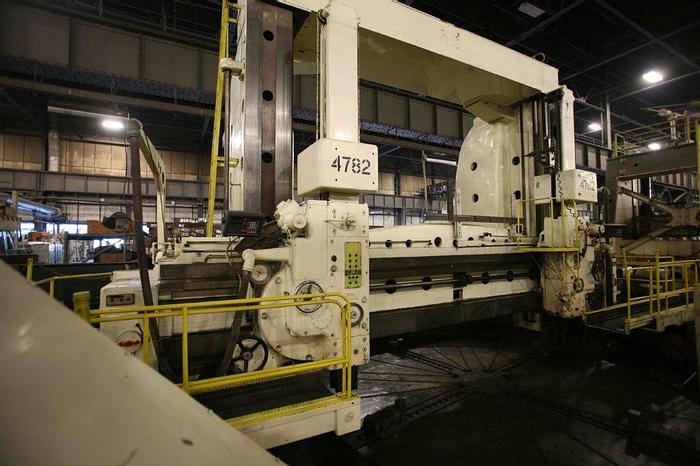

• (2) Swivelling Ram Heads
• Side Head
• 2-Axis Newall DP7 Digital Readout System
• Threading Attachment Inch/Metric
• Electronic Tracer
• Conical Turning
• Constant Surface Cutting Speed

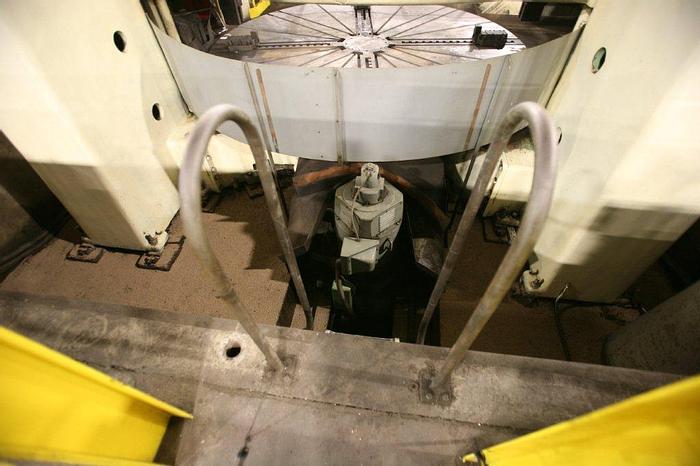

• Hydrostatic Table Bearings

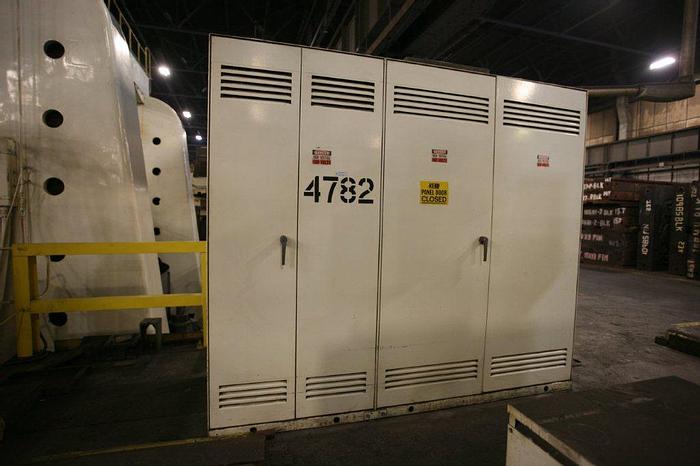

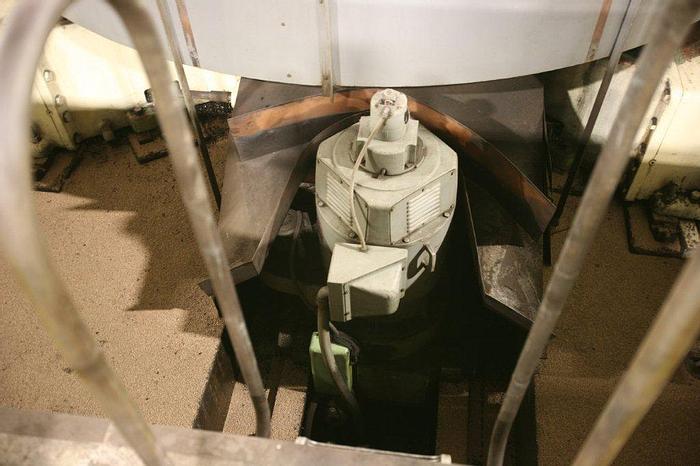

• 80 kW Table Drive GE Variable Speed Drive

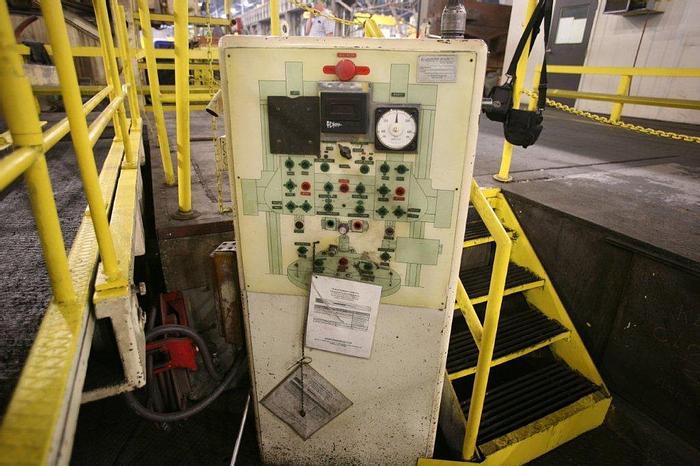

• Pendant Control
With Side Head & Two Swivelling Ram Heads, Hydrostatic Table Bearings.
Installed new 1972 in present plant in Massachusetts, Built in Czech Republic.
