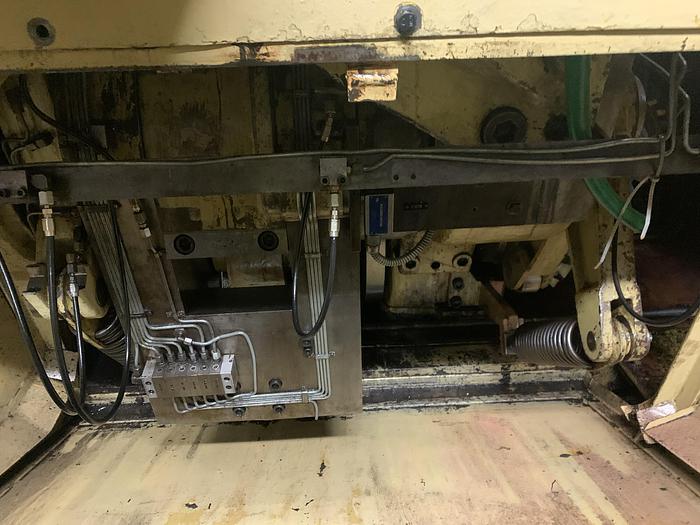

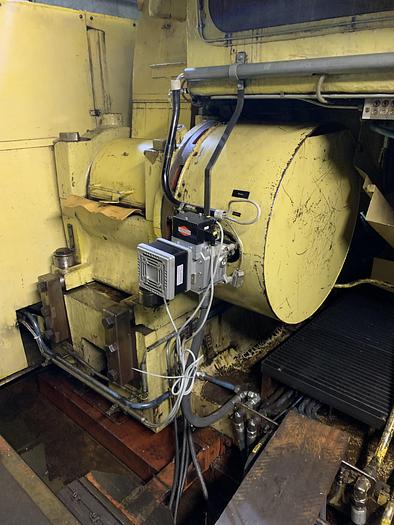

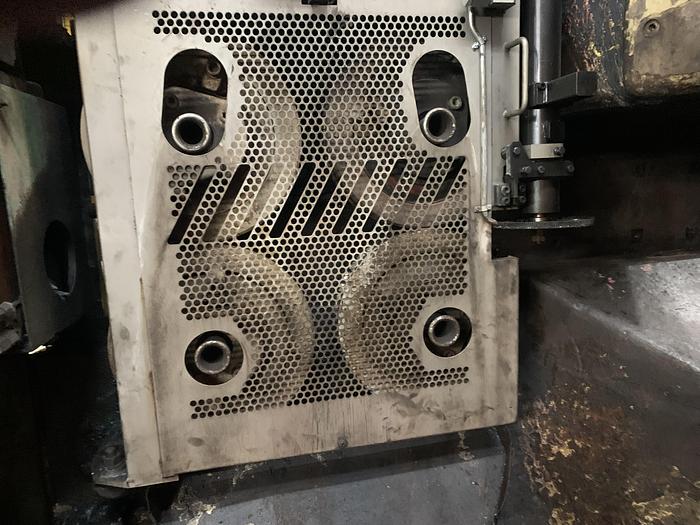

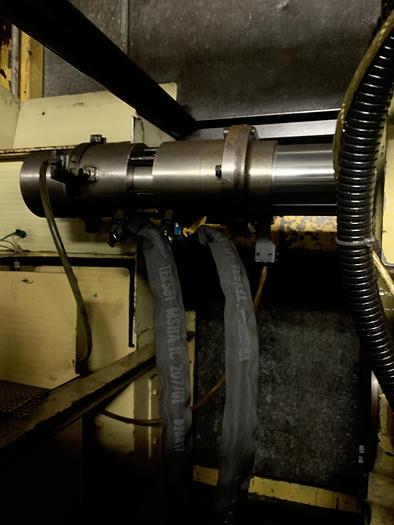

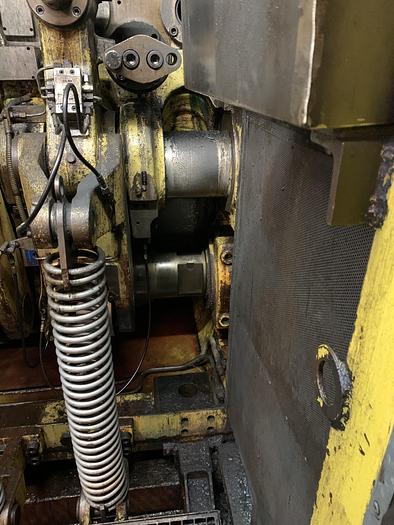

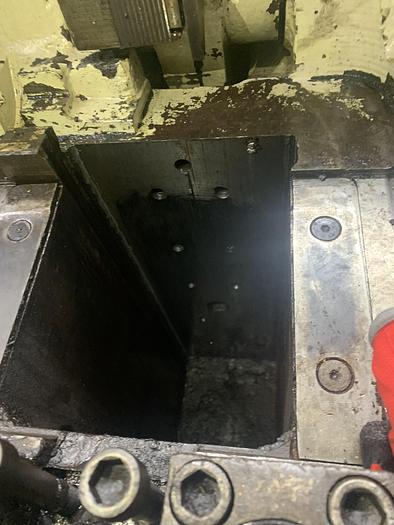

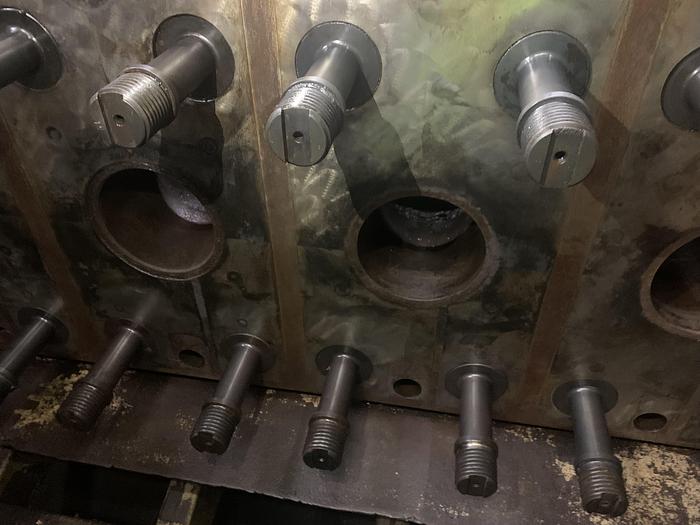

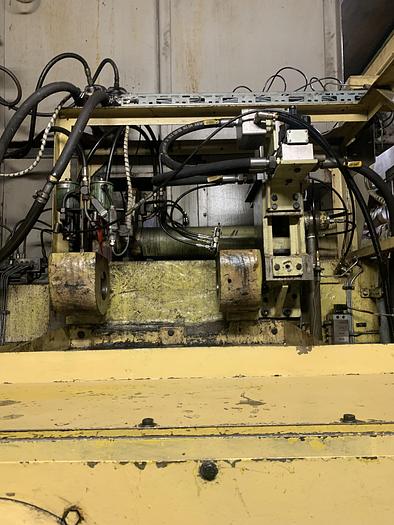

Part Former Hot AMP70
Specifications
Manufacturer | Abe Seiki,Japan |
Model | AMP70 |
Year | 1978 |
Condition | Used |
Stock Number | MA1759 |
Item condition | Excellent condition |
Capacity tons | 1200 |
Description
Forging tonnage capacity : 1200 tons,

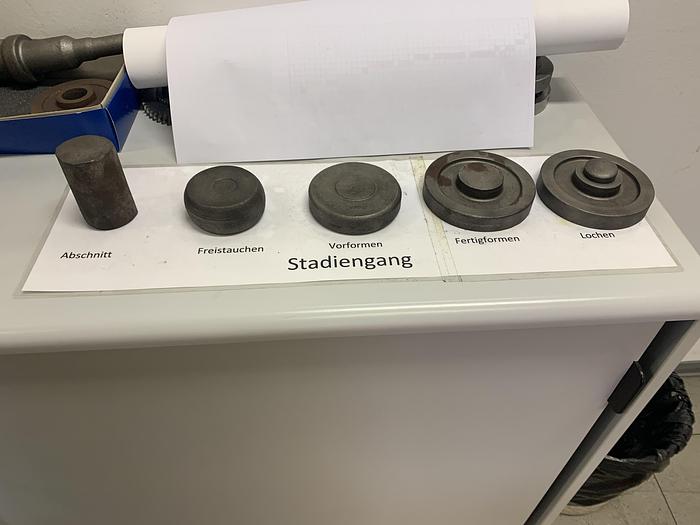

Forming stations : 4 no,
Max outer part dia : 145 mm,
Max outer dia combo blanks : 122 mm,
Bar dia range : 36 - 75 mm,
Initial weight : 0.4-5.0 kg,
Cutoff length range : 45 - 135 mm,
Max across the flats : 105 mm,
Die center distance : 320 mm,
Die dia 1st/2nd, 3rd & 4th : 200 / 270 mm,
Stroke rate : 50-80 per min,
Machine weight : 175 tons.

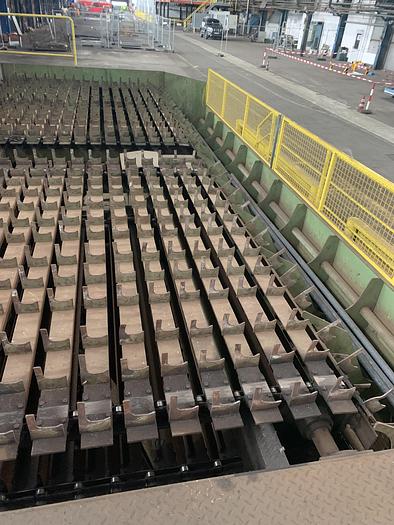

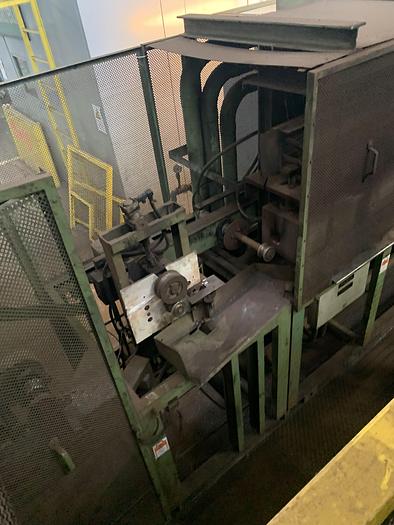

1.Bar rack for incoming material (with possibility to use bars with the length 3 and 6
meters; by Hatebur specs the maximum diameter of bars is 65 mm, but it was used
maximum 50 mm).
2. Elotherm induction heater with 3,000 kWt capacity.
3. Water-scale and water-oil separation systems for induction heater and hot former.
4. Hatebur hot former AMP70 with nominal force 1,200 metric tons.
5. System of unloading conveyors,

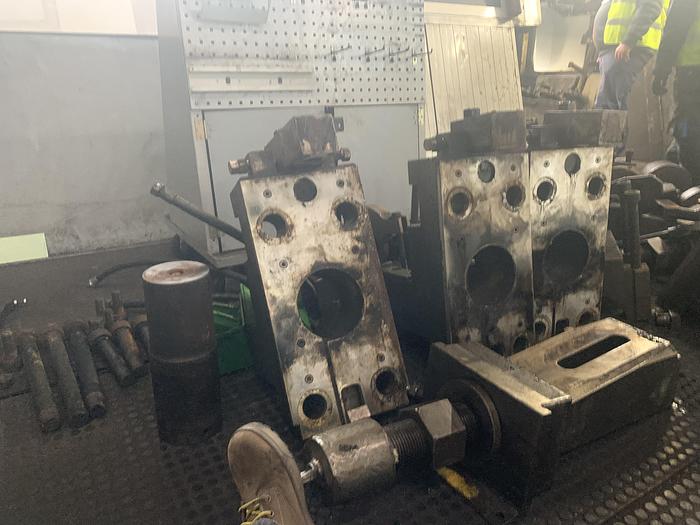

6. Besides that, in the list of sale is included a set of spare parts including the new shear
ram.

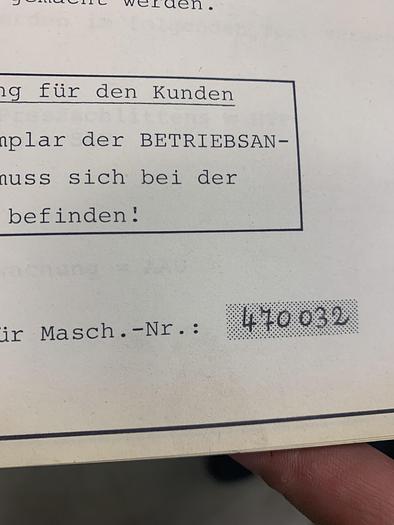

Machine No. : 470032.
