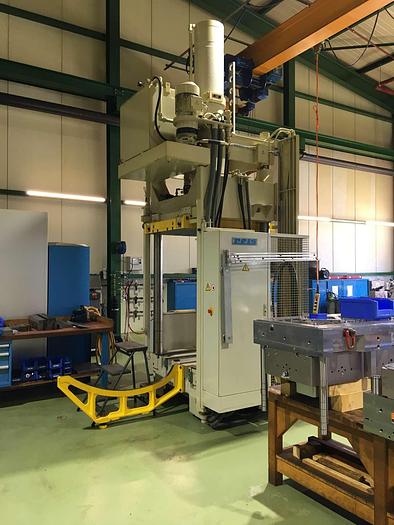

Press Die Spotting Hydraulic TUS 100-100
Sold
Specifications
Manufacturer | Abe Seiki,Japan |
Model | TUS 100-100 |
Year | 1999 |
Condition | Used |
Stock Number | MA1744 |
Item condition | Good condition |
Capacity tons | 100 |
Description
Double column press / Straight side press
Pressure total: 100 tons,
Daylight: 1400 mm,
Table surface area : 1300 x 1000 mm,
Slide area: 1300 x 1000 mm,
Ejector Force: 35 kN,
max. capacity of swivelling ram plate: 40 kN,
Die Weight on table max.: 80 kN,
max. capacity of tilting table: 50 kN,
Oil volume: 200 l,
Required power: 10 kW,
Dimensions (L x W x H) : 3950 x 2300 x 4500 mm,
Distance between the columns F -B:1050 mm
Weight of machine approx.: 11 ton.
