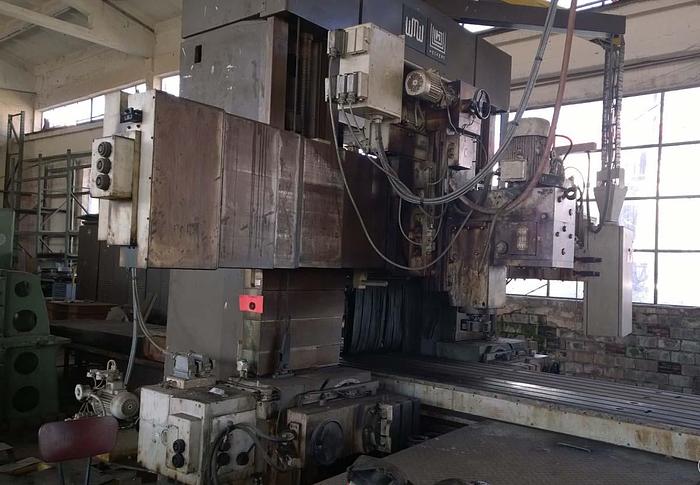

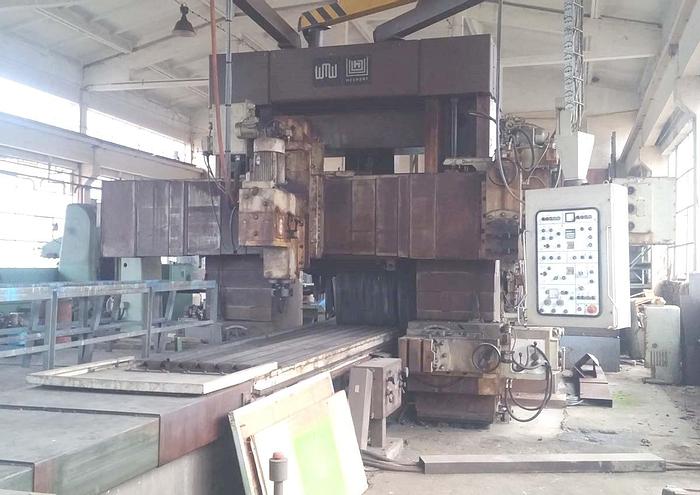

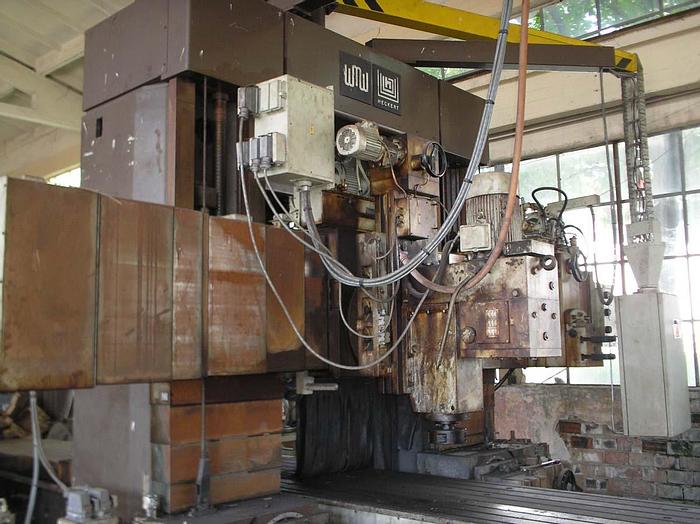

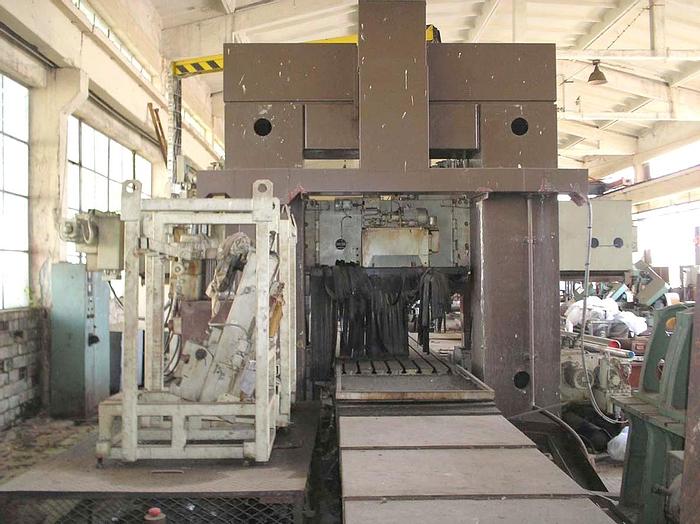

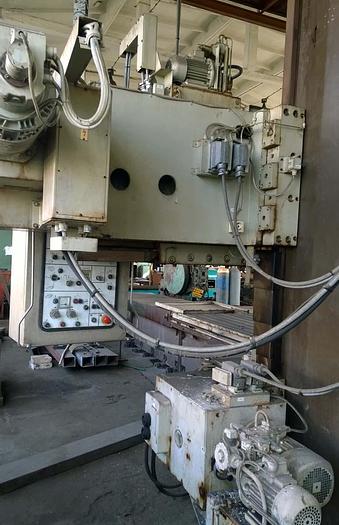

Plano Miller HZFS

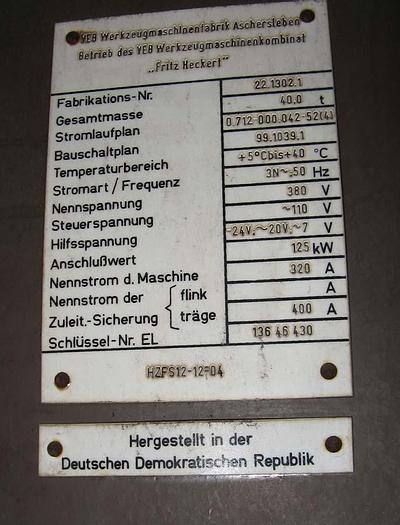

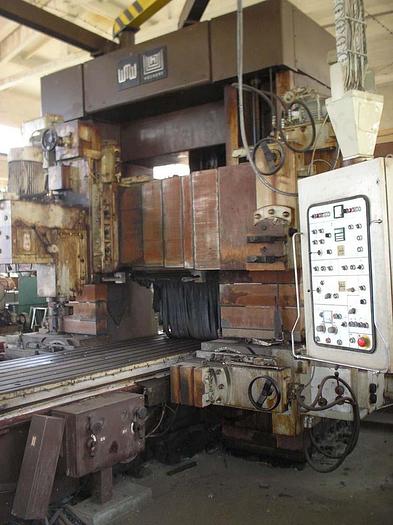

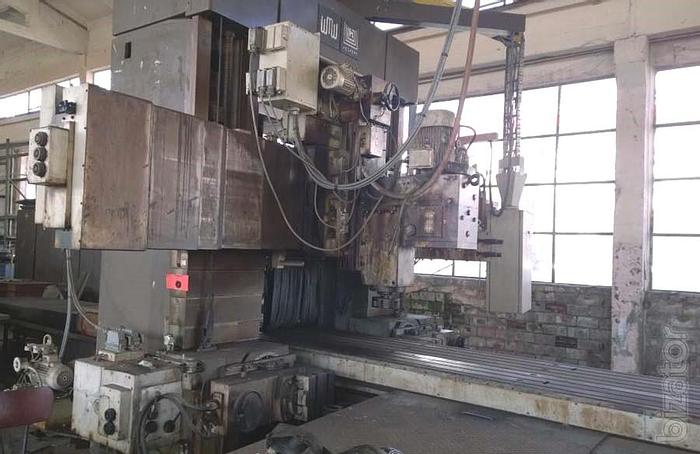

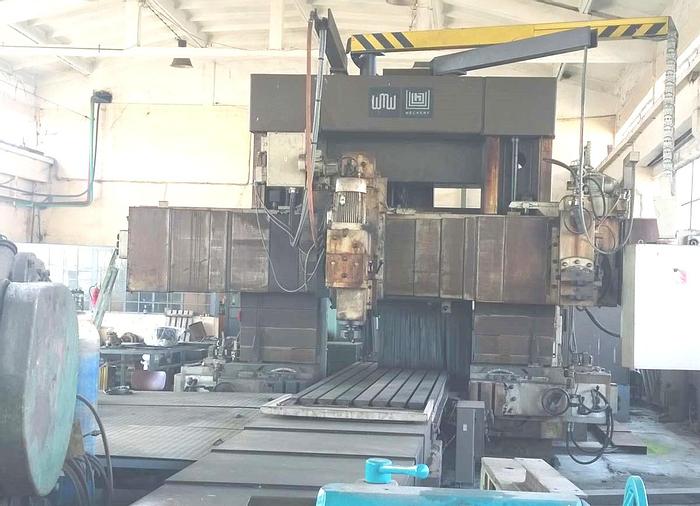

Heckert Aschersleben HZFS 12-12-04 Plano, Milling and Grinding machine

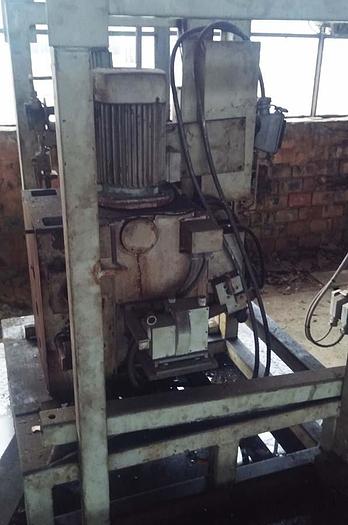

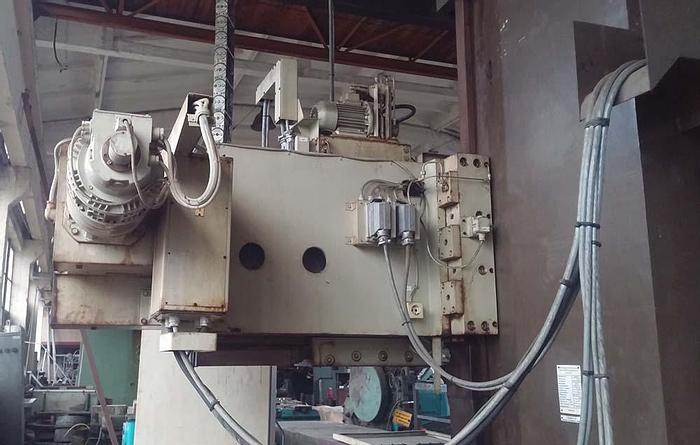

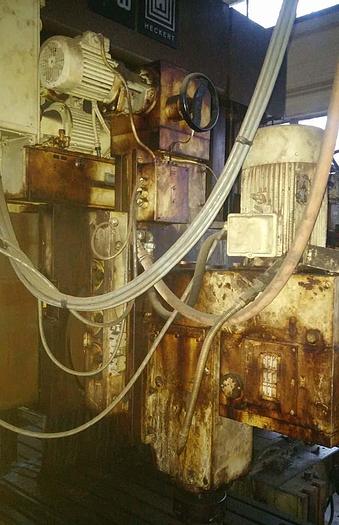

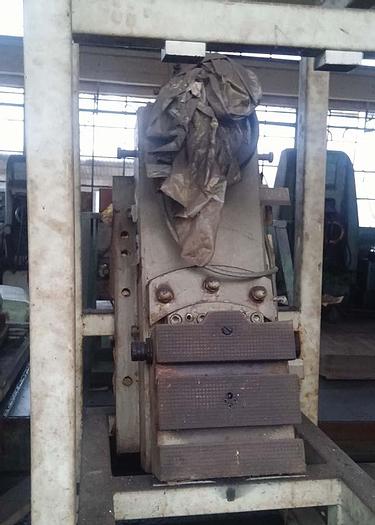

1 x Milling head, 1 x Grinding head, 3 x Plane Heads (2 x Side plane heads)

Working length : 4000 mm,

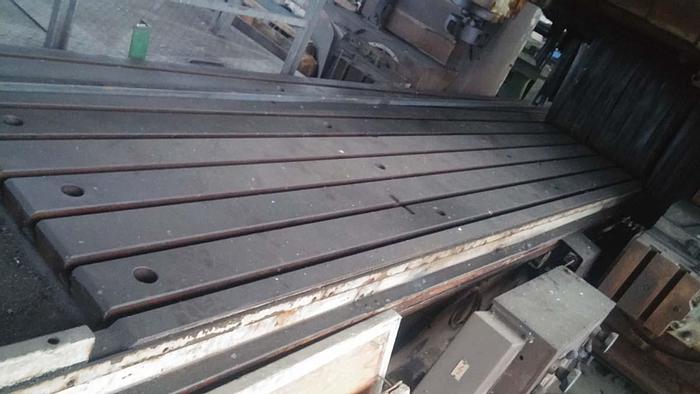

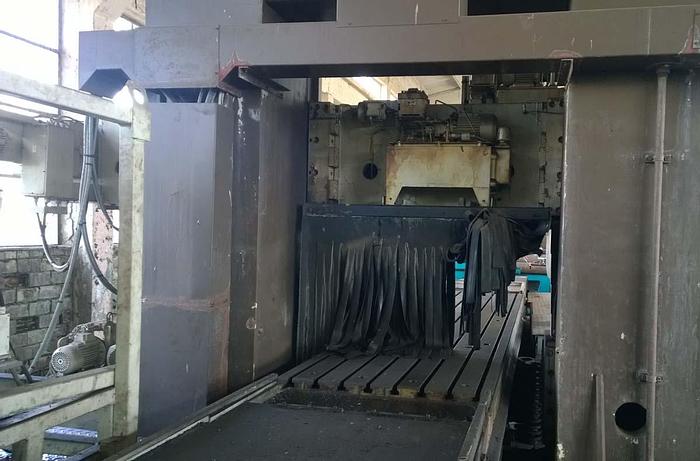

Table : 4240 x 1000 mm,

Working width :

-Plano : 1250 mm,

-Milling/Grinding : 1000 mm,

Working height:

-Plano : 1250 mm,

-Milling/Grinding : 1140/1050 mm,

Distance Between columns : 1590 mm,

Passage height : 1270 mm,

Stroke length: the smallest (at v=5,6 m/min) 1000, the largest : 4800 mm

T-grooves according to TGL 3045 number 8, distance : 125 mm

Max. workpiece weight : 8000 kg

Table speed (continuous) (run speed forward and reverse) : 5,6…80 m/min.

Cross bar Feed : 15…560 mm/min.

Machine dimensions : 12900 x 5850 x 4100 mm,

Weight : 40 tons.
