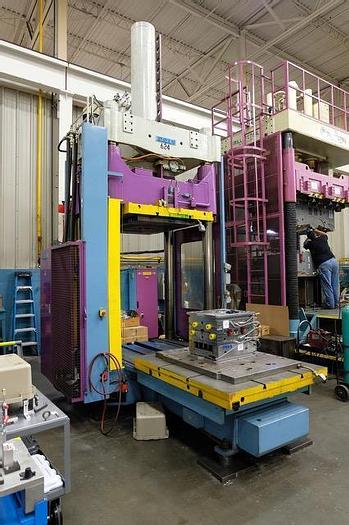

Press Die Spotting Hydraulic TUS-130-100
Sold
Specifications
Manufacturer | Abe Seiki,Japan |
Model | TUS-130-100 |
Year | 1997 |
Condition | Used |
Serial Number | 14727 |
Stock Number | MA1683 |
Item condition | Good working condition |
Capacity tons | 112 |
Description
Catalog Specifications:
Pressing Force: 112 US ton (1000 kN)
Retraction Force: 45.9 ton (450 kN)
Stroke: 1701 mm,
Daylight Opening: 1701 mm,
Clamping Platen Area (FB x LR): 1600 x 1295 mm,
Distance Between Posts (FB x LR) : 1358 x 899 mm,
Equipped With:
Swing Down Ram (180 degrees)
Sliding Bolster

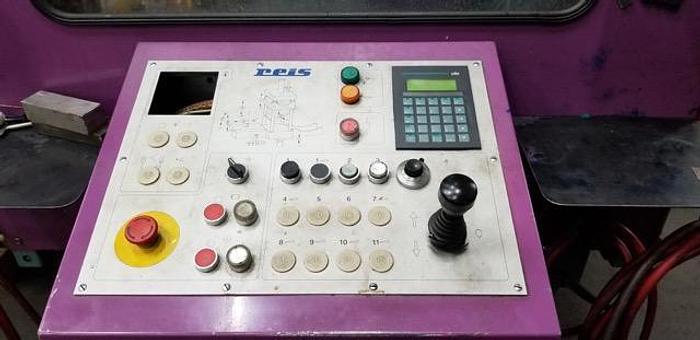

Free Standing Control Console
Overall Height: 5613 mm +/- .
